Imitation Learning - ACT

Imitation learning is a machine learning approach where a model is trained to mimic expert behavior by observing and replicating demonstrations, enabling it to perform tasks similarly to the expert. ACT is an action chunking policy with Transformers, an architecture designed for sequence modeling, and train it as a conditional VAE (CVAE) to capture the variability in human data. It significantly outperforms previous imitation learning algorithms on a range of simulated and real-world fine manipulation tasks.

We have built an imitation learning pipeline for ACT, which can be used to train and evaluate the ACT model on different tasks both in simulation and real robot environment. In this sample pipeline, we provided source code optimized by Intel® OpenVINO™ to accelerate the process.

In this tutorial, we will introduce how to setup ACT pipeline.

Prerequisites

Please make sure you have finished setup steps in Installation & Setup.

Installation

ALOHA real robot environment setup (Optional)

Follow the stationary ALOHA guide to build real robot platform.

Virtual environment setup

  1. Create a Python 3.10 virtual environment with the following command:

$ sudo apt install python3-venv
$ python3 -m venv venv-act

  1. Activate the virtual environment with the following command:

$ source venv-act/bin/activate

Install Intel® OpenVINO™

Install the Intel® OpenVINO™ with the following command:

$ pip install openvino==2025.2.0

Dependencies setup

Install the dependencies with the following command:

$ pip install torch==2.7.1 torchvision==0.22.1 pyquaternion==0.9.9 pyyaml==6.0 rospkg==1.5.0 pexpect==4.8.0 mujoco==3.2.6 dm_control==1.0.26 matplotlib==3.10.0 einops==0.6.0 packaging==23.0 h5py==3.12.1 ipython==8.12.0 opencv-python==4.10.0.84 transformers==4.37.0 accelerate==0.23.0 huggingface-hub==0.24.7

Install ACT package

The Embodied Intelligence SDK provides optimized source code for Intel® OpenVINO™. To get the source code from /opt/act-ov/ with the following command:

$ sudo apt install act-ov
$ sudo chown -R $USER /opt/act-ov/

After installing the act-ov package, follow the README.md file in /opt/act-ov/ to set up the complete source code environment.

Install DETR

Install the DETR with the following command:

$ cd <act_SOURCE_CODE_PATH>/detr
$ pip install -e .

Run pipeline

Inference

  1. You can download our pre-trained weights from this link: Download Link. The command of training is the same as above, but you need to set the argument --ckpt_dir to the path of the pre-trained weights.

  2. Convert the model checkpoint to OpenVINO IR.

ov_convert.py is a script provided to convert the PyTorch* model to OpenVINO IR. You can find the script in the act-ov directory, and see the usage with the following command:
$ cd <act_SOURCE_CODE_PATH>
$ python3 ov_convert.py -h

For example, you can convert the model with the following command:

$ python3 ov_convert.py --ckpt_path <your_ckpt_path> --height 480 --weight 640 --camera_num 4 --chunk_size 100

Attention

Please make sure the arguments --chunk_size, --kl_weight, --hidden_dim, --dim_feedforward, --camera_num are the same as the training arguments.

  1. The pipeline supports configurations with up to four cameras. You can modify the constants.py file in the source directory to define the number of cameras. Below are examples of configurations for four cameras and one camera:

# In <act_SOURCE_CODE_PATH>/constants.py
SIM_TASK_CONFIGS = {
    'sim_insertion_scripted': {
        'dataset_dir': DATA_DIR + '/sim_insertion_scripted',
        'num_episodes': 50,
        'episode_len': 400,
        'camera_names': ['top', 'angle', 'left_wrist', 'right_wrist']
    },
}

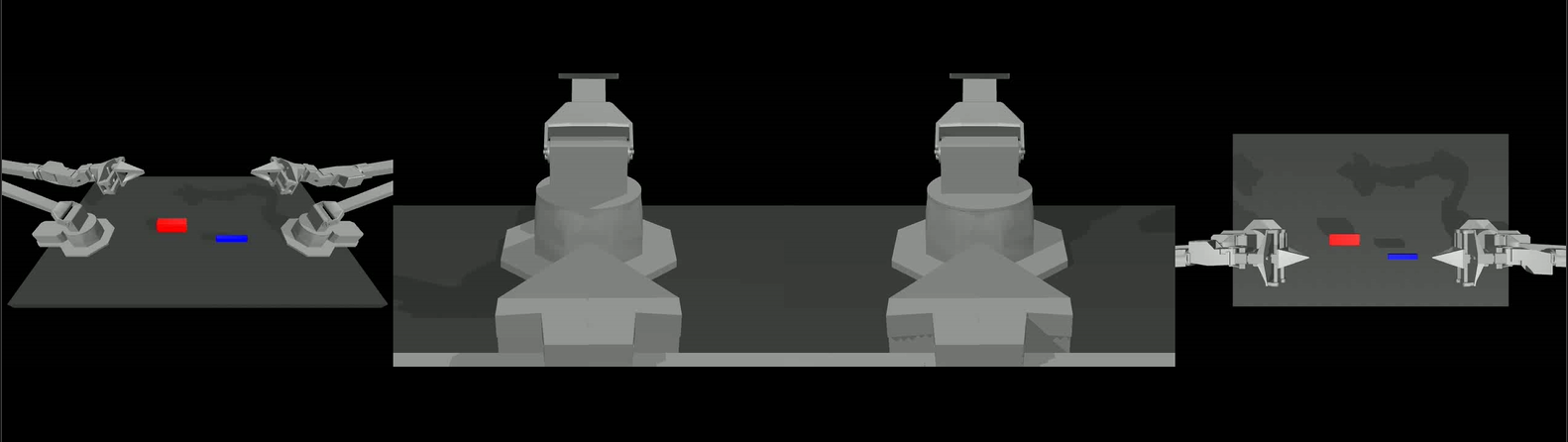

Below is a camera viewer showcasing four different camera perspectives, the left one is the angle camera, and the right one is the top camera. The middle two are the left and right wrist cameras, respectively.

../../_images/act-sim-cameras.png

  1. Evaluate the policy with the following command:

$ python3 imitate_episodes.py --task_name sim_insertion_scripted --ckpt_dir <ckpt dir> --policy_class ACT --kl_weight 10 --chunk_size 100 --hidden_dim 512 --batch_size 8 --dim_feedforward 3200 --num_epochs 2000  --lr 1e-5 --seed 0 --device GPU --eval

Note

--eval is used to evaluate the policy. --device is used to set the device to CPU or GPU. --temporal_agg can be used to enable the temporal aggregation algorithm. --onscreen_render can be used to enable onscreen rendering. MUJOCO_GL=egl environment variable can be set to enable EGL rendering, which provides better performance in simulation scenarios.

When the --onscreen_render parameter is enabled, the successful inference result appears as follows:

../../_images/act-sim-insertion-demo.gif

Training (Optional)

Attention

Please refer to the ALOHA paper for instructions on setting up a machine with the training environment.

  1. Generate 50 episodes with the following command:

# Bimanual Insertion task
$ python3 record_sim_episodes.py --task_name sim_insertion_scripted --dataset_dir <data save dir> --num_episodes 50

  1. Visualize the episode with the following command:

$ python3 visualize_episodes.py --dataset_dir <data save dir> --episode_idx 0

  1. Train ACT with the following command:

# Bimanual Insertion task
$ python3 imitate_episodes.py --task_name sim_insertion_scripted --ckpt_dir <ckpt dir> --policy_class ACT --kl_weight 10 --chunk_size 100 --hidden_dim 512 --batch_size 8 --dim_feedforward 3200 --num_epochs 2000  --lr 1e-5 --seed 0
