TSN Endstation Netlink Diagnostic Workflow

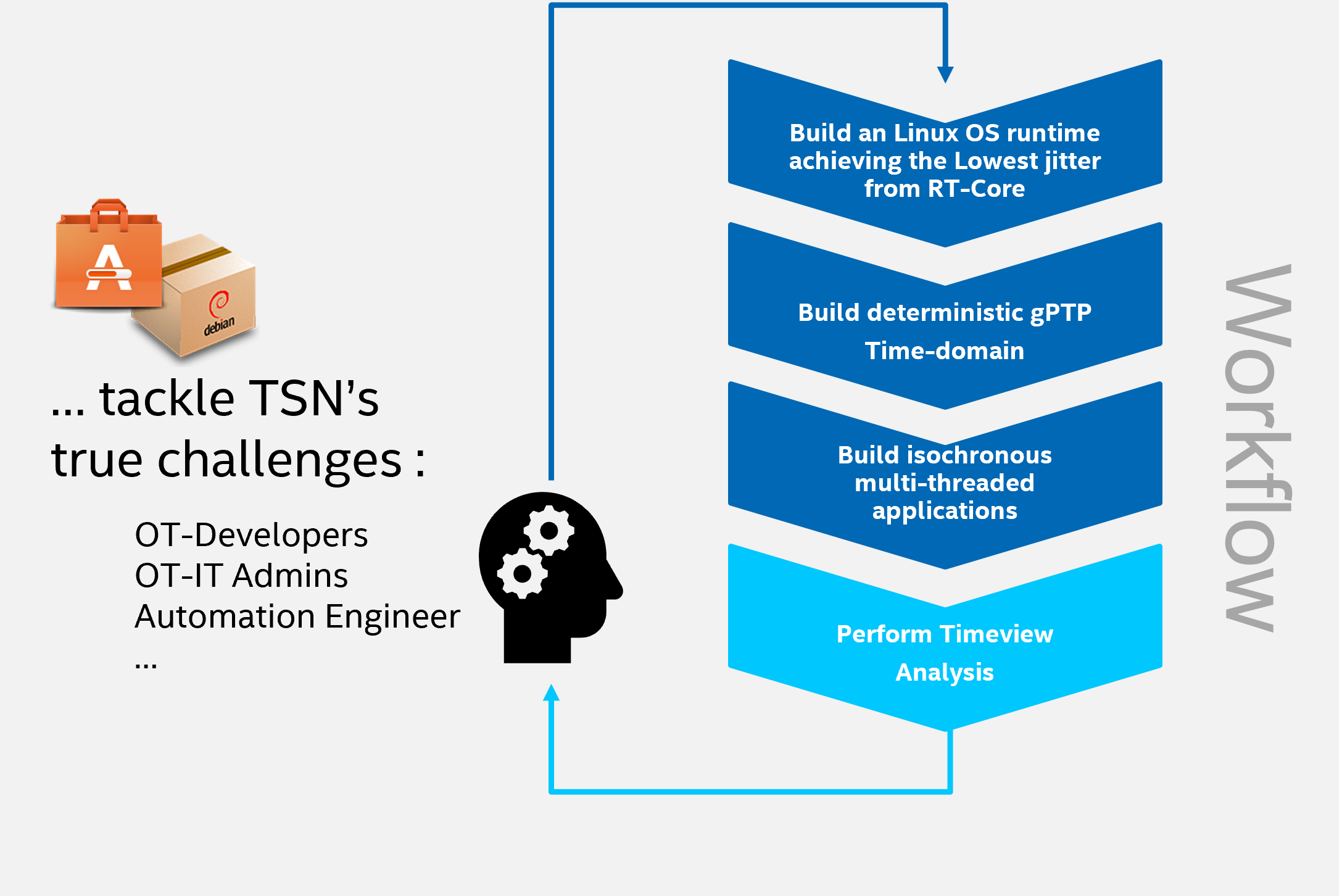

The following ECI workflow illustration provides the means to address many challenges IEEE std 802.1Q-2018 support for industry-graded Debian Linux products.

• Identify and mitigate the traps that might occur when exercising multi-threaded isochronous applications on a Real-time Preemptive Linux OS runtime.

• Remove misleading working assumptions regarding software versus hardware, by illustrating it in a time-view.

• Troubleshoot the time-division underlying Quality of Server (QoS) mechanisms in a multi-stack (for example, IEEE 60802, UAFX Controller Profile OPC 10000-084) and multi-nodes network environments.

• Sanitize time-synchronized industrial applications.

• Acknowledge Intel® Ethernet controllers hardware offload capabilities and Linux driver functionality.

The following section is applicable to:

ECI Deb PackagesECI RPM Packages

Install from individual Deb package

Install the following components from the ECI repository. Setup the ECI repository, then run following command to install this component:

$ sudo apt install catapult checkclocks

Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
0 upgraded, 0 newly installed, 2 reinstalled, 0 to remove and 0 not upgraded.
Need to get 996 kB of archives.
After this operation, 0 B of additional disk space will be used.
Get:1 http://wheeljack.ch.intel.com/apt-repos/ECI/bookworm isar/main amd64 catapult amd64 3.2-0eci1 [981 kB]
Get:2 http://wheeljack.ch.intel.com/apt-repos/ECI/bookworm isar/main amd64 checkclocks amd64 1.0-0eci1 [15.0 kB]
Fetched 996 kB in 0s (12.2 MB/s)
debconf: delaying package configuration, since apt-utils is not installed
(Reading database ... 115190 files and directories currently installed.)
Preparing to unpack .../catapult_3.2-0eci1_amd64.deb ...
Unpacking catapult (3.2-0eci1) over (3.2-0eci1) ...
Preparing to unpack .../checkclocks_1.0-0eci1_amd64.deb ...
Unpacking checkclocks (1.0-0eci1) over (1.0-0eci1) ...
Setting up catapult (3.2-0eci1) ...
Setting up checkclocks (1.0-0eci1) ...

Start the following systemd services to serve the Catapult REST API from the target on port 8000:

$ systemctl enable catapult-restapi@8000.service && systemctl start catapult-restapi@8000.service && systemctl status catapult-restapi@8000.service

? catapult-restapi@8000.service - Catapult traceviewer REST API service
   Loaded: loaded (/lib/systemd/system/catapult-restapi.service; disabled; vendor preset: enabled)
   Drop-In: /usr/lib/systemd/system/service.d
            └─10-override-protect-proc.conf
   Active: active (running) since Thu 2018-08-30 04:50:28 UTC; 7s ago
   Main PID: 32902 (restapi_start.p)
      Tasks: 1 (limit: 9164)
   Memory: 36.3M
      CPU: 1.597s
   CGroup: /system.slice/catapult-restapi.service -port 8000
            └─32902 /usr/bin/python3 /usr/share/catapult/restapi_start.py

Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]: *** Getting all DMI data into a XML document variable
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]: [1535604629.925063] short-list available kernel trace events...
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]: [1535604629.9325438] short-list available kernel perf PMU hw-events...
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]: [1535604630.0594482] short-list available kernel filter functions...
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]:  * Serving Flask app "restapi_start" (lazy loading)
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]:  * Environment: production
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]:    WARNING: This is a development server. Do not use it in a production deployment.
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]:    Use a production WSGI server instead.
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]:  * Debug mode: on
Aug 30 04:50:30 eci-intel-23f0 restapi_start.py[32902]:  * Running on http://0.0.0.0:8000/ (Press CTRL+C to quit)

The check_clocks Tool

The check_clocks tool is used to check time-synchronization between PTP Hardware Clocks (PHC), Linux CLOCK_TAI, and CLOCK_REALTIME system time.

Tools	Version	Source
Measure Ethernet L2-PTP vs CLOCK_TAI time synchronization drift	0.2.0	https://tsn.readthedocs.io/_downloads/f329e8dec804247b1dbb5835bd949e6f/check_clocks.c (with eci patchset)

Usage

In the simplest, the following is the usage model:

$ check_clocks -d enp3s0 -v

You can interpret the Linux nanosecond time accuracy by looking at the absolute time stamps (for instance, epoch time) drift, timestamps read latencies, and time-domains delta in nanosecond: CLOCK_TAI, CLOCK_REALTIME, and gPTP.

Dumping timestamps and deltas

rt tstamp:      1521111579039529335
tai tstamp:     1521111579039529428
phc tstamp:     1521111579039531493
rt latency:     45
tai latency:    40
phc latency:    8384
phc-rt delta:   2158
phc-tai delta:  2065

More advanced monitoring usage model are also supported on certain Intel® Ethernet Controller supporting (PPS_CAPTUREASSERT callback pps_source_info API ):

• [Endpoint PCI 8086:15f2] Intel® Ethernet Controller I225-LM for Time-Sensitive Networking (TSN)

• [Endpoint PCI 8086:125b] Intel® Ethernet Controller I226-LM for Time-Sensitive Networking (TSN)

• [Endpoint PCI 8086:157b, 8086:1533,…] Intel® Ethernet Controller I210-IT for Time-Sensitive Networking (TSN)

Note:

phc-rt delta: can be modified via International Atomic Time (TAI) and UTC currentUtcOffset default 37-second value:

$ pmc -u -b 0 -t 1 \
      "SET GRANDMASTER_SETTINGS_NP clockClass 248 clockAccuracy 0xfe offsetScaledLogVariance 0xffff currentUtcOffset 37 leap61 0 leap59 0 currentUtcOffsetValid 1 ptpTimescale 1 timeTraceable 1 frequencyTraceable 0 timeSource 0xa0"

The expected output should be similar to the following:

sending: SET GRANDMASTER_SETTINGS_NP
   2046a1.fffe.056bdc-0 seq 0 RESPONSE MANAGEMENT GRANDMASTER_SETTINGS_NP
            clockClass              248
            clockAccuracy           0xfe
            offsetScaledLogVariance 0xffff
            currentUtcOffset        0
            leap61                  0
            leap59                  0
            currentUtcOffsetValid   1
            ptpTimescale            1
            timeTraceable           1
            frequencyTraceable      0
            timeSource              0xa0

You can also use the check_clocks tool with the following options:

• -a - Provides accurate PTP PPS and TSN QDisc continuous tracing

• -v - Displays standard output at every split-second

$ check_clocks -d enp3s0 -v -a

You can interpret the Linux nanosecond time accuracy by looking at the absolute time stamps (for instance, epoch time) drift, timestamps read latencies, and time-domains delta in nanosecond: CLOCK_TAI, CLOCK_REALTIME, and gPTP.

Dumping timestamps and deltas

/dev/pps1 can be enabled from /dev/ptp1 on device enp3s0
trying PPS source "/dev/pps1"
found PPS source "/dev/pps1"
pps-phc-timestamp: 1659421181    sequence: 63840         offset: 20726   trt_lat=56691   tai_lat=37000056791
pps-phc-timestamp: 1659421182    sequence: 63841         offset: 20826   trt_lat=23809   tai_lat=37000023940
pps-phc-timestamp: 1659421183    sequence: 63842         offset: 12756   trt_lat=22415   tai_lat=37000022504
pps-phc-timestamp: 1659421184    sequence: 63843         offset: 13223   trt_lat=17613   tai_lat=37000017742
pps-phc-timestamp: 1659421185    sequence: 63844         offset: 14361   trt_lat=17442   tai_lat=37000017579
pps-phc-timestamp: 1659421186    sequence: 63845         offset: 13982   trt_lat=17403   tai_lat=37000017530
pps-phc-timestamp: 1659421187    sequence: 63846         offset: 13296   trt_lat=19543   tai_lat=37000019634
pps-phc-timestamp: 1659421188    sequence: 63847         offset: 13794   trt_lat=16073   tai_lat=37000016198

You can also use trace_event_clock_sync: of the check_clocks tool to represent time-synchronization using the Linux /sys/kernel/debug/tracing/options/markers tracing timeline:

• etf_qdisc_check: and taprio_qdisc_check: represent QDisc time attributes that get through AF_NETLINK (rtnetlink)

• taprio_sched_check: represents QDisc time-error calculation and cyclic 802.1-2018 EST scheduling intervals

• taprio_stats_check:, ingress_stats_check:, and etf_stats_check: represent QDisc statistics especially over-limit or dropped packets

echo 1 > /sys/kernel/debug/tracing/options/markers
echo 1 > /sys/kernel/debug/tracing/options/record-tgid
echo 0 > /sys/kernel/debug/tracing/options/overwrite
echo 100000 > /sys/kernel/debug/tracing/buffer_size_kb
echo global > /sys/kernel/debug/tracing/trace_clock

Clean and start tracing:

echo > /sys/kernel/debug/tracing/trace
echo 1 > /sys/kernel/debug/tracing/tracing_on

Stop tracing and then display the trace buffer:

cat /sys/kernel/debug/tracing/trace
# tracer: nop
#
# entries-in-buffer/entries-written: 22693/1225143   #P:2
#
#                                _-----=> irqs-off
#                               / _----=> need-resched
#                              | / _----=> need-resched_lazy
#                              || / _---=> hardirq/softirq
#                              ||| / _--=> preempt-depth
#                              ||||/     delay
#           TASK-PID     CPU#  |||||   TIMESTAMP  FUNCTION
#              | |         |   |||||      |         |
         <idle>-0       (-------) [000] d...1.. 65428.638988: cpu_idle: state=1 cpu_id=0
         <idle>-0       (-------) [001] d..h1.. 65428.639011: irq_handler_entry: irq=158 name=enp1s0
         <idle>-0       (-------) [001] d..h1.. 65428.639012: irq_handler_exit: irq=158 ret=handled
         <idle>-0       (-------) [001] dN.h4.. 65428.639013: sched_wakeup: comm=irq/158-enp1s0 pid=1473 prio=49 target_cpu=001
         <idle>-0       (-------) [001] .N..1.. 65428.639014: cpu_idle: state=4294967295 cpu_id=1
         <idle>-0       (-------) [001] d...2.. 65428.639016: sched_switch: prev_comm=swapper/1 prev_pid=0 prev_prio=120 prev_state=R ==> next_comm=irq/158-enp1s0 next_pid=1473 next_prio=49
irq/158-enp1s0-1473    (   1473) [001] d...314 65428.639028: sched_wakeup: comm=check_clocks pid=2285 prio=120 target_cpu=001
irq/158-enp1s0-1473    (   1473) [001] d...2.. 65428.639031: sched_switch: prev_comm=irq/158-enp1s0 prev_pid=1473 prev_prio=49 prev_state=S ==> next_comm=check_clocks next_pid=2285 next_prio=120
   check_clocks-2285    (   2285) [001] ....... 65428.639053: tracing_mark_write: 0: trace_event_clock_sync: parent_ts=1525853974.18952 seq=64884 tai_lat=15850 ep=enp1s0
   check_clocks-2285    (   2285) [001] d..h1.. 65428.639056: softirq_raise: vec=8 [action=HRTIMER]
   check_clocks-2285    (   2285) [001] d.L.3.. 65428.639059: sched_wakeup: comm=ksoftirqd/1 pid=21 prio=120 target_cpu=001
   check_clocks-2285    (   2285) [001] d...2.. 65428.639062: sched_switch: prev_comm=check_clocks prev_pid=2285 prev_prio=120 prev_state=R ==> next_comm=ksoftirqd/1 next_pid=21 next_prio=120
   ...
   check_clocks-2285    (   2285) [001] ....... 65427.639411: tracing_mark_write: etf_qdisc_check: id=1 clk=TAI qdelay=50000 skipsock=0 qdeadline=0 qoffload=1 ep=enp1s0
   check_clocks-2285    (   2285) [001] ....... 65427.639386: tracing_mark_write: taprio_qdisc_check: clk=PTP basetime=1525795210 flag=0x2 seq=1140581394 ep=enp1s0
   ...
   check_clocks-2285    (   2285) [001] ....... 65427.639390: tracing_mark_write: taprio_sched_check: gate0=1525853973.795210 cmd=S mask=3ccccccc cyc=1000000 ep=enp1s0
   check_clocks-2285    (   2285) [001] ....... 65427.639392: tracing_mark_write: taprio_sched_check: gate1=1525853973.1295210 cmd=S mask=c210cccc cyc=1000000 ep=enp1s0
   ...
   check_clocks-2285    (   2285) [001] ....... 65427.639395: tracing_mark_write: taprio_stats_check: id=f qpkts=199503 qdrops=9816 ovrlmt=0 retry=0 estpps=-1 ep=enp1s0
   check_clocks-2285    (   2285) [001] ....... 65427.639413: tracing_mark_write: etf_stats_check: id=1 qpkts=1998 qdrops=2 ovrlmt=1 retry=0 estpps=-1 ep=enp1s0
   check_clocks-2285    (   2285) [001] ....... 65427.639421: tracing_mark_write: ingress_stats_check: id=fff1 qpkts=0 qdrops=0 ovrlmt=0 retry=0 estpps=-1 ep=enp1s0
   ...

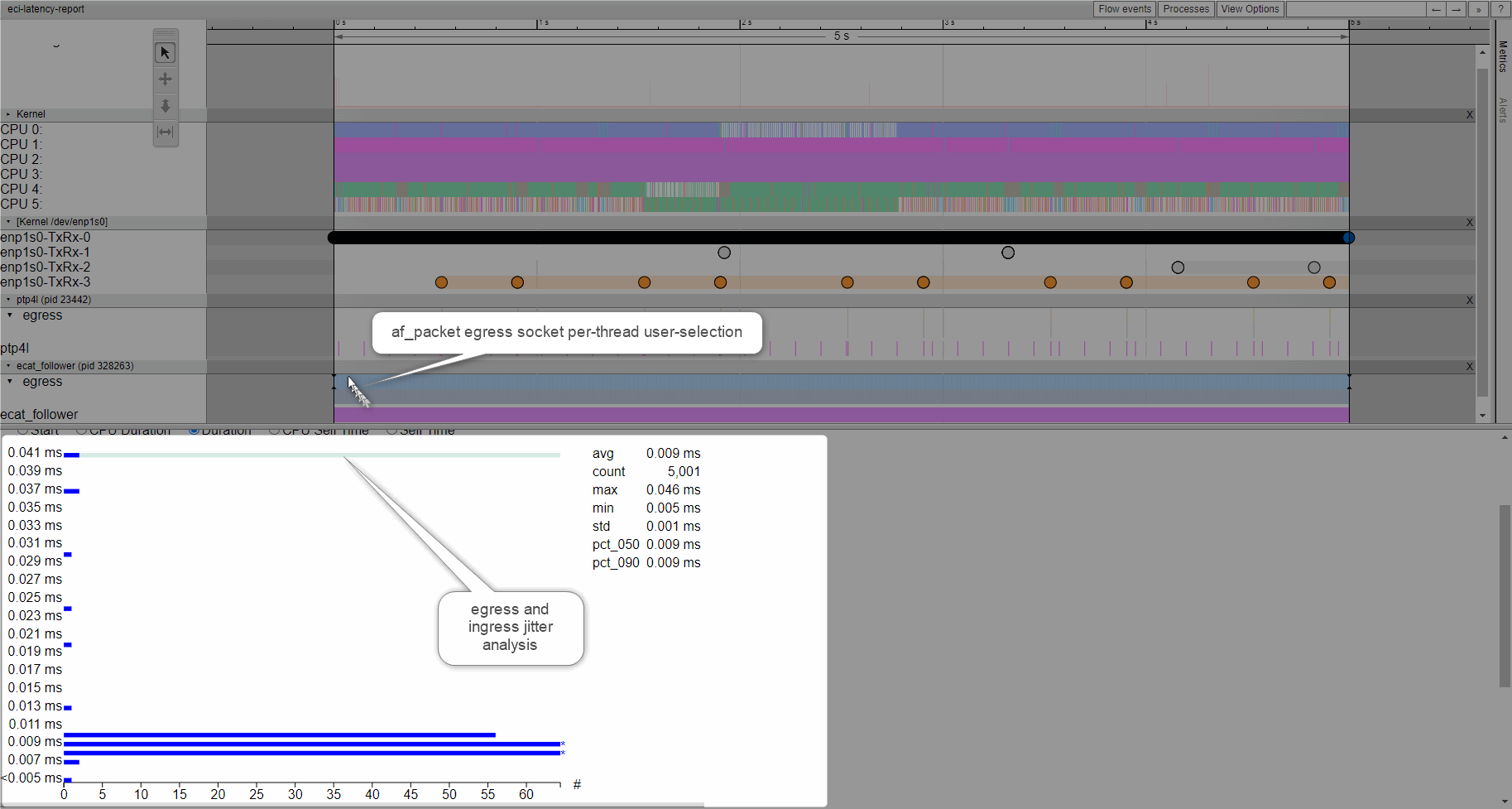

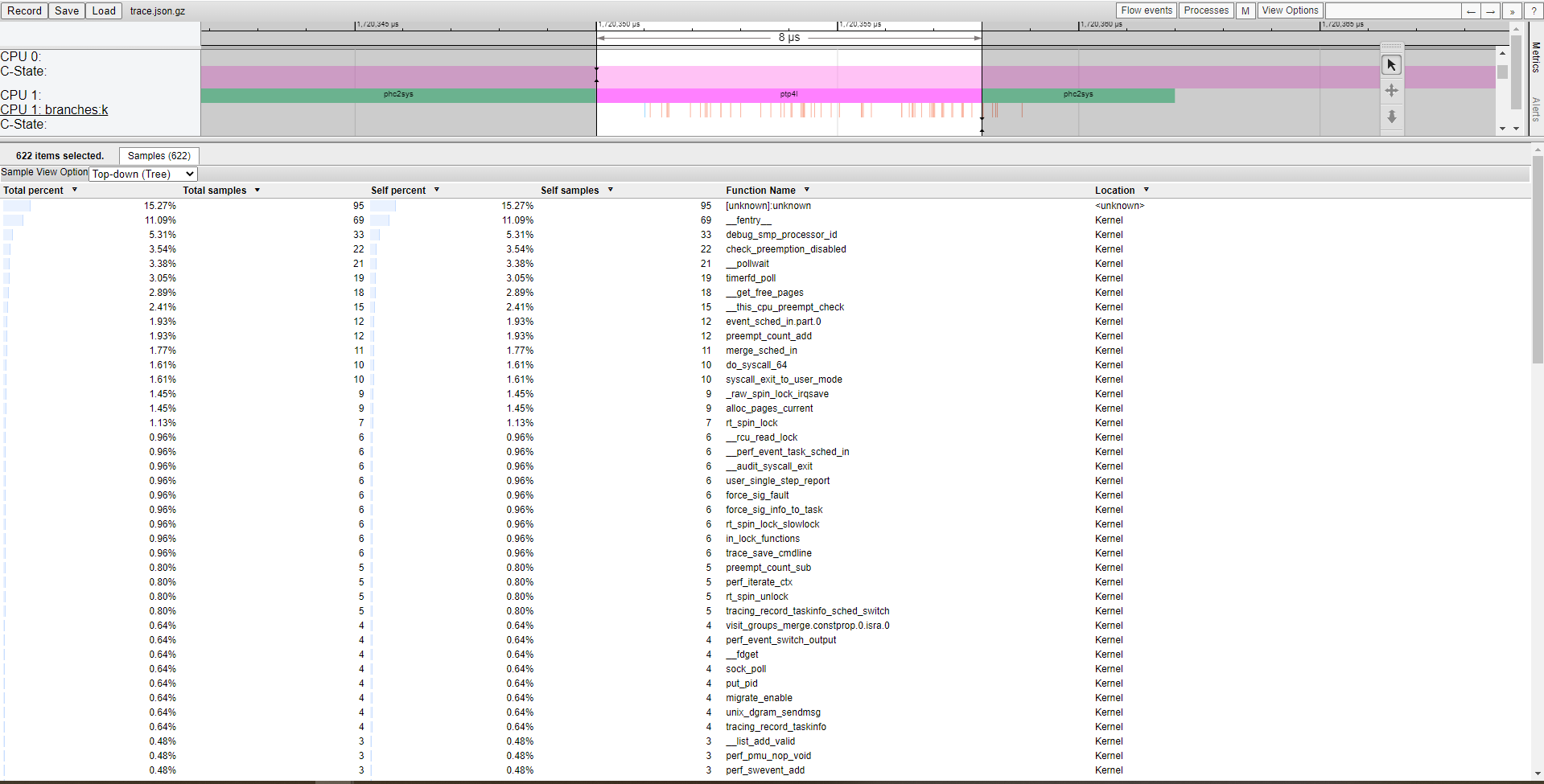

Ethernet/TSN Time-view - Trace af_packet Events

The following section is applicable to any Host (|Windows|, |Linux|):

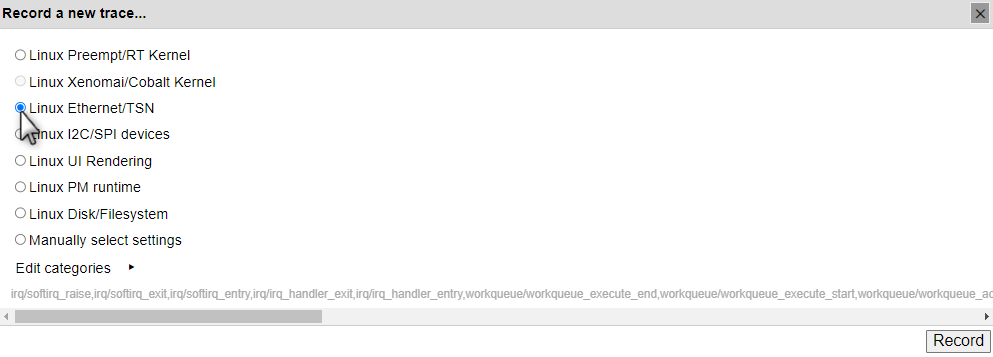

Open http://<target ipv4>:8000 on common Internet Browser.

Note

Google* Chrome/Chromium or Microsoft* Edge are recommended. Opera* and Safari* browsers were not tried extensively, but are potential alternatives. Firefox* may be slow and Microsoft Internet Explore is incompatible.

Intel® ECI makes generic assumptions that the Linux* Ethernet/TSN usage model essentially leverages Linux system-level trace events and user-recorded significant timeline for IEEE std 802.1Q-2018 Linux af_packet traffic representation:

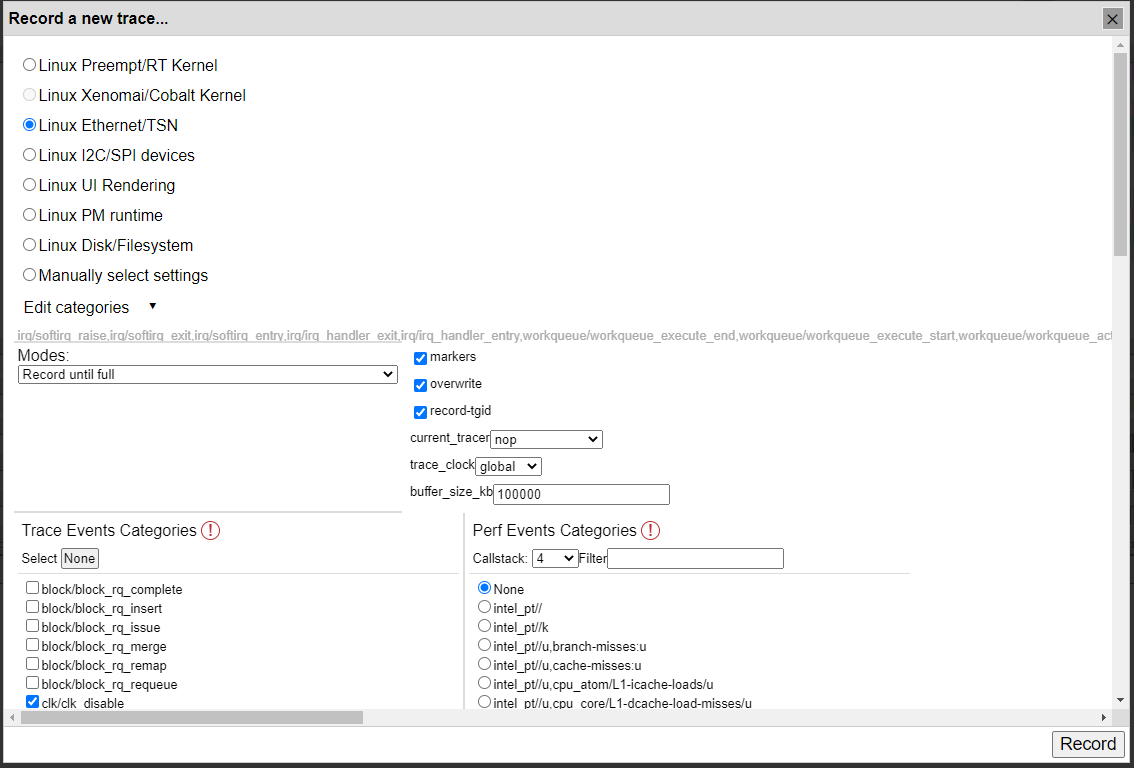

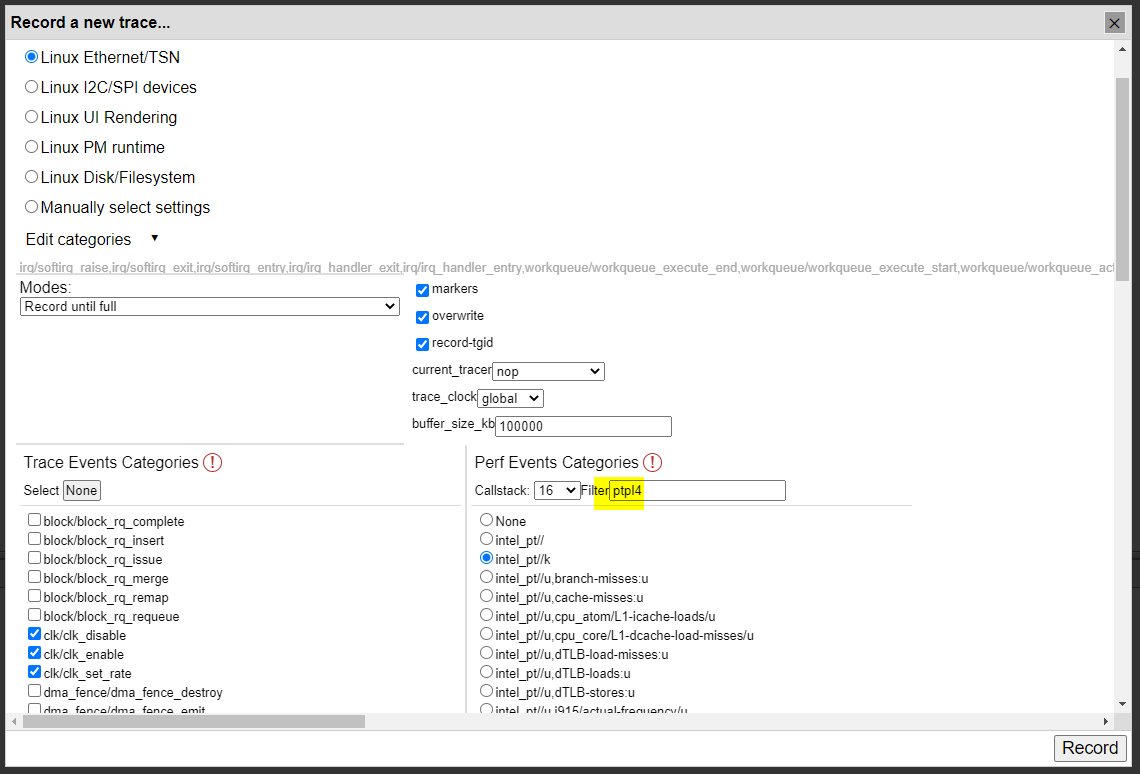

Click Edit categories to view the full trace event configuration details. You can record a trace for manually selected settings instead of the default Linux* Ethernet/TSN.

While editing, you have the option to record in two Modes:

• Record until full - This mode will display a progress bar corresponding to the full percentage of the trace buffer, polled periodically using Catapult REST API GET call http://<machine-ipv4>:8000/json/get_buffer_percent_full.



• Record continuously - This mode will record silently until you click Stop.

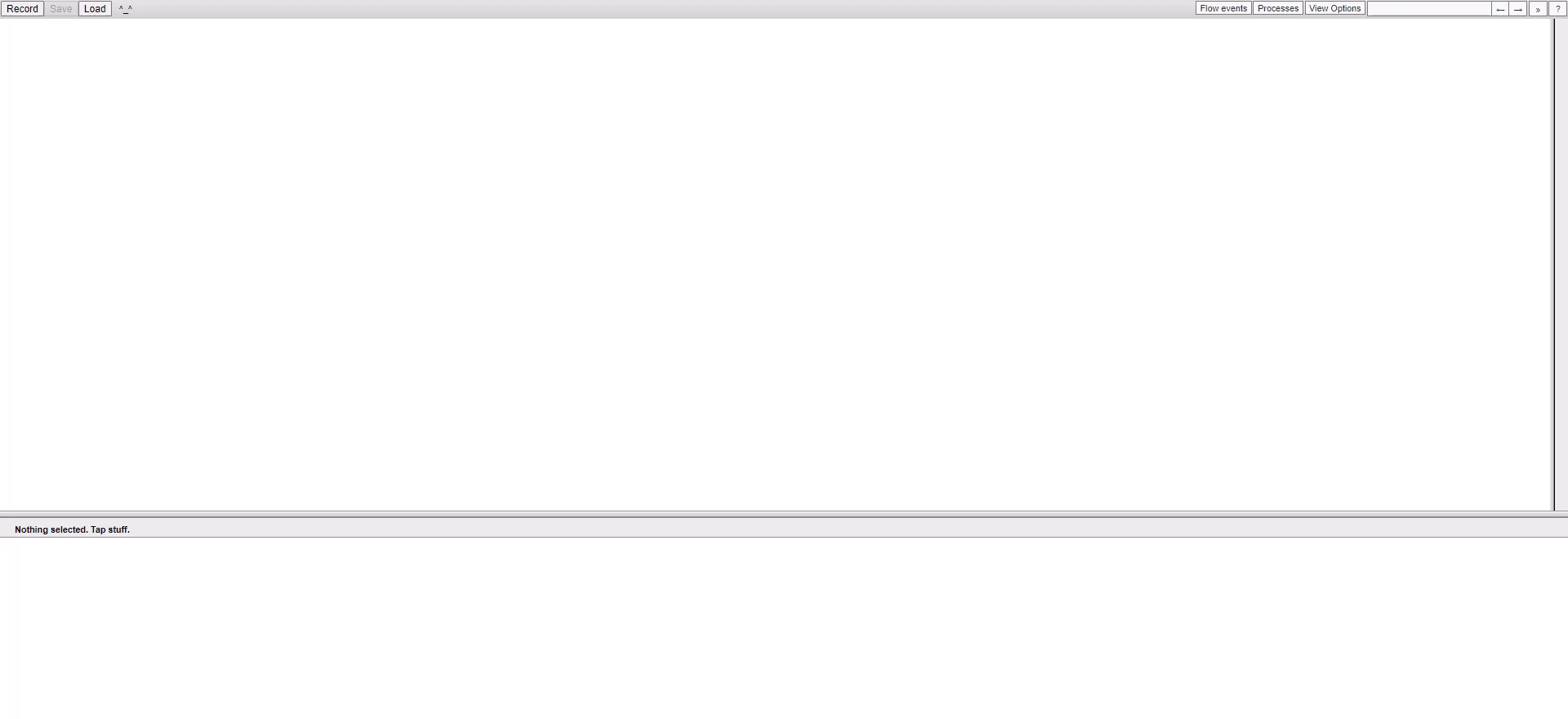

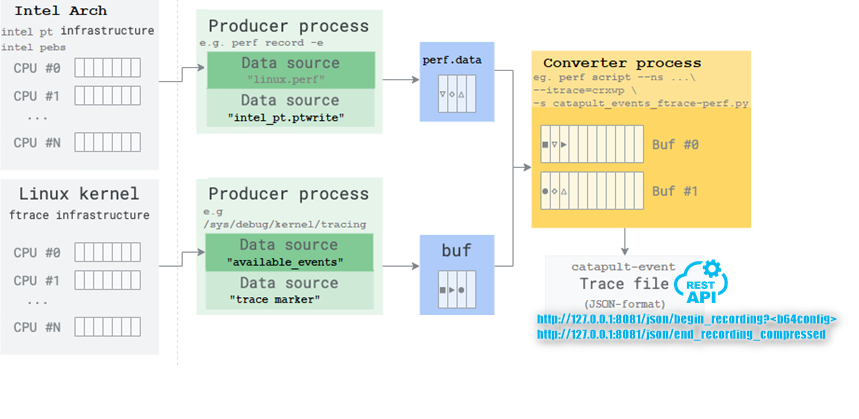

Click Record. The catapult REST API GET call http://<machine-ipv4>:8000/json/begin_recording?<base64 encoded user-config> will pass the default Linux* Ethernet/TSN pre-canned configuration:

• Linux netdev egress Ethernet traffic representation using the net_dev_start_xmit, net_dev_xmit, net_dev_queue, and net_dev_xmit_timeout events

• Linux netif ingress Ethernet traffic representation using the netif_rx_ni_entry and netif_rx_ni_exit events

• Linux napi ingress Ethernet traffic representation using the napi_gro_receive_entry and napi_gro_receive_exit events

• Linux Scheduler FSM representation using the sched_switch and sched_wakeup events

• Linux interrupt handlers representation using all irq events

• Linux kernel drivers work-queues job representation using all workqueue events

• Linux CPU idle and frequency representation using cpu_idle, clock_set_rate``y, and ``cpu_frequency events

Click to view the equivalent manual command line

Activate events:

echo 1 > /sys/kernel/debug/tracing/events/net/net_dev_start_xmit/enable
echo 1 > /sys/kernel/debug/tracing/events/net/net_dev_xmit/enable
echo 1 > /sys/kernel/debug/tracing/events/net/net_dev_queue/enable
echo 1 > /sys/kernel/debug/tracing/events/net/net_dev_xmit_timeout/enable
echo 1 > /sys/kernel/debug/tracing/events/net/netif_rx_ni_entry/enable
echo 1 > /sys/kernel/debug/tracing/events/net/netif_rx_ni_exit/enable
echo 1 > /sys/kernel/debug/tracing/events/net/netif_rx_entry/enable
echo 1 > /sys/kernel/debug/tracing/events/net/netif_rx_exit/enable
echo 1 > /sys/kernel/debug/tracing/events/net/napi_gro_receive_entry/enable
echo 1 > /sys/kernel/debug/tracing/events/net/napi_gro_receive_exit/enable
echo 1 > /sys/kernel/debug/tracing/events/sched/sched_switch/enable
echo 1 > /sys/kernel/debug/tracing/events/sched/sched_wakeup/enable
echo 1 > /sys/kernel/debug/tracing/events/power/cpu_idle/enable
echo 1 > /sys/kernel/debug/tracing/events/power/cpu_frequency/enable
echo 1 > /sys/kernel/debug/tracing/events/power/clock_set_rate/enable
echo 1 > /sys/kernel/debug/tracing/events/workqueue/enable
echo 1 > /sys/kernel/debug/tracing/events/irq/enable

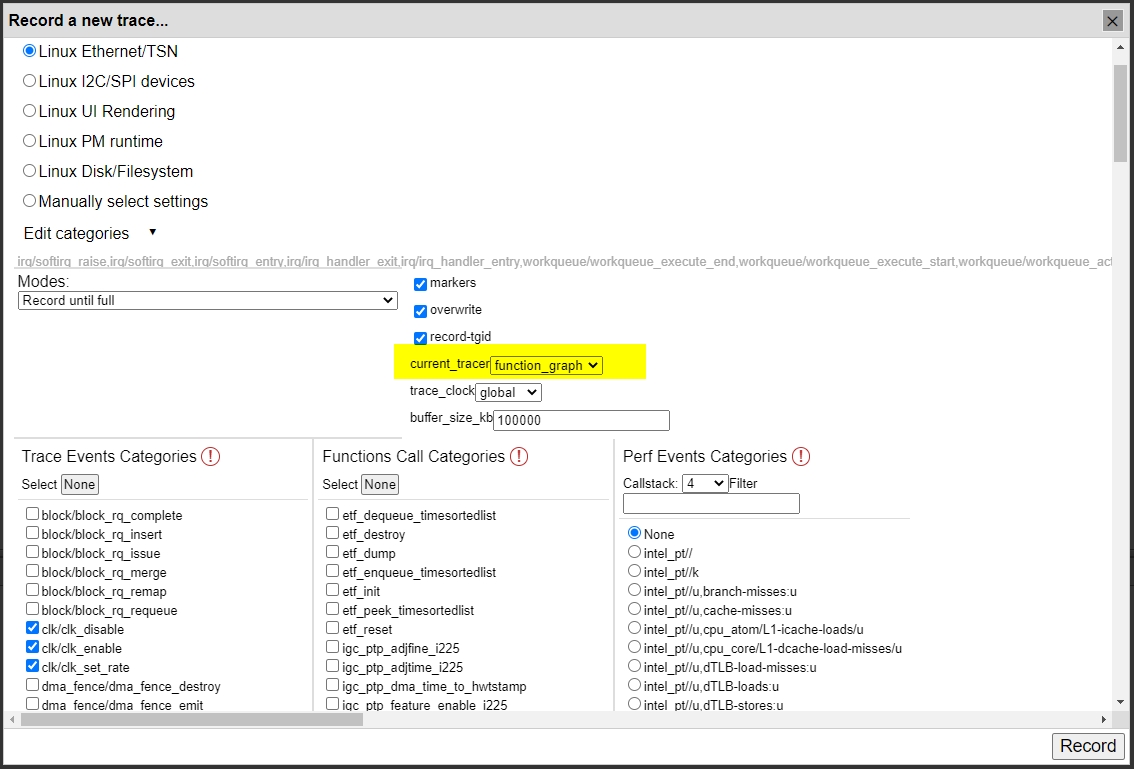

• tracing/options/override disable flushing tracing/trace ftrace buffer on every new record

• tracing/options/record-tgid add column process-id or TASK-PID

• tracing/buffer_size_kb size ftrace buffers, for example 100000 equivalent to 100 MB for each CPU core

Click to view the equivalent manual command line

Select tracing options:

echo 100000 > /sys/kernel/debug/tracing/buffer_size_kb
echo 1 > /sys/kernel/debug/tracing/options/record-tgid
echo 0 > /sys/kernel/debug/tracing/options/overwrite
echo global > /sys/kernel/debug/tracing/trace_clock
echo > /sys/kernel/debug/tracing/trace
echo 1 > /sys/kernel/debug/tracing/tracing_on

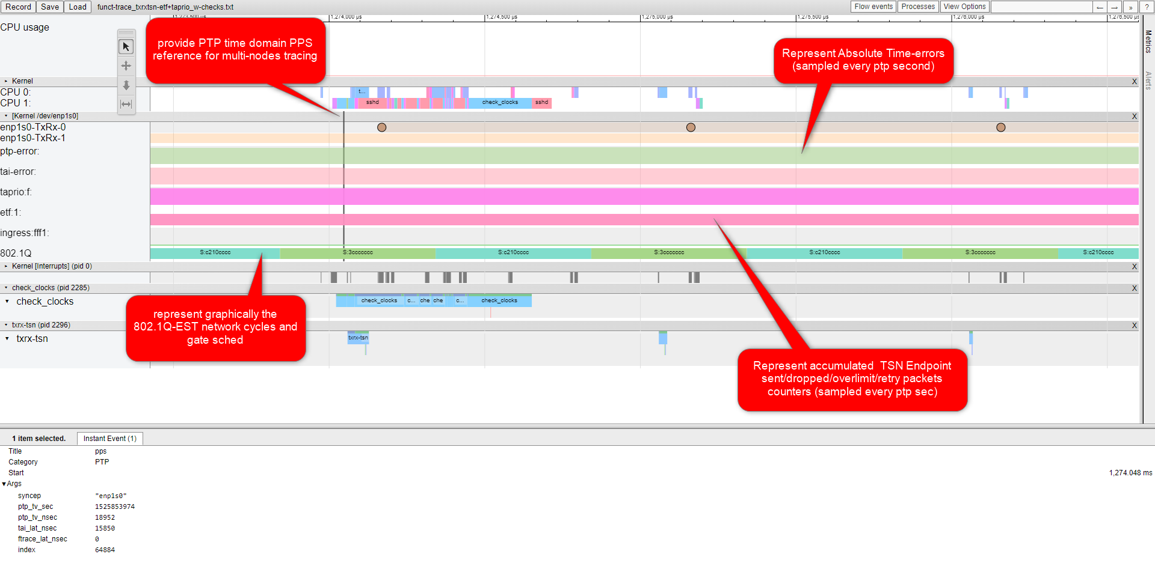

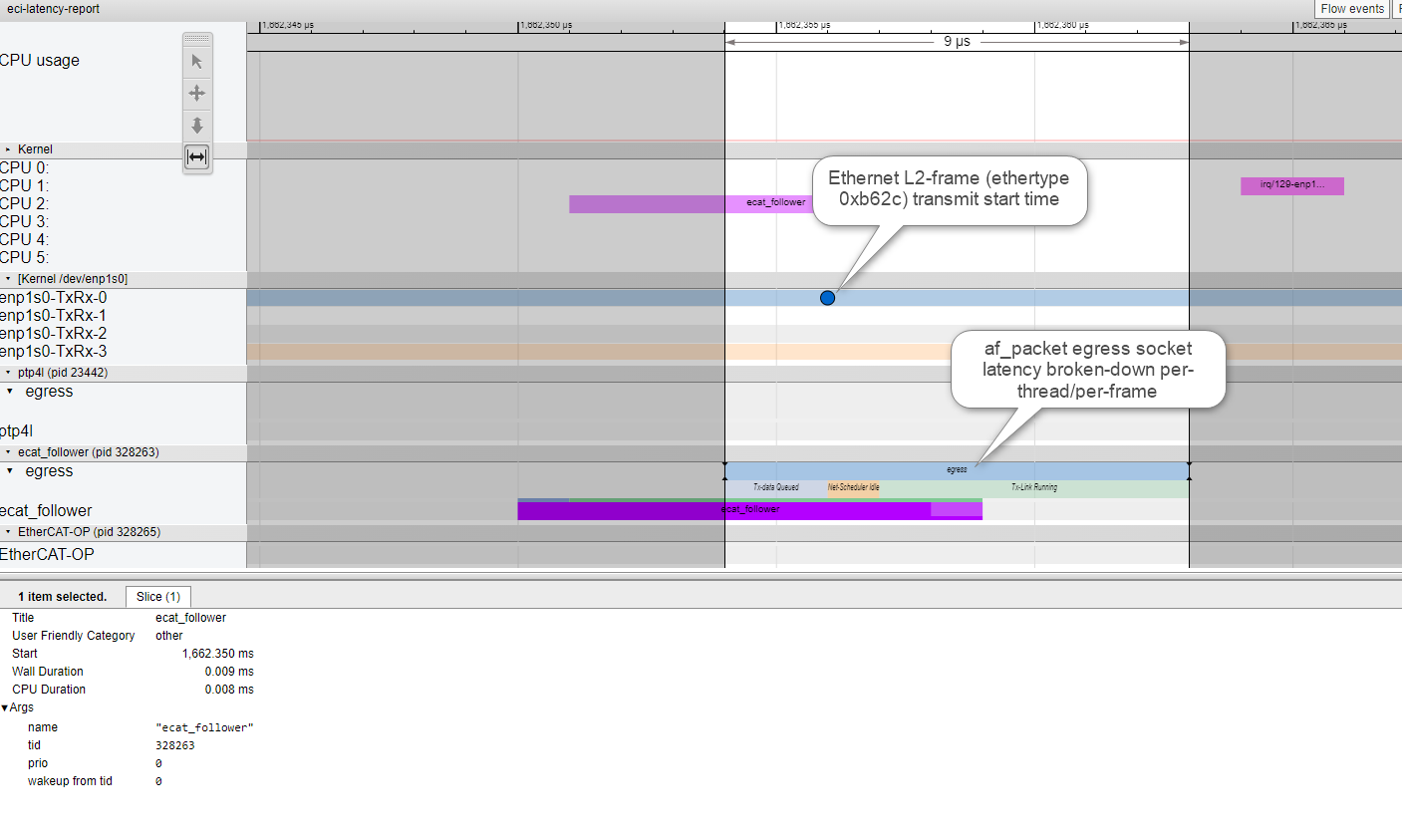

Click Stop. The catapult REST API GET call http://<machine-ipv4>:8000/json/end_recording_compressed?<base64 encoded compressed-json trace dump> retrieves and renders the trace JSON record onto the time-view UI.

Click to view the equivalent manual command line

Stop tracing, and then redirect the standard output trace buffer to a temporary file:

echo 0 > /sys/kernel/debug/tracing/tracing_on

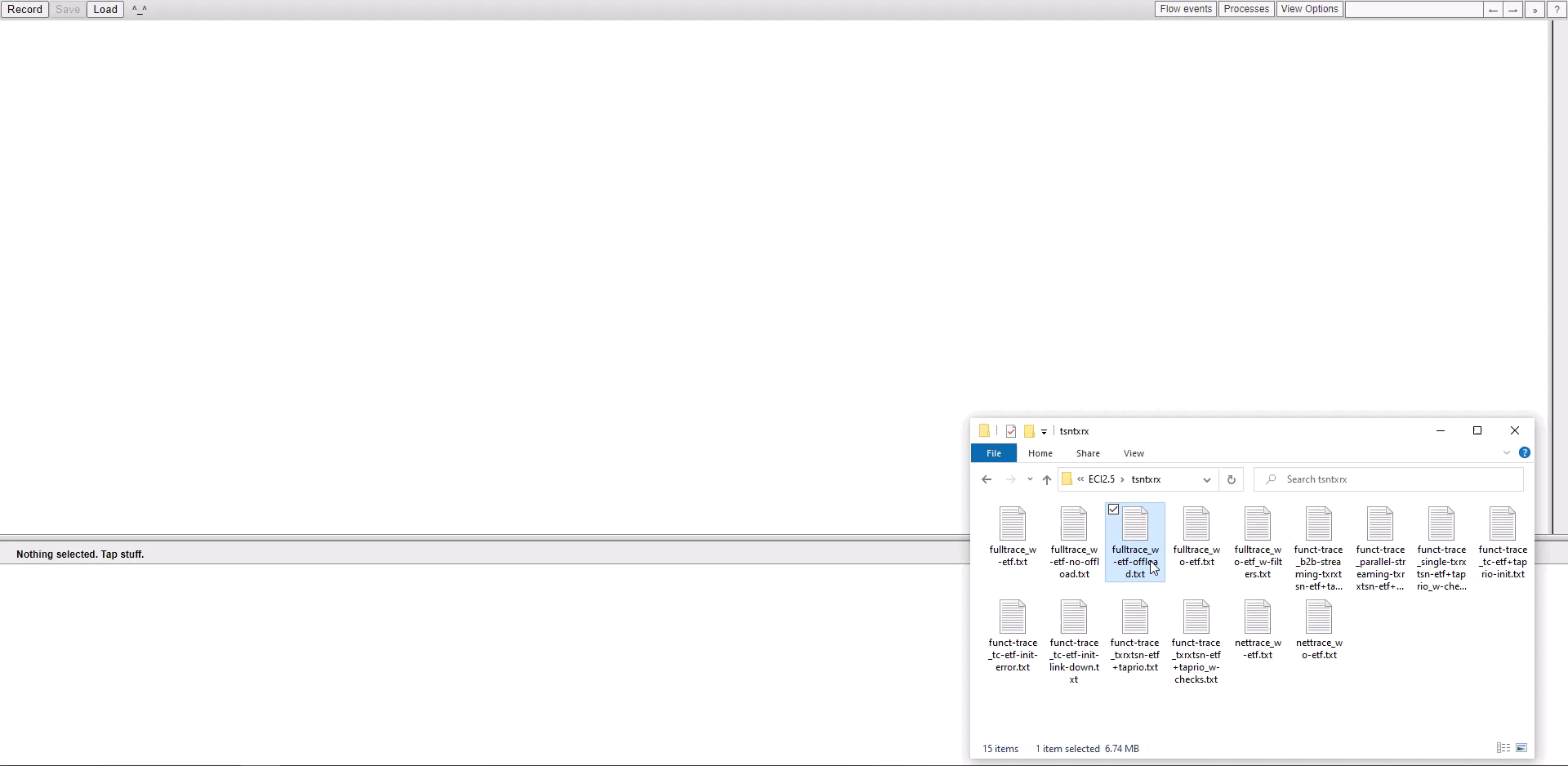

cat /sys/kernel/debug/tracing/trace > /tmp/trace.txt

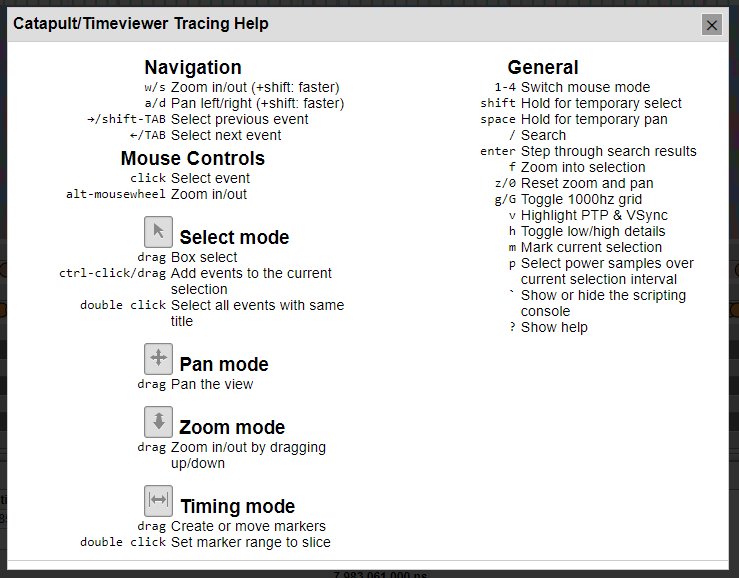

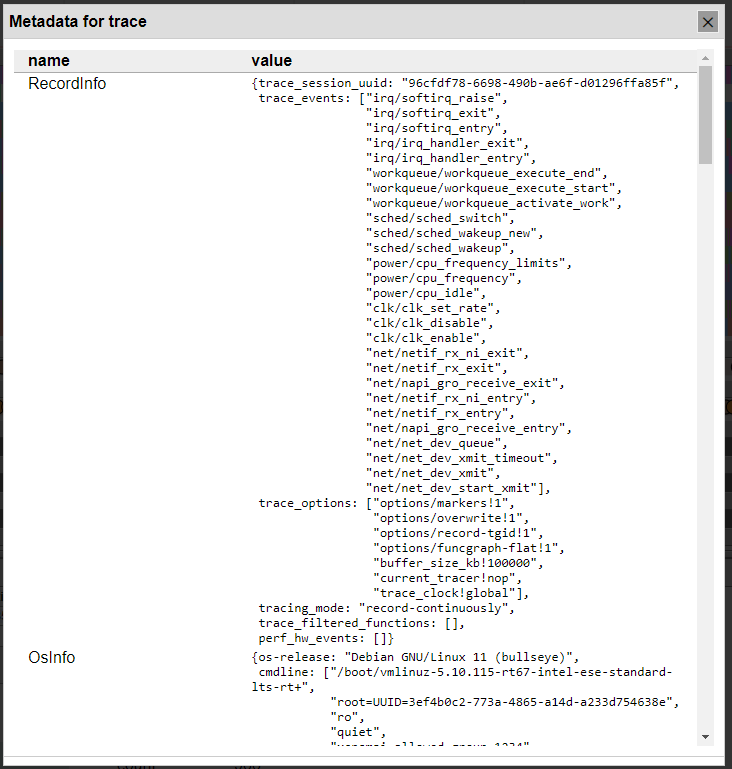

The ? Helper and M Meta-data helper buttons explain navigation options and tracing configuration to reconcile the recording context.

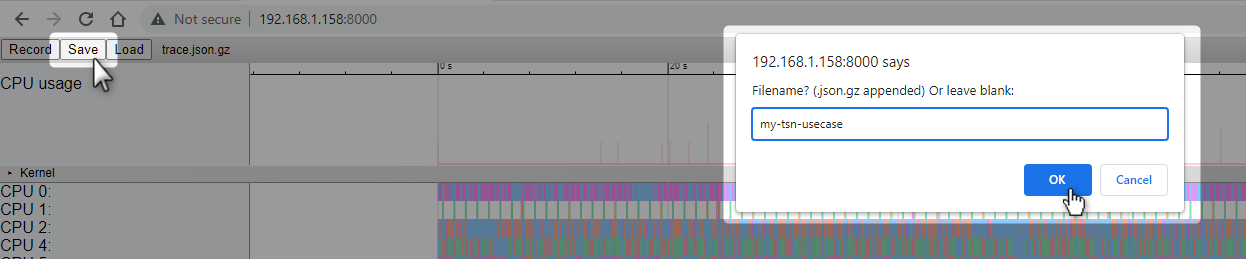

You can also click Save to archive to the trace_my-tsn-usecase.json.gz file for redistribution.

Ethernet/TSN Time-view - Trace af_packet Events with Advanced function_graph

Important

The tracing/options/funcgraph-flat enable low-overhead function-graph tracer it allow to compress function Entry or Exit into a single Trace event (kernel tracing CONFIG_TRACE_GRAPH_PRINT_FLAT).

Intel® ECI makes generic assumptions regarding the Linux* Ethernet/TSN* usage Linux* af_packet events with Linux function tracing Entry/Exit time.

The catapult REST API GET call http://<machine-ipv4>:8000/json/begin_recording?<base64 encoded user-config> passes the resulting Manually select settings trace events and filtered function configurations.

Click to view the equivalent manual command line

echo 0 > /sys/kernel/debug/tracing/tracing_on
echo 1 > /sys/kernel/debug/tracing/options/funcgraph-abstime
echo 1 > /sys/kernel/debug/tracing/options/funcgraph-cpu
echo 1 > /sys/kernel/debug/tracing/options/funcgraph-proc
echo 1 > /sys/kernel/debug/tracing/options/funcgraph-flat

From the available_filter_functions, ONLY enable the relevant IEEE std 802.1Q-2018. For example, QDisc TAPRIO, QDisc ETF, or both.

echo "etf_reset" > /sys/kernel/debug/tracing/set_ftrace_filter
echo "etf_enqueue_timesortedlist" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "etf_peek_timesortedlist" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "etf_dequeue_timesortedlist" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "etf_init" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "etf_reset" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "etf_destroy" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "etf_dump" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_reset" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_enqueue" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_peek" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_peek_offload" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_peek_soft" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_dequeue" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_dequeue_offload" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_dequeue_soft" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_walk" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_change" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_destroy" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_dump" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "taprio_init" >> /sys/kernel/debug/tracing/set_ftrace_filter

• [Endpoint PCI 8086:15f2] Intel® Ethernet Controller I225-LM for Time-Sensitive Networking (TSN)

echo "igc_setup_tc" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_reset" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_tsn_new_flags" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_tsn_enable_offload" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_tsn_offload_apply" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_tx_hang" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_rx_pktstamp" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_suspend" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_reset" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_read" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_init" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_stop" >> /sys/kernel/debug/tracing/set_ftrace_filter

• [Endpoint PCI 8086:125b] Intel® Ethernet Controller I226-LM for Time-Sensitive Networking (TSN)

echo "igc_setup_tc" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_reset" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_tsn_new_flags" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_tsn_enable_offload" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_tsn_offload_apply" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_tx_hang" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_rx_pktstamp" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_suspend" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_reset" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_read" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_init" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igc_ptp_stop" >> /sys/kernel/debug/tracing/set_ftrace_filter

• [Endpoint PCI 8086:157b, 8086:1533,…] Intel® Ethernet Controller I210-IT for Time-Sensitive Networking (TSN)

echo "igb_reset" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_tx_timeout" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_config_tx_modes" >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_settime_i210"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_feature_enable"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_verify_pin"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_set_timestamp_mode"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_overflow_check"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_feature_enable_i210"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_gettimex_i210"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_adjtime_i210"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_systim_to_hwtstamp"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_tx_work"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_rx_hang"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_tx_hang"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_rx_pktstamp"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_rx_rgtstamp"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_get_ts_config"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_set_ts_config"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_suspend"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_stop"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_reset"  >> /sys/kernel/debug/tracing/set_ftrace_filter
echo "igb_ptp_init"  >> /sys/kernel/debug/tracing/set_ftrace_filter

Enable function_graph as the current tracer. Then, clean and start tracing:

echo function-trace > /sys/kernel/debug/tracing/trace_options
echo function_graph >  /sys/kernel/debug/tracing/current_tracer
echo > /sys/kernel/debug/tracing/trace
echo 1 > /sys/kernel/debug/tracing/tracing_on

Stop tracing and send the standard output trace buffer to a file:

echo 0 > /sys/kernel/debug/tracing/tracing_on
cat /sys/kernel/debug/tracing/trace > /tmp/func-trace.txt

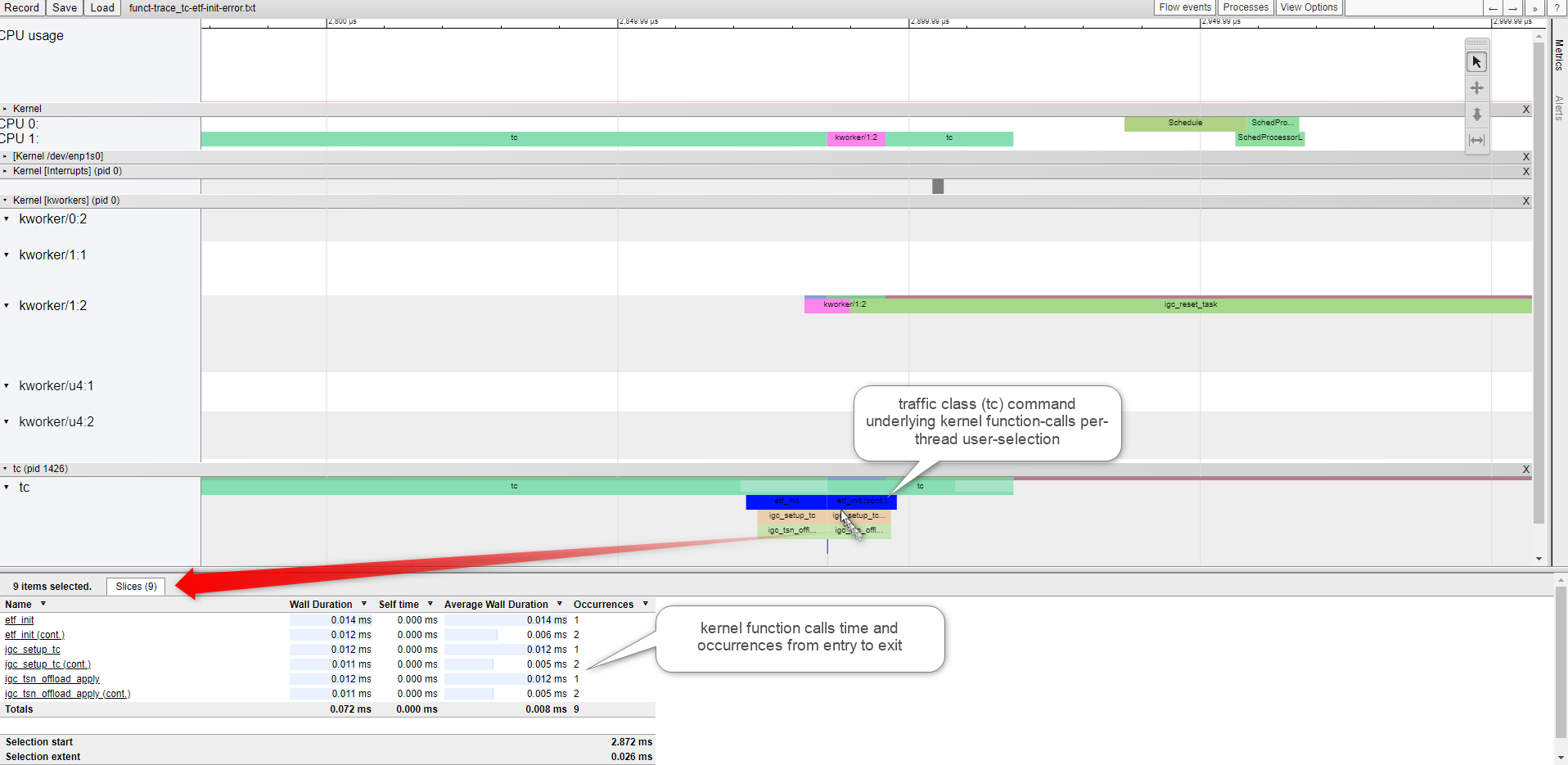

When you click Stop, catapult REST API GET call http://<machine-ipv4>:8000/json/end_recording_compressed?<base64 encoded compressed-json trace dump> will retrieve and render the trace JSON record onto the time-view UI.

Ethernet/TSN Time-view - Trace af_packet Events with Advanced intel_pt//

A more advanced usage model can combine Linux* af_packet events with Linux perf event tracing, such as perf/intel_pt.

Intel® ECI makes generic assumptions about the perf-intel-pt features usage model using perf record and perf scripts available options:

Important

It is highly recommended that with intel_pt/branch=1/, intel_pt//k, intel_pt//, or intel_pt/cyc=1/u, record configurations to Filter branch on a particular process name (ptp4l in this example) to avoid decoding and loading congestion:

• intel_pt/branch=1/u save intel_pt records all branches call and returns user space ONLY across all cores

• intel_pt//k save intel_pt records all branches call and returns ONLY kernel space across all cores

• intel_pt// save intel_pt records all branches call and returns type user space and kernel space across all cores

• intel_pt/cyc=1/u perf instructions hardware counter derived from the intel_pt branch records across all cores

• intel_pt/branch=0,ptw=1/ save intel_pt records only PTWRITE from all cores and disabled if cpuid is not supported

• intel_pt/branch=0,pwr_evt=1/ save intel_pt records only POWER EVENTS from all cores and disabled if cpuid is not supported

• intel_pt//u,branch-misses:u save intel_pt call-graph of all branch-misses user space records from all cores

• intel_pt//u,<perf-event>:u save intel_pt call-graph for a particular perf event user space records from all cores

Click Record. The catapult REST API GET call http://<machine-ipv4>:8000/json/begin_recording?<base64 encoded user-config> passes the resulting Manually select settings trace events and Linux perf configurations:

Click to view the equivalent manual command line

echo > /sys/kernel/debug/tracing/trace && \
echo /proc/kallsym > /tmp/kallsym.log
echo 'kernel.kptr_restrict=0' >> /etc/sysctl.conf
echo 1 > /sys/kernel/debug/tracing/tracing_on && \
perf record -e '{intel_pt//}' -a sleep 1 && -p <ptp4l pid> \
echo 0 > /sys/kernel/debug/tracing/tracing_on

cat /sys/kernel/debug/tracing/trace > /tmp/trace.txt
perf script -i perf.data \
--kallsym /tmp/kallsym.log --ns --itrace=crxwp \
-s /usr/shared/catapult/catapult_ftrace-perf.py -- \
--input /tmp/trace.txt -t -f json \
-o /tmp/perf+ftrace_intel-pt.json

Click Stop. The catapult REST api GET call http://<machine-ipv4>:8000/json/end_recording_compressed?<base64 encoded compressed-json trace dump> retrieves and renders the trace JSON record onto the time-view UI.

The ECI documentation instantiates a local time-view UI for sharing archives file and performs a event timeline deep-dive analysis.
