IgH EtherCAT Master Stack¶

The EtherCAT master stack by IgH* is used for open source projects for automation of systems such as Robot Operating System (ROS) and Linux* CNC. Applications of an open source–based EtherCAT master system reduces cost and makes application program development flexible. Based on the native, Intel® made the following optimizations:

Support Linux* Kernel 5.x/6.x
Support Xenomai* 3 and Preempt RT
Migrate latest IGB/IGC/mGBE driver to stack

Install IgH EtherCAT Master Stack¶

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

Install from meta-package

$ sudo apt install eci-softplc-fieldbus

Install from individual Deb packages

# For non-Xenomai kernels
$ sudo apt install ighethercat ighethercat-dkms ighethercat-examples ecat-enablekit

# For Xenomai kernels
$ sudo apt install ighethercat ighethercat-dkms ighethercat-examples-xenomai ecat-enablekit-xenomai

Set up EtherCAT Master¶

This section describes the procedure to run IgH EtherCAT Master Stack on Intel® Edge Controls for Industrial (Intel® ECI or ECI).

Dependencies¶

Native EtherCAT Device Driver - IGB/IGC (High performance)
- Only supports IGB, IGC devices (Intel® Ethernet Controller I210, Intel® Ethernet Controller I211, Intel® Ethernet Controller I225/I226) and mGBE devices
- One networking driver for EtherCAT and non-EtherCAT devices
Driver gets more complicated, as it must handle EtherCAT and non-EtherCAT devices.
Generic EtherCAT Device Driver - Generic (Low performance) - Any Ethernet hardware that is covered by a Linux Ethernet driver can be used for EtherCAT - Performance is low compared to the native approach, because the frame data have to traverse the lower layers of the network stack

Note: If the target system does not support the IGB device driver, select the generic EtherCAT device driver.

System Integration¶

The following section is applicable to:

EtherCAT Initialization Script¶

The EtherCAT master init script is installed in /etc/init.d/ethercat.

EtherCAT Sysconfig File¶

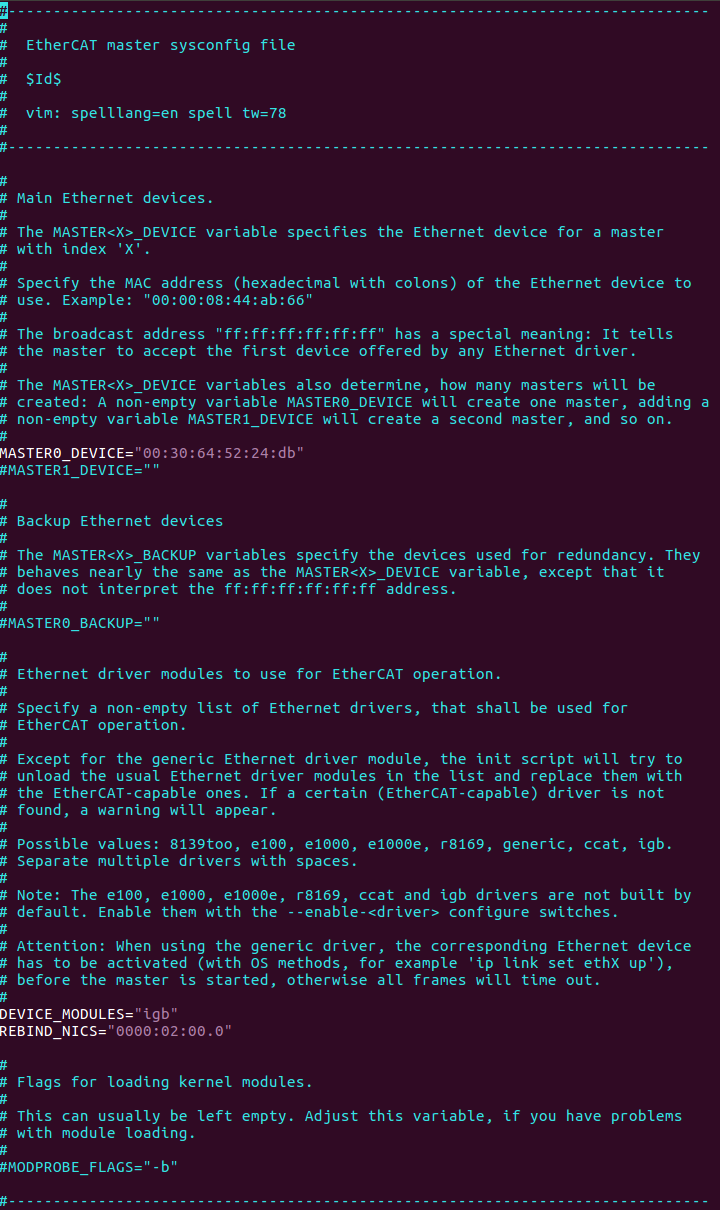

The init script uses a mandatory sysconfig file installed in /etc/sysconfig/ethercat. The sysconfig file contains the configuration variables needed to operate one or more masters. The documentation is within the file and also included here.

Do the following:

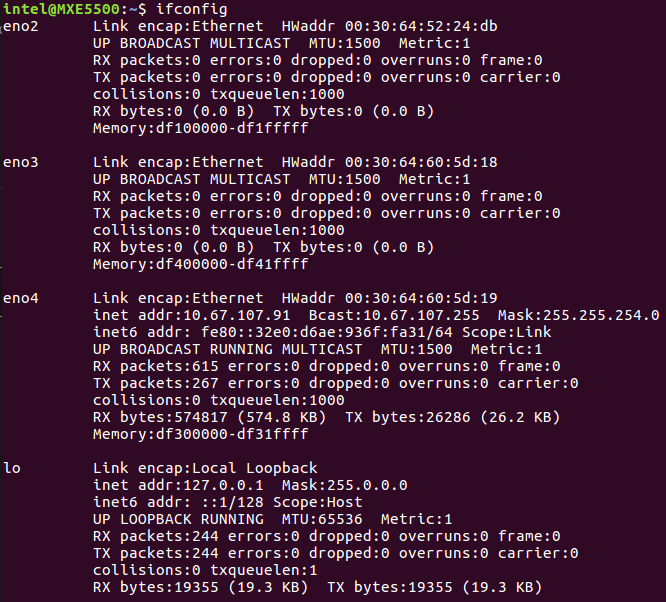

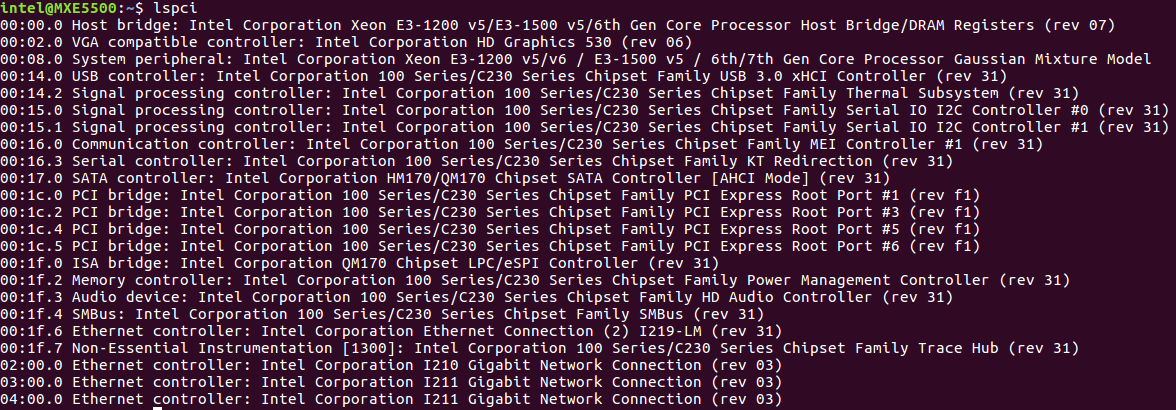

Set REBIND_NICS. Use lspci to query net devices. One of the devices might be be specified as an EtherCAT network interface.
Fill the MAC address for MASTER0_DEVICE. Get the MAC address of the Network Interface Controllers (NICs) selected for EtherCAT.

Note: EtherCAT Master Stack supports dual master configuration. To configure a second master, fill the MAC address for MASTER1_DEVICE and add PCI address in REBIND_NICS.
Modify DEVICE_MODULES:
- Option 1: Intel Corporation I210 GbE controller EtherCAT driver (High performance)
```
DEVICE_MODULES="igb"
```
- Option 2: Intel Corporation I225 GbE controller EtherCAT driver (High performance)
```
DEVICE_MODULES="igc"
```
- Option 3: Intel® Core™ 12th S-Series [Alder Lake] and 11th Gen P-Series and U-Series [Tiger Lake] Intel® Atom™ x6000 Series [Elkhart Lake] GbE controller EtherCAT driver (High performance)
```
DEVICE_MODULES="dwmac_intel"
```
- Fallback: Generic driver as EtherCAT driver (Low performance)
```
DEVICE_MODULES="generic"
```

Start Master as Service¶

After the init script and the sysconfig file are ready to configure, and are placed in the right location, the EtherCAT master can be inserted as a service. You can use the init script to manually start and stop the EtherCAT master. Execute the init script with one of the following parameters:

Start EtherCAT Master
$ /etc/init.d/ethercat start
Stop EtherCAT Master
$ /etc/init.d/ethercat stop
Restart EtherCAT Master
$ /etc/init.d/ethercat restart
Status of EtherCAT Master
$ /etc/init.d/ethercat status

EtherCAT Configuration & Compilation¶

By default, ECI provides a generic configuration to enable EtherCAT. EtherCAT stack supports DKMS to build kernel modules whose sources generally reside outside the kernel source tree.

The source code of the EtherCAT stack can be found at: /var/lib/dkms/ighethercat-dkms/1.6/source The default configuration of EtherCAT stack is located in a file named dkms.conf. The configuration can be modified as needed.

Compiling EtherCAT¶

Change directory to the EtherCAT source:

$ cd /var/lib/dkms/ighethercat-dkms/1.6/source

Modify the default configuration of EtherCAT stack located in dkms.conf as needed.
Rebuild the EtherCAT stack with using the following commands:

$ dkms uninstall ighethercat-dkms -v 1.6
$ dkms unbuild ighethercat-dkms -v 1.6
$ dkms build ighethercat-dkms -v 1.6
$ dkms install ighethercat-dkms -v 1.6

Makefile Template for EtherCAT application¶

Provided below are some Makefile templates for EtherCAT application. These templates are provided to build EtherCAT application without Makefile.am.

Makefile template for PREEMPT-RT kernel

CC     = gcc
CFLAGS = -Wall -O3 -g -D_GNU_SOURCE -D_REENTRANT -fasynchronous-unwind-tables
LIBS   = -lm -lrt -lpthread -lethercat -Wl,--no-as-needed -L/usr/lib

TARGET = test
SRCS   = $(wildcard *.c)

OBJS   = $(SRCS:.c=.o)

$(TARGET):$(OBJS)
        $(CC) -o $@ $^ $(LIBS)

clean:
        rm -rf $(TARGET) $(OBJS)

%.o:%.c
        $(CC) $(CFLAGS) -o $@ -c $<

Makefile template for Dovetail kernel

CC     = gcc
CFLAGS = -Wall -O3 -g -I/usr/include/xenomai/cobalt -I/usr/include/xenomai -D_GNU_SOURCE -D_REENTRANT -fasynchronous-unwind-tables -D__COBALT__ -D__COBALT_WRAP__
LIBS   = -lm -lrt -lpthread -lethercat_rtdm -Wl,--no-as-needed -Wl,@/usr/lib/cobalt.wrappers -Wl,@/usr/lib/modechk.wrappers  /usr/lib/xenomai/bootstrap.o -Wl,--wrap=main -Wl,--dynamic-list=/usr/lib/dynlist.ld -L/usr/lib -lcobalt -lmodechk

TARGET = test
SRCS   = $(wildcard *.c)

OBJS   = $(SRCS:.c=.o)

$(TARGET):$(OBJS)
        $(CC) -o $@ $^ $(LIBS)

clean:
        rm -rf $(TARGET) $(OBJS)

%.o:%.c
        $(CC) $(CFLAGS) -o $@ -c $<

Multi-Axis Synchronization System (MASS)¶

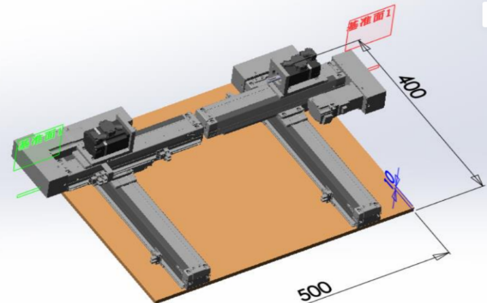

The following figure shows the setup of Multi-Axis Synchronization System (MASS).

This system setup includes motion controller, servo driver, motors, and software. The Motion Controller is an Intel-based system with ECI enabled. The Motion Controller connects eight servo drivers. The system runs a program to control six servos motors (three pairs) simultaneously through EtherCAT to control pencil leads to rotate and move horizontally and vertically.

Two other servos motors are controlled simultaneously through EtherCAT to draw a circle.

Test binary will be released in /opt/ighethercat/examples/ec_multi_axis_example.

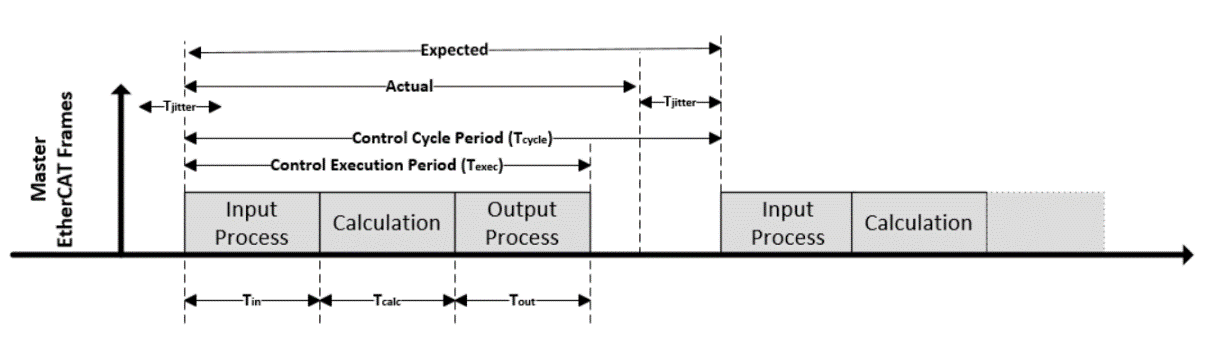

EtherCAT Control Loop and Time Measurement¶

EtherCAT Sanity Checks¶

The following section is applicable to:

Sanity Check #1: EtherCAT Master Start¶

Start EtherCAT Master:
```
$ /etc/init.d/ethercat start
```
Check Master information:
```

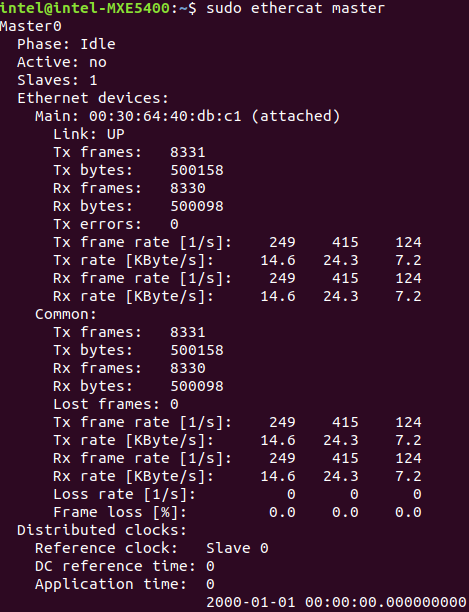

$ ethercat master
```
Expected output

Sanity Check #2: EtherCAT Master Scan¶

The following section is applicable to:

Start EtherCAT Master:
```
$ /etc/init.d/ethercat start
```
Scan EtherCAT Slave:
```
$ ethercat rescan
```
Check slaves on the bus:
```
$ ethercat slaves
```
Expected output

Sanity Check #3: MASS Platform Performance Collection¶

Use EtherCAT network cable to connect the MASS platform and the Controller, in specific the EtherCAT network interface. Power up the MASS platform.
Start EtherCAT Master:
```
$  /etc/init.d/ethercat start
```
Check EtherCAT bus to make sure that eight EtherCAT slaves are scanned and stay on PREOP status.
```

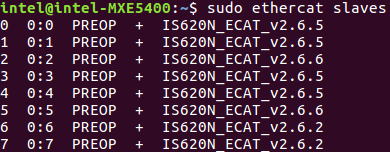

$ ethercat slaves
```
Expected output

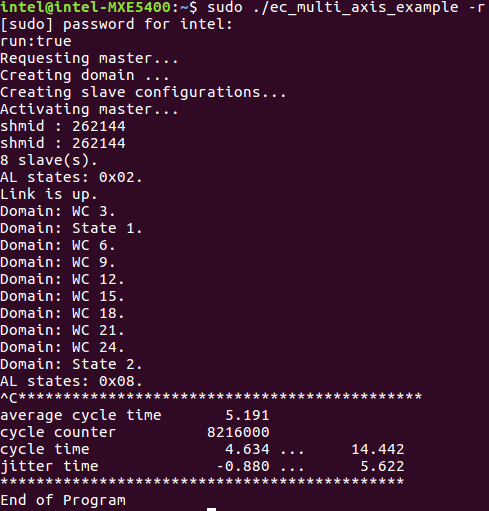

Start /opt/ighethercat/examples/ec_multi_axis_example -r to collect real-time performance:
```
$ /opt/ighethercat/examples/ec_multi_axis_example -r
```
Expected output

Tip

Useful command parameters:

-r      Motor start running
-t      Set measure time for minutes, default is no time limitation

EtherCAT Analysis with Wireshark¶

Hardware Setup¶

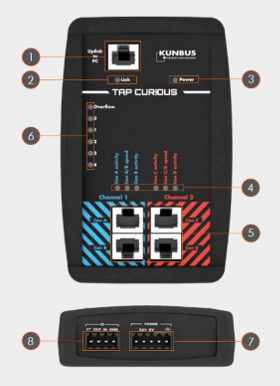

Use KUNBUS TAP CURIOUS¶

Overview

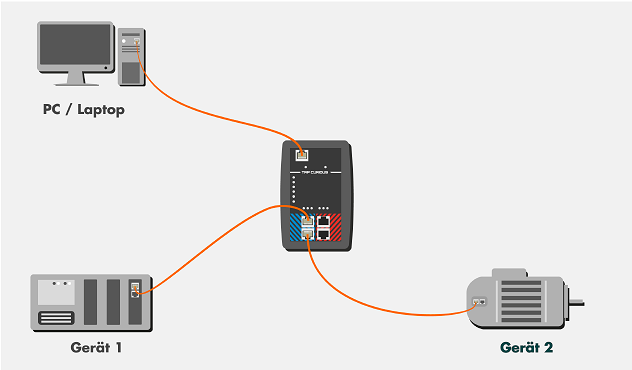

Refer to the TAP CURIOUS User Manual:

TAP_CURIOUS_User_Manual.pdf

Application Example

Software Setup¶

Start the IgH EtherCAY+T master stack.

Start the EtherCAT IO sample code:

$ /opt/ighethercat/examples/ec_ecatdio_example -t 100

Note: Useful command parameter:

-t         Set horse light cycle tick

Capture EtherCAT Packets with Wireshark¶

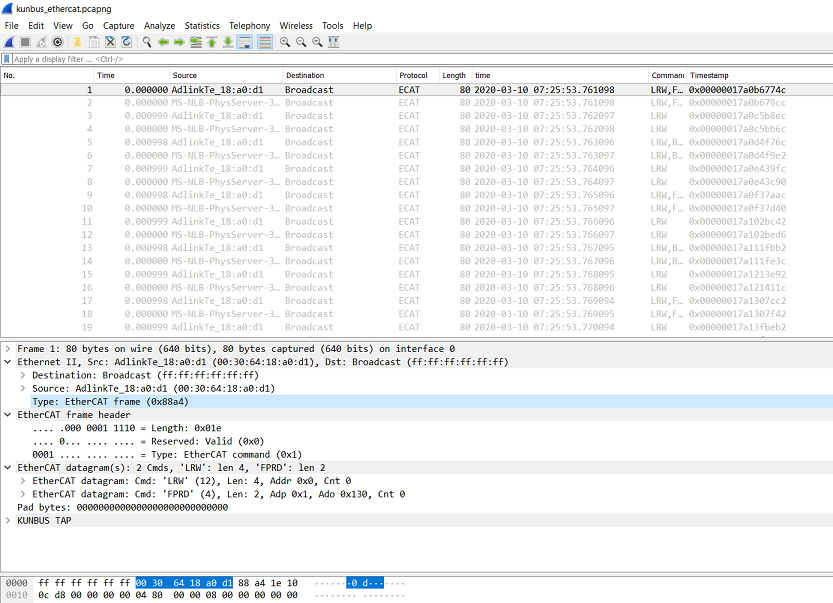

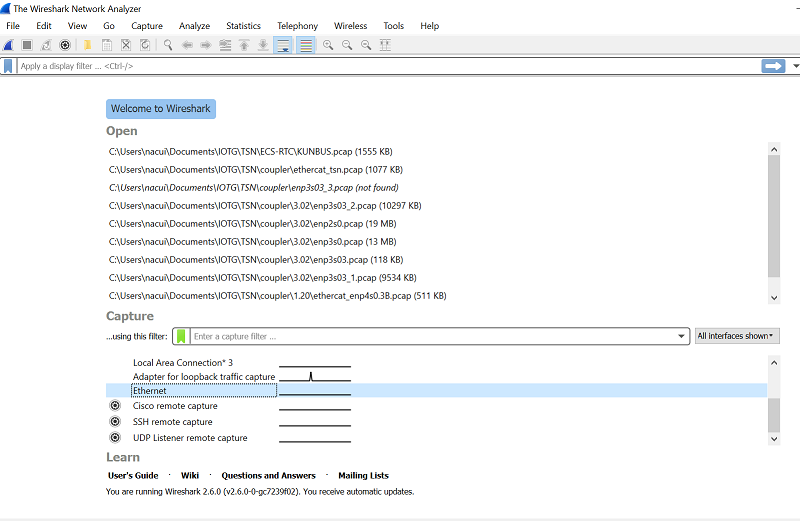

The Wireshark main window lists all available Ethernet interfaces. Click the required Ethernet interface to select it.
Use Wireshark to analyze the data.

Note: If ECAT packets are not captured, disable security software.

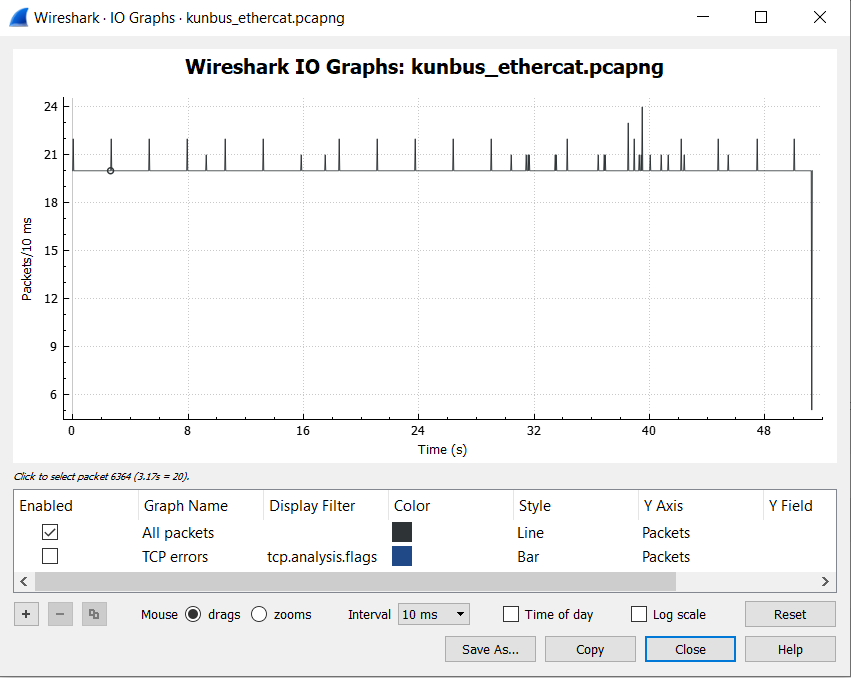

The following is a sample I/O graph.

Jitter Analysis by Wireshark¶

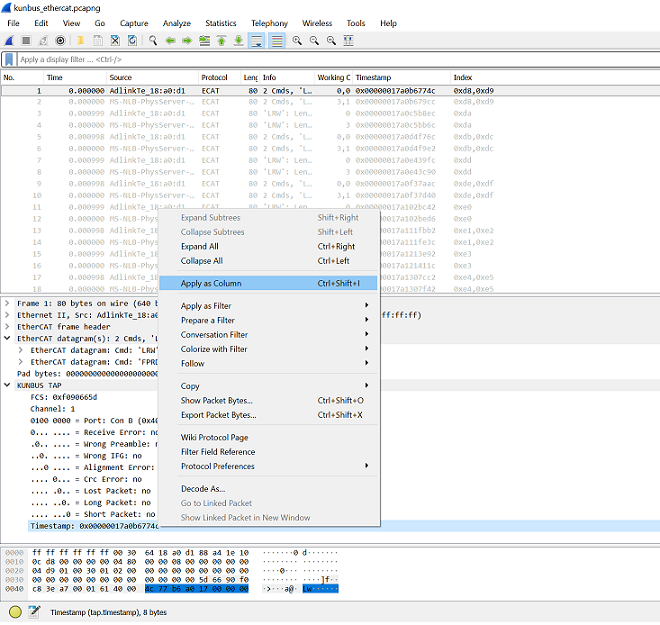

Find the timestamp in KUNBUS TAP and apply it as column.

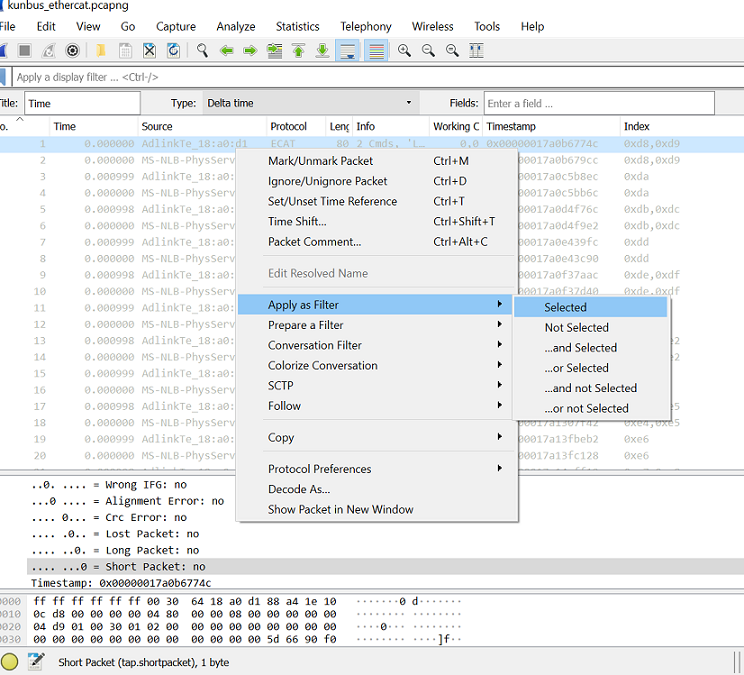

Filter the packets from master.

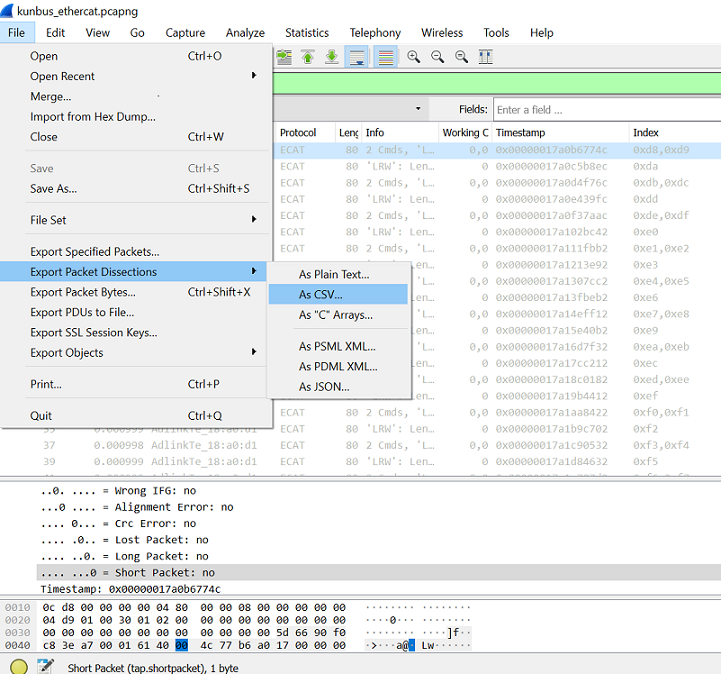

Export the data to .csv format.

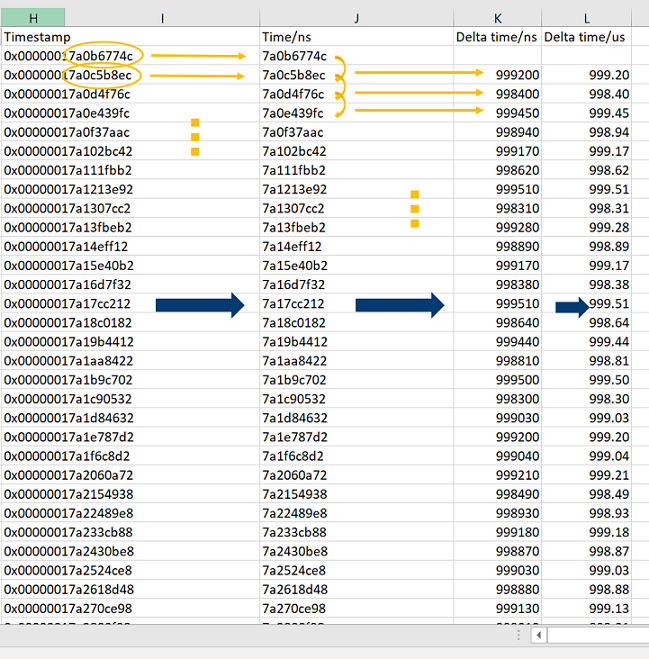

Open the data file, using Microsoft Excel, and find the timestamp column. Retrieve the last nine digits (in ns) and then calculate the delta time between two cycles.

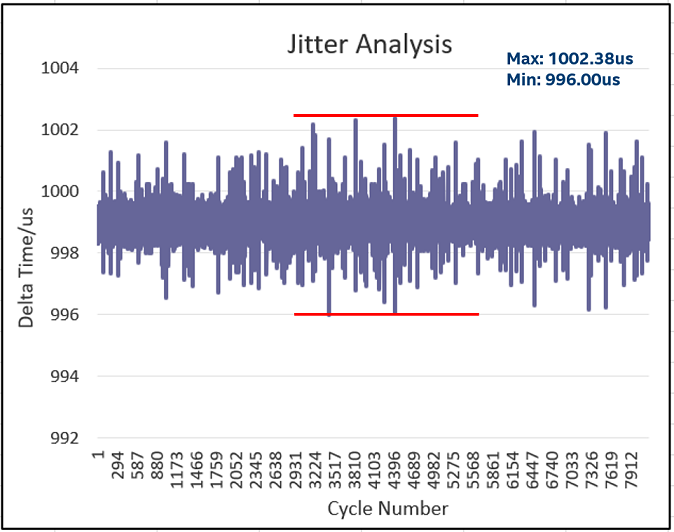

Plot the delta time graph and note the jitter +/-4us within 1ms per cycle.

EtherCAT over DPDK¶

EtherCAT over DPDK Overview¶

EtherCAT over DPDK optimizes IgH EtherCAT Master Stack running in user space on Preempt RT. It keeps all APIs from original IgH EtherCAT Master stack to seamlessly support EtherCAT application programs. Furthermore, it is easy to containerize EtherCAT stack for Virtual PLC applications.

EtherCAT over DPDK Features¶

The following features are verified:

Support on Preempt-RT
Support PDO/SDO upload/download
Support COE/SOE profiles
Support DC
Support multiple masters

EtherCAT over DPDK Installation¶

Install from meta-package

$ sudo apt install eci-softplc-fieldbus

Install from individual Deb packages

# For preempt-rt kernel
$ sudo apt install ighethercat-dpdk ighethercat-dpdk-examples ecat-enablekit-dpdk

EtherCAT over DPDK Configuration¶

Binding VFIO driver

EtherCAT over DPDK provides dpdk-driver-bind.sh script, which is installed in /usr/sbin to bind vfio driver for the EtherCAT port. Command to bind vfio driver:

$ dpdk-driver-bind.sh start <PCIe BDF address>

Command to unbind vfio driver:

$ dpdk-driver-bind.sh stop <PCIe BDF address>

EtherCAT Sysconfig File

EtherCAT over DPDK provides a ecrt.conf configuration file, which is installed at /etc/sysconfig. Users shall configure the file for one or more masters per request. Configuration details are as below:

master_id： It is the identification to match a group of configurations for a specific EtherCAT application.
master_mac： It is used to specify the Ethernet MAC address of the EtherCAT port for the EtherCAT application.
debug_level： It is used to configure the debug level, and its valid value is 0-2.
drv_argv: It supports to add extra eal parameters for dpdk framework, please refer to EAL parameters

EtherCAT Tool

As EtherCAT over DPDK supports single-core mode, EtherCAT master stack starts with the EtherCAT application by the direct lib call. That is, the EtherCAT tool cannot run independently but starts with the EtherCAT application as well. Here, EtherCAT over DPDK provides ec_debug_example application for debugging purpose. This application only starts the EtherCAT stack without any other workload. Then users can use EtherCAT tool to debug the stack as below steps:

$ /opt/ighethercat/examples/ec_debug_example -m <master id>
$ ethercat master

EtherCAT Enablekit¶

EtherCAT Enablekit Overview¶

EtherCAT EnableKit provides tools that simplify the process of customizing the configurations of EtherCAT master, slave, and network topology. It provides APIs to develop EtherCAT application programs easily. With EtherCAT EnableKit, developers can focus on what is truly important and leave the tedious configuration process to the system.

EtherCAT Enablekit Features¶

The following features are included:

Based on IgH EtherCAT Master Stack
Supports both Preempt-RT and Xenomai
Includes functions to parse EtherCAT Network Information (ENI)
Includes functions to parse EtherCAT Slave Information (ESI)
Provides APIs to develop EtherCAT application programs easily
Provides example code to drive EtherCAT IO slaves
Provides example code to drive EtherCAT CoE slaves (SOE is not currently supported)

EtherCAT Enablekit Architecture¶

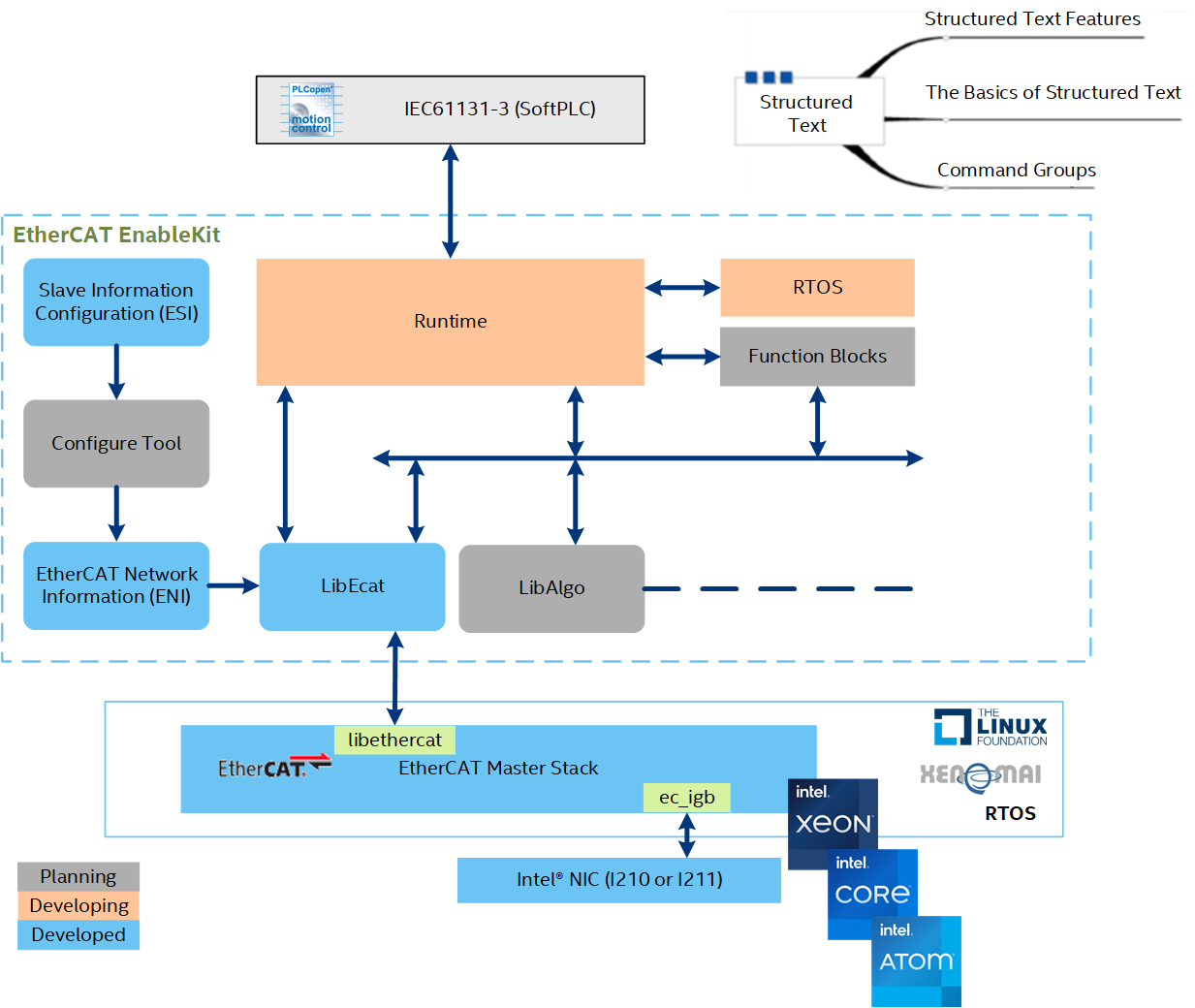

The following figure shows the EtherCAT Enablekit architecture:

EtherCAT Enablekit Code Sample¶

EtherCAT Enablekit Requirements¶

The software can run on commodity PC or Server. The software is developed primarily in C language, so it should be straightforward to port to other operating systems.

EtherCAT Enablekit Sanity Checks¶

The following section is applicable to:

Sanity Check #1: ESI Parsing¶

Navigate to the /opt/ecat-enablekit directory:
```
$ cd /opt/ecat-enablekit
```
Test the ESI file, for example esi_xxx.xml, with option -s:
```
$ ./test-motion -s esi_xxx.xml
```

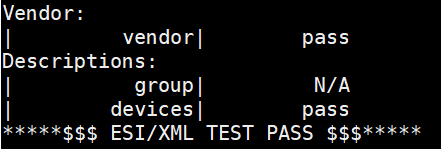

Expected output

Sanity Check #2: ENI Parsing¶

Navigate to the /opt/ecat-enablekit directory:
```
$ cd /opt/ecat-enablekit
```
Test the ENI file, for example, eni_xxx.xml, with option -n:
```
$ ./test-motion -n eni_xxx.xml
```

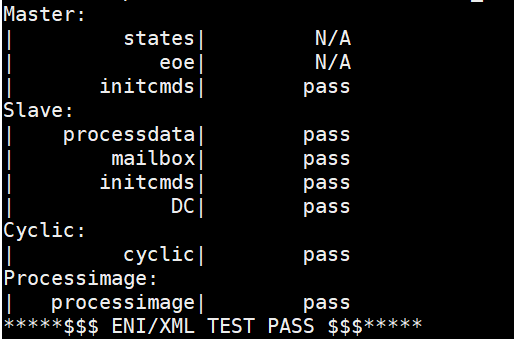

Expected output

Real-Time Vision with EtherCAT¶

The real-time vision provides a deterministic way to complete synchronization between motion control and image capture even when the object is moving at a high speed. The stopping time can be saved, thus improving efficiency and productivity.

The key to achieving the synchronization is the time-aware IO. An EtherCAT IO with timestamping can be utilized to trigger a deterministic capturing for an accurate image. You can also apply Time-aware GPIO by following the guidelines in Intel TCC Tools - Enable Linux Time-Aware GPIO. Then, machine vision can process the accurate image to provide precise position offset and angle offset for next-step motion control.

Usage Case¶

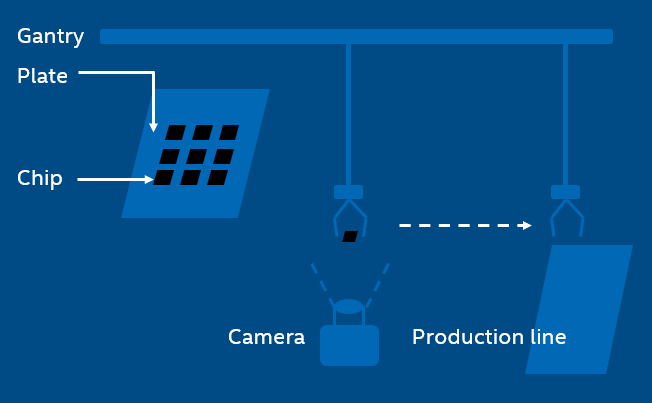

The following figure shows an example of a SMT production line.

In the SMT production line, the gantry with a sucker sucks a chip from the plate and then mounts on the PCB. However, it is not always able to hit the expected point and the expected angle of the chip during the suction.

Even little shift can lead to deviation, making it impossible to mount the chip in the right place eve later. After image capturing, the machine vision helps to compute position/angel offset value of the chip for perfect mounting.

In the traditional way, the gantry will stop above the camera and wait for a while for image capturing. This is not necessary when applying real-time vision, thus improving efficiency significantly.

Work Flow¶

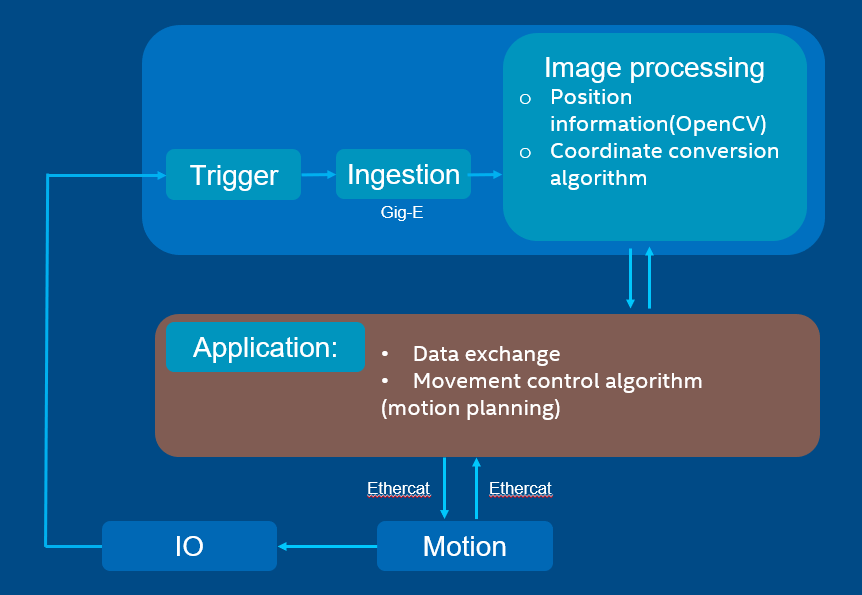

The application controls the motion by EtherCAT and synchronizes with IO. When reaching the target timing, IO will trigger the camera to capture an image. The image is then processed with machine vision to provide the position value and the angel value. By data exchange, the application continues the motion control with position information.

Solution Principle¶

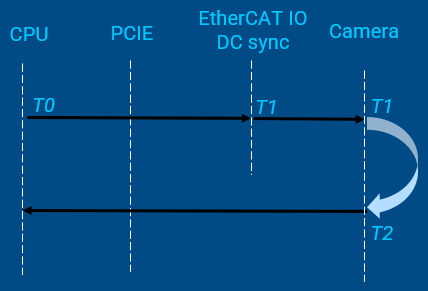

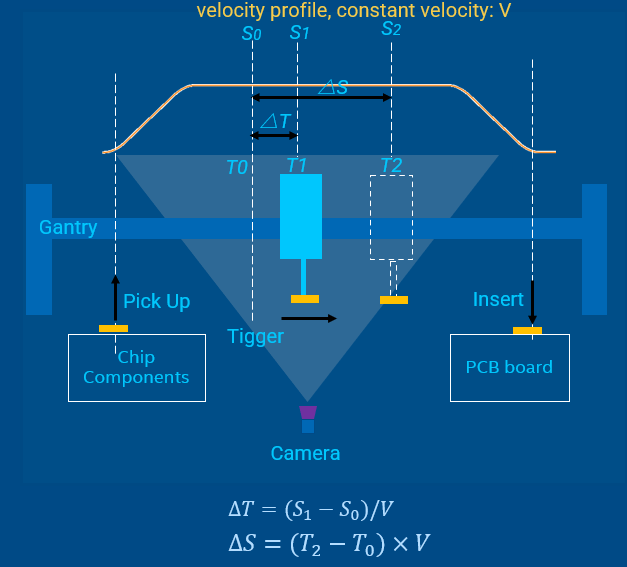

T0 is the time when CPU sends shooting command
S0 is the position to prepare trigger shooting, which can be read in cyclic task. It corresponds to T0
T1 is the time to trigger the picture shooting
S1 is the expected fixed position to trigger shooting
△T can be calculated with ∆𝑇=(𝑆_1−𝑆_0)/𝑉
T2 is the time when the image is captured on CMOS
S2 reflects the real position where the image is capturing.
The time between T2 and T1 is used for camera exposure and image generating
Real-time vision should make the time intervals (T2 - T1) and (T1 – T0) deterministic

Example Demonstration¶

The demo code is integrated into IgH EtherCAT stack components as an example and is in /usr/src/ighethercat-dkms-1.5.2/examples/fly_trigger_poc.
