Use Linux Events Tracing (ftrace) to Report Latency Outliers¶

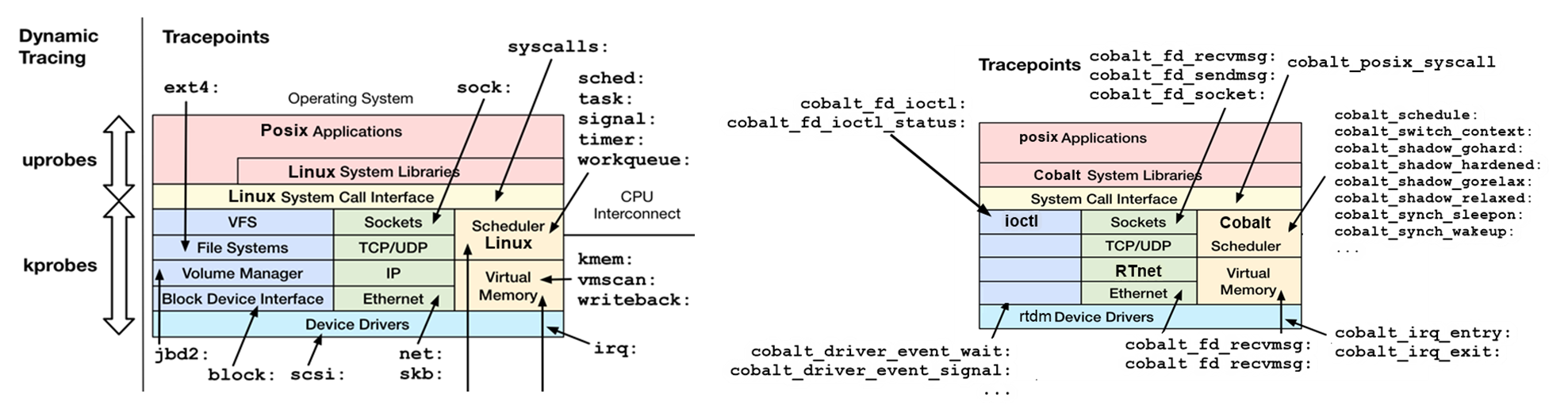

Linux real-time communities use best-known-methods to enable trace-event in PREEMPT_RT and XENOMAI OS runtime, also known as tracepoints.
Linux system events tracing is built-in with every Linux* Intel® Debian* image, however it must be enabled on certain Linux distribution configurations:
Review the kernel configuration actively running:
$ zcat /proc/config.gz | less
If not, review any kernel alternative already installed:
$ cat /boot/config-5.10.0-16-amd64 | less
Check if the kernel configuration enables the following items:
# Add Tracers and Events CONFIG_TRACING=y CONFIG_TRACEPOINTS=y CONFIG_TRACING_SUPPORT=y CONFIG_HIST_TRIGGERS=y CONFIG_EVENT_TRACING=y CONFIG_DYNAMIC_FTRACE=y CONFIG_FUNCTION_TRACER=y CONFIG_KPROBE_EVENTS=y CONFIG_PROBE_EVENTS=y # Add Kernel Probe CONFIG_KPROBES=y CONFIG_JUMP_LABEL=y CONFIG_KPROBES_ON_FTRACE=y CONFIG_KRETPROBES=y CONFIG_USER_RETURN_NOTIFIER=y CONFIG_HAVE_IOREMAP_PROT=y CONFIG_HAVE_KPROBES=y CONFIG_HAVE_KRETPROBES=y CONFIG_HAVE_KPROBES_ON_FTRACE=y
Linux Events Tracing¶
The Linux trace events can be enabled to troubleshoot multi-thread scheduling issues. For example:
Linux thread scheduling FSM representation using
sched_switchandsched_wakeupeventsLinux interrupt handlers top-half and threaded bottom-half representation using all
irqeventsLinux CPU idle and frequency representation using
cpu_idle, andclock_set_rateandcpu_frequencyeventsLinux kernel drivers work-queues job representation using all
workqueueevents
This translates into the following commands:
Enable ONLY the relevant events among all
/sys/kernel/debug/tracing/available_events:$ echo 1 > /sys/kernel/debug/tracing/events/sched/sched_switch/enable $ echo 1 > /sys/kernel/debug/tracing/events/sched/sched_wakeup/enable $ echo 1 > /sys/kernel/debug/tracing/events/power/cpu_idle/enable $ echo 1 > /sys/kernel/debug/tracing/events/power/cpu_frequency/enable $ echo 1 > /sys/kernel/debug/tracing/events/power/clock_set_rate/enable $ echo 1 > /sys/kernel/debug/tracing/events/workqueue/enable $ echo 1 > /sys/kernel/debug/tracing/events/irq/enable $ echo 100000 > /sys/kernel/debug/tracing/buffer_size_kb $ echo 1 > /sys/kernel/debug/tracing/options/record-tgid $ echo 0 > /sys/kernel/debug/tracing/options/overwrite $ echo global > /sys/kernel/debug/tracing/trace_clock
Clean buffer and start a new trace record:
$ echo > /sys/kernel/debug/tracing/trace $ echo 1 > /sys/kernel/debug/tracing/tracing_on
Stop trace and redirect
stdouttrace buffer to a temporary file:$ echo 0 > /sys/kernel/debug/tracing/tracing_on $ cat /sys/kernel/debug/tracing/trace > /tmp/trace.txt
Download

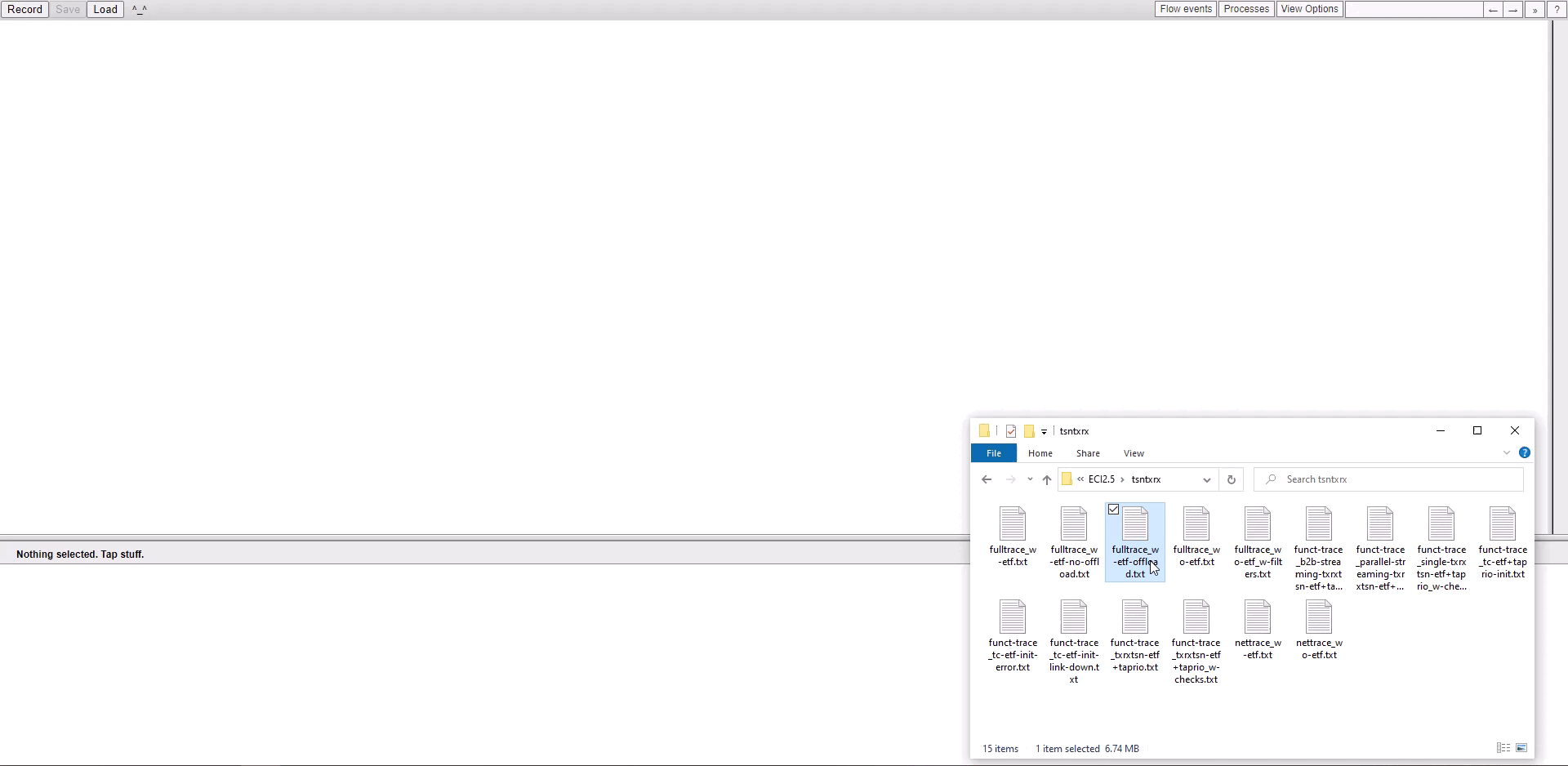

trace.txtfile to a computer, open timeviewer HTML page, load (or dragging and dropping) to represent TSN events timeline, and perform a deep-dive analysis.Note: Google* Chrome/Chromium or Microsoft* Edge are recommended. Opera* and Safari* browsers were not tried, but are potential alternatives. Firefox* may be slow. Microsoft IE browser is not compatible.
Disable all system trace events:
$ echo 0 | tee $(find /sys/kernel/debug/tracing/events -name enable | xargs grep 1 | cut -d ":" -f1)
Linux Events Latency Histograms¶
Important
If CONFIG_HIST_TRIGGERS and CONFIG_PROBE_EVENTS are enabled, refer to kernel tracing.
A more advanced usage model can leverage Linux system events as synthetic trace-event and combine it with hist:keys trigger to add time-variable condition with every event recorded and reduce the record for long-runs to ONLY specific events under particular OS runtime conditions.
Example 1: Measuring af_packet ``sendmsg()`` Outliers
If you require a custom record containing every af_packet and the sendmsg() function is ONLY called by the rt-comms thread (for example, txrx-tsn), then:
Add one dynamic event (kprobe) at the entry of
packet_sendmsg()Add one dynamic event at the return of
packet_sendmsg()Configure the trigger on the
packet_sendmsg()function, call entry event, and collect the timestamp in microsecondsConfigure the trigger on the
packet_sendmsg()function, call return event, and calculate the latency
This translates into the following commands:
Filter all functions except
packet_sendmsgand probe event entry and return:$ echo 0 >/sys/kernel/debug/tracing/tracing_on $ echo >/sys/kernel/debug/tracing/trace > /dev/null $ echo "nop" >/sys/kernel/debug/tracing/current_tracer > /dev/null $ echo "packet_sendmsg" >/sys/kernel/debug/tracing/set_ftrace_filter $ perf probe packet_sendmsg $ perf probe -f packet_sendmsg%return
Create a synthetic_event ->
packet_sendmsg_latency(int pid, u64 latency):$ echo 'packet_sendmsg_latency int pid; u64 lat' > /sys/kernel/debug/tracing/synthetic_events $ echo 'hist:keys=common_pid:ts0=common_timestamp.usecs if comm=="txrx-tsn"' \ >/sys/kernel/debug/tracing/events/probe/packet_sendmsg/trigger $ echo 'hist:keys=common_pid:sendmsg_latency=common_timestamp.usecs-$ts0:onmatch(probe.packet_sendmsg).packet_sendmsg_latency(common_pid,$sendmsg_latency) if comm=="txrx-tsn"' \ > /sys/kernel/debug/tracing/events/probe/packet_sendmsg__return/trigger $ echo 'hist:keys=lat:sort=lat'> /sys/kernel/debug/tracing/events/synthetic/packet_sendmsg_latency/trigger
Run the application (for example, txrx-tsn) with tracing enabled and report af_packet transfer of
synthetic_eventas latency histogram:$ cd /opt/intel/iotg_tsn_ref_sw $ echo 1 > /sys/kernel/debug/tracing/tracing_on && \ $ taskset -c 1 ./txrx-tsn -v -i enp3s0 -t -P -l 64 -q 1 > /tmp/igb-afpk1a_no-offload.txt && \ $ echo 0 > /sys/kernel/debug/tracing/tracing_on $ cat /sys/kernel/debug/tracing/events/synthetic/packet_sendmsg_latency/hist
Click to toggle Example output
# event histogram # # trigger info: hist:keys=pid,lat:vals=hitcount:sort=pid,lat:size=2048 [active] # { pid: 1875, lat: 6 } hitcount: 1 { pid: 1875, lat: 7 } hitcount: 2 { pid: 1875, lat: 10 } hitcount: 3 { pid: 1875, lat: 11 } hitcount: 4239 { pid: 1875, lat: 12 } hitcount: 13782 { pid: 1875, lat: 13 } hitcount: 1282 { pid: 1875, lat: 14 } hitcount: 706 { pid: 1875, lat: 15 } hitcount: 54 { pid: 1875, lat: 16 } hitcount: 12 { pid: 1875, lat: 17 } hitcount: 15 { pid: 1875, lat: 18 } hitcount: 13 { pid: 1875, lat: 19 } hitcount: 4 { pid: 1875, lat: 20 } hitcount: 5 { pid: 1875, lat: 21 } hitcount: 6 { pid: 1875, lat: 22 } hitcount: 3 { pid: 1875, lat: 23 } hitcount: 4 { pid: 1875, lat: 24 } hitcount: 3 { pid: 1875, lat: 25 } hitcount: 5 { pid: 1875, lat: 26 } hitcount: 4 { pid: 1875, lat: 27 } hitcount: 1 { pid: 1875, lat: 28 } hitcount: 2 { pid: 1875, lat: 29 } hitcount: 1 { pid: 1875, lat: 30 } hitcount: 1 Totals: Hits: 20149 Entries: 23 Dropped: 0
Example 2: Measuring af_packet Inter-event Outliers

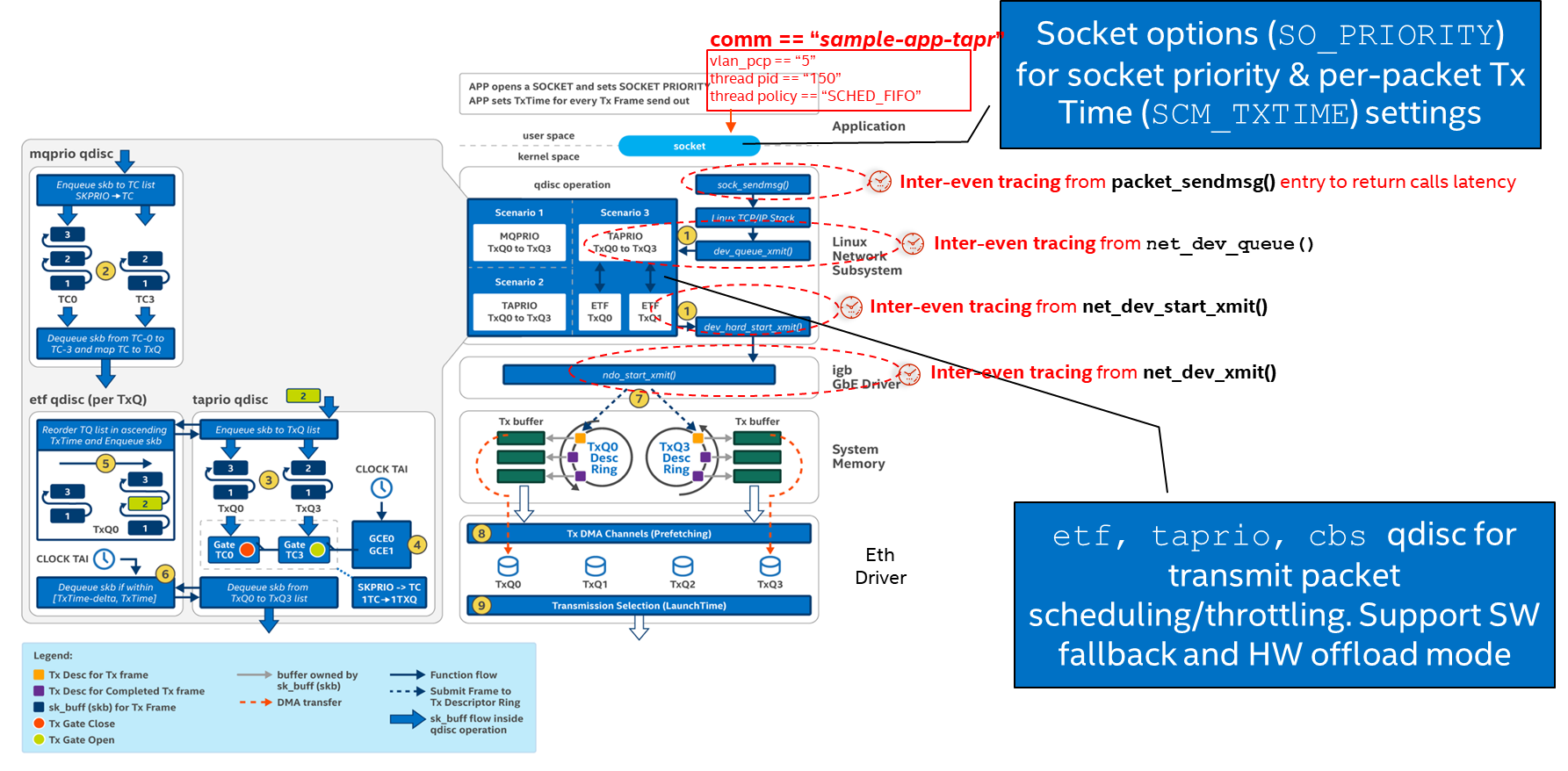

If you need a custom record, breaking down individual latency contribution across multiple kernel functions for every af_packet, and the sendmsg() function is ONLY called by the rt-comms thread (for example, txrx-tsn), then:
Add one dynamic event (kprobe) at the entry of
packet_sendmsg()Add one dynamic event at the return of
packet_sendmsg()Configure the trigger on the
packet_sendmsg()function, call entry event, and collect the timestamp in usecsConfigure the trigger on the kernel network events
net_dev_queue,net_dev_start_xmit, andnet_dev_xmitand calculate the latency
This translates into the following commands:
Filter all functions except
packet_sendmsgand probe event entry and return:$ echo 0 >/sys/kernel/debug/tracing/tracing_on $ echo >/sys/kernel/debug/tracing/trace > /dev/null $ echo "nop" >/sys/kernel/debug/tracing/current_tracer > /dev/null $ echo "packet_sendmsg" >/sys/kernel/debug/tracing/set_ftrace_filter $ perf probe packet_sendmsg $ perf probe -f packet_sendmsg%return
Create a synthetic_event ->
latency(int pid, u64 latency)for function call (packet_sendmsg) and kernel network events (net_dev_queue,net_dev_start_xmit, andnet_dev_xmit):Run the application (for example, txrx-tsn) with tracing enabled and report inter-event latency histogram:
$ cd /opt/intel/iotg_tsn_ref_sw/ $ echo > /sys/kernel/debug/tracing/trace && \ $ echo 1 > /sys/kernel/debug/tracing/tracing_on && \ $ taskset -c 1 ./txrx-tsn -v -i enp3s0 -t -P -l 64 -q 1 > /tmp/igb-afpk1a_no-offload.txt && \ $ echo 0 > /sys/kernel/debug/tracing/tracing_on $ cat /sys/kernel/debug/tracing/events/synthetic/net_proto_latency/hist $ cat /sys/kernel/debug/tracing/events/synthetic/net_startxmit_latency/hist $ cat /sys/kernel/debug/tracing/events/synthetic/net_xmit_latency/hist $ cat /sys/kernel/debug/tracing/events/synthetic/packet_sendmsg_latency/hist
Click to toggle Example output
net_proto_latency # event histogram # # trigger info: hist:keys=pid,lat:vals=hitcount:sort=pid,lat:size=2048 [active] # { pid: 1784, lat: 4 } hitcount: 50 { pid: 1784, lat: 5 } hitcount: 13612 { pid: 1784, lat: 6 } hitcount: 5941 { pid: 1784, lat: 7 } hitcount: 818 { pid: 1784, lat: 8 } hitcount: 62 { pid: 1784, lat: 9 } hitcount: 12 { pid: 1784, lat: 10 } hitcount: 3 { pid: 1784, lat: 11 } hitcount: 2 { pid: 1784, lat: 12 } hitcount: 3 { pid: 1784, lat: 13 } hitcount: 3 { pid: 1784, lat: 14 } hitcount: 4 { pid: 1784, lat: 15 } hitcount: 1 { pid: 1784, lat: 16 } hitcount: 3 { pid: 1784, lat: 17 } hitcount: 3 Totals: Hits: 20517 Entries: 14 Dropped: 0 net_startxmit_latency # event histogram # # trigger info: hist:keys=pid,lat:vals=hitcount:sort=pid,lat:size=2048 [active] # { pid: 1784, lat: 8 } hitcount: 8764 { pid: 1784, lat: 9 } hitcount: 11587 { pid: 1784, lat: 10 } hitcount: 92 { pid: 1784, lat: 11 } hitcount: 8 { pid: 1784, lat: 12 } hitcount: 17 { pid: 1784, lat: 13 } hitcount: 14 { pid: 1784, lat: 14 } hitcount: 12 { pid: 1784, lat: 15 } hitcount: 7 { pid: 1784, lat: 16 } hitcount: 6 { pid: 1784, lat: 17 } hitcount: 2 { pid: 1784, lat: 18 } hitcount: 4 { pid: 1784, lat: 19 } hitcount: 1 { pid: 1784, lat: 20 } hitcount: 1 { pid: 1784, lat: 22 } hitcount: 1 { pid: 1784, lat: 24 } hitcount: 1 Totals: Hits: 20517 Entries: 15 Dropped: 0 net_xmit_latency # event histogram # # trigger info: hist:keys=pid,lat:vals=hitcount:sort=pid,lat:size=2048 [active] # { pid: 1784, lat: 3 } hitcount: 10619 { pid: 1784, lat: 4 } hitcount: 9847 { pid: 1784, lat: 5 } hitcount: 32 { pid: 1784, lat: 6 } hitcount: 8 { pid: 1784, lat: 8 } hitcount: 2 { pid: 1784, lat: 9 } hitcount: 3 { pid: 1784, lat: 10 } hitcount: 1 { pid: 1784, lat: 11 } hitcount: 2 { pid: 1784, lat: 12 } hitcount: 1 { pid: 1784, lat: 13 } hitcount: 1 { pid: 1784, lat: 14 } hitcount: 1 Totals: Hits: 20517 Entries: 11 Dropped: 0 packet_sendmsg_latency # event histogram # # trigger info: hist:keys=pid,lat:vals=hitcount:sort=pid,lat:size=2048 [active] # { pid: 1784, lat: 3 } hitcount: 5921 { pid: 1784, lat: 4 } hitcount: 14511 { pid: 1784, lat: 5 } hitcount: 39 { pid: 1784, lat: 6 } hitcount: 24 { pid: 1784, lat: 7 } hitcount: 6 { pid: 1784, lat: 8 } hitcount: 4 { pid: 1784, lat: 9 } hitcount: 5 { pid: 1784, lat: 10 } hitcount: 7 Totals: Hits: 20517 Entries: 8 Dropped: 0
Add synthetic events to trace events logging to further investigate latency outliers:
$ echo 1 > /sys/kernel/debug/tracing/events/synthetic/packet_sendmsg_latency/enable $ echo 1 > /sys/kernel/debug/tracing/events/synthetic/net_proto_latency/enable $ echo 1 > /sys/kernel/debug/tracing/events/synthetic/net_startxmit_latency/enable $ echo 1 > /sys/kernel/debug/tracing/events/synthetic/net_xmit_latency/enable
Click to toggle Example output
# tracer: nop # # entries-in-buffer/entries-written: 4000/4000 #P:4 # # _-------=> irqs-off # / _------=> need-resched # | / _-----=> need-resched-lazy # || / _----=> hardirq/softirq # ||| / _---=> preempt-depth # |||| / _--=> preempt-lazy-depth # ||||| / _-=> migrate-disable # |||||| / delay # TASK-PID TGID CPU# ||||||| TIMESTAMP FUNCTION # | | | | ||||||| | | txrx-tsn-24071 ( 24071) [001] ....212 58055.400670: net_proto_latency: pid=24071 lat=17 txrx-tsn-24071 ( 24071) [001] ....215 58055.400691: net_startxmit_latency: pid=24071 lat=26 txrx-tsn-24071 ( 24071) [001] .N..215 58055.400725: net_xmit_latency: pid=24071 lat=19 txrx-tsn-24071 ( 24071) [001] dN..3.. 58055.400767: packet_sendmsg_latency: pid=24071 lat=56 txrx-tsn-24071 ( 24071) [001] ....212 58055.401220: net_proto_latency: pid=24071 lat=11 txrx-tsn-24071 ( 24071) [001] ....215 58055.401230: net_startxmit_latency: pid=24071 lat=12 txrx-tsn-24071 ( 24071) [001] ....215 58055.401240: net_xmit_latency: pid=24071 lat=9 txrx-tsn-24071 ( 24071) [001] d...3.. 58055.401246: packet_sendmsg_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] ....212 58055.401324: net_proto_latency: pid=24071 lat=6 txrx-tsn-24071 ( 24071) [001] ....215 58055.401333: net_startxmit_latency: pid=24071 lat=9 txrx-tsn-24071 ( 24071) [001] ....215 58055.401339: net_xmit_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] d...3.. 58055.401345: packet_sendmsg_latency: pid=24071 lat=5 txrx-tsn-24071 ( 24071) [001] ....212 58055.401416: net_proto_latency: pid=24071 lat=6 txrx-tsn-24071 ( 24071) [001] ....215 58055.401424: net_startxmit_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] ....215 58055.401429: net_xmit_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] d...3.. 58055.401434: packet_sendmsg_latency: pid=24071 lat=4 txrx-tsn-24071 ( 24071) [001] ....212 58055.401505: net_proto_latency: pid=24071 lat=6 txrx-tsn-24071 ( 24071) [001] ....215 58055.401512: net_startxmit_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] ....215 58055.401518: net_xmit_latency: pid=24071 lat=6 txrx-tsn-24071 ( 24071) [001] d...3.. 58055.401523: packet_sendmsg_latency: pid=24071 lat=5 txrx-tsn-24071 ( 24071) [001] ....212 58055.401596: net_proto_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] ....215 58055.401604: net_startxmit_latency: pid=24071 lat=8 txrx-tsn-24071 ( 24071) [001] ....215 58055.401609: net_xmit_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] d...3.. 58055.401613: packet_sendmsg_latency: pid=24071 lat=4 txrx-tsn-24071 ( 24071) [001] ....212 58055.401687: net_proto_latency: pid=24071 lat=8 txrx-tsn-24071 ( 24071) [001] ....215 58055.401694: net_startxmit_latency: pid=24071 lat=8 txrx-tsn-24071 ( 24071) [001] ....215 58055.401699: net_xmit_latency: pid=24071 lat=6 txrx-tsn-24071 ( 24071) [001] d...3.. 58055.401704: packet_sendmsg_latency: pid=24071 lat=4 txrx-tsn-24071 ( 24071) [001] ....212 58055.401776: net_proto_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] ....215 58055.401782: net_startxmit_latency: pid=24071 lat=7 txrx-tsn-24071 ( 24071) [001] ....215 58055.401788: net_xmit_latency: pid=24071 lat=6 txrx-tsn-24071 ( 24071) [001] d...3.. 58055.401792: packet_sendmsg_latency: pid=24071 lat=5
Disable tracing and clean inter-event latency histogram:
$ echo '!hist:keys=pid,lat:sort=pid,lat' >> /sys/kernel/debug/tracing/events/synthetic/packet_sendmsg_latency/trigger $ echo '!hist:keys=pid,lat:sort=pid,lat' >> /sys/kernel/debug/tracing/events/synthetic/net_proto_latency/trigger $ echo '!hist:keys=pid,lat:sort=pid,lat' >> /sys/kernel/debug/tracing/events/synthetic/net_startxmit_latency/trigger $ echo '!hist:keys=pid,lat:sort=pid,lat' >> /sys/kernel/debug/tracing/events/synthetic/net_xmit_latency/trigger $ echo '!hist:keys=common_pid:sendmsg_latency=common_timestamp.usecs-$ts3:onmatch(net.net_dev_xmit).packet_sendmsg_latency(common_pid,$sendmsg_latency) if comm=="txrx-tsn"' \ > /sys/kernel/debug/tracing/events/probe/packet_sendmsg__return/trigger $ echo '!hist:keys=common_pid:ts3=common_timestamp.usecs:xmit_latency=$ts3-$ts2:onmatch(net.net_dev_start_xmit).net_xmit_latency(common_pid,$xmit_latency) if comm=="txrx-tsn"' \ > /sys/kernel/debug/tracing/events/net/net_dev_xmit/trigger $ echo '!hist:keys=common_pid:ts2=common_timestamp.usecs:startxmit_latency=$ts2-$ts1:onmatch(net.net_dev_queue).net_startxmit_latency(common_pid,$startxmit_latency) if comm=="txrx-tsn"' \ > /sys/kernel/debug/tracing/events/net/net_dev_start_xmit/trigger $ echo '!hist:keys=common_pid:ts1=common_timestamp.usecs:proto_latency=$ts1-$ts0:onmatch(probe.packet_sendmsg).net_proto_latency(common_pid,$proto_latency) if comm=="txrx-tsn"' \ > /sys/kernel/debug/tracing/events/net/net_dev_queue/trigger $ echo '!hist:keys=common_pid:ts0=common_timestamp.usecs if comm=="txrx-tsn"' \ > /sys/kernel/debug/tracing/events/probe/packet_sendmsg/trigger $ echo 0 >> /sys/kernel/debug/tracing/events/synthetic/packet_sendmsg_latency/enable $ echo 0 >> /sys/kernel/debug/tracing/events/synthetic/net_proto_latency/enable $ echo 0 >> /sys/kernel/debug/tracing/events/synthetic/net_startxmit_latency/enable $ echo 0 >> /sys/kernel/debug/tracing/events/synthetic/net_xmit_latency/enable $ echo '!packet_sendmsg_latency int pid; u64 lat;' >> /sys/kernel/debug/tracing/synthetic_events $ echo '!net_proto_latency int pid; u64 lat;' >> /sys/kernel/debug/tracing/synthetic_events $ echo '!net_startxmit_latency int pid; u64 lat;' >> /sys/kernel/debug/tracing/synthetic_events $ echo '!net_xmit_latency int pid; u64 lat;' >> /sys/kernel/debug/tracing/synthetic_events $ perf probe --del packet_sendmsg $ perf probe --del packet_sendmsg__return $ echo > /sys/kernel/debug/tracing/set_ftrace_filter $ echo >/sys/kernel/debug/tracing/trace > /dev/null
