ACRN Hypervisor¶

ACRN™ is a, flexible, lightweight reference hypervisor, built with real-time and safety-criticality in mind, and optimized to streamline embedded development through an open source platform. ACRN defines a device hypervisor reference stack and an architecture for running multiple software subsystems, managed securely, on a consolidated system by means of a virtual machine manager (VMM). It also defines a reference framework implementation for virtual device emulation, called the “ACRN Device Model”.

The ACRN Hypervisor is a Type 1 reference hypervisor stack, running directly on the bare-metal hardware, and is suitable for a variety of IoT and embedded device solutions. The ACRN hypervisor addresses the gap that currently exists between datacenter hypervisors, and hard partitioning hypervisors. The ACRN hypervisor architecture partitions the system into different functional domains, with carefully selected user VM sharing optimizations for IoT and embedded devices.

For the most recent documentation on ACRN, refer to the project documentation.

Attention

The ACRN Hypervisor is actively being developed and has not yet reached maturity. Refer to Validated Hardware Platforms for a list of platforms validated with ACRN. Additional platform support may be limited. For details on the active issues, refer to this list.

ACRN Terminology¶

Term	Description
VM	Hypervised operating systems (OS) are referred to as virtual machines or VMs.
Service VM	Since ACRN is a Type 1 hypervisor, the OS in which the ACRN tools reside is also virtualized. This virtualized OS is commonly referred to as Service VM, Service OS, and SOS.
User VM	VMs other than the Service VMs are commonly referred to as User VM, Guest VM, Guest OS, User OS, and UOS.

ECI ACRN Scenario¶

The ACRN solutions that ECI provide are generic and designed to be compatible with most applications. Specifically, ECI compiles ACRN with an ACRN Scenario named eci-shared.xml, which defines the following VM configurations:

VM Name	Memory	CPU Affinity	VM Type	IVSHMEM	SSRAM	Passthrough
Service VM	N/A	0	N/A	N/A	N/A	None
POST_STD_VM1	4096M	0,1,2,3	Post-launch, Standard	`dm:/shmem,128`	Yes	None
POST_RT_VM1	4096M	0,1,2,3	Post-launch, Real-time	`dm:/shmem,128`	Yes	None
POST_STD_VM2	4096M	0,1,2,3	Post-launch, Standard	`dm:/shmem,128`	Yes	None

Note: Most VM parameters can be overridden during runtime when invoking the ACRN device manager acrn-dm. See ACRN Device Model Example Parameters for the list of example parameters that can be passed to the acrn-dm tool.

If this eci-shared.xml generic ACRN scenario does not meet your application requirements, create your own ACRN scenario and recompile ACRN. For more information, refer to Compile ACRN for Different Platforms.

ACRN Prerequisites¶

The following section is applicable to:

To use boot and ACRN, certain BIOS settings need to be configured. Do the following to configure the BIOS settings:

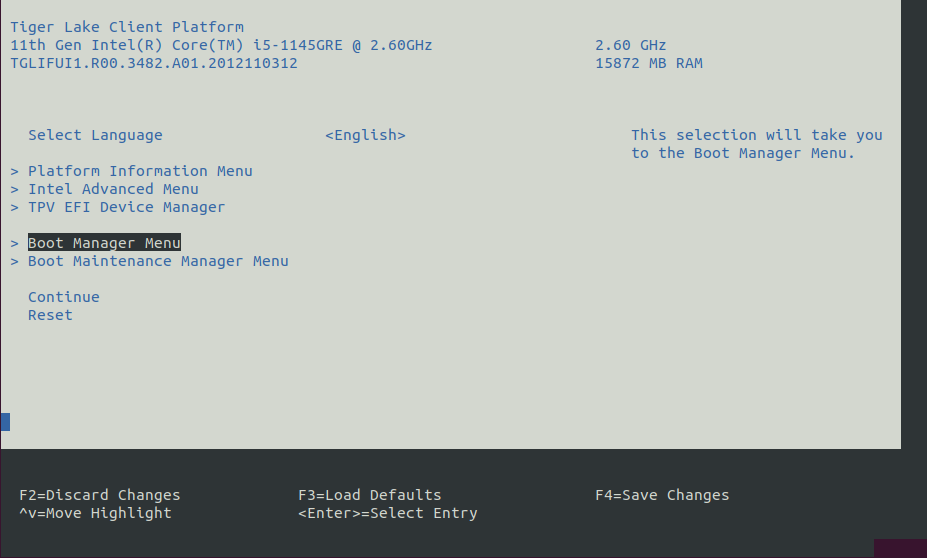

Boot the target system and access the BIOS (typically pressing the delete or F2 keys while booting will open the BIOS menu).
Select Restore Defaults or Load Defaults and then select Save Changes and Reset. As the target system boots, access the BIOS again (as per Step 1).

Modify the BIOS configuration as listed in the following table.

Note: The available configurations depend on the platform, BIOS in use, or both. In this case, modify as many configurations as possible.

Setting Name	Option	Setting Menu
Hyper-Threading	Disabled	Intel Advanced Menu ⟶ CPU Configuration
Intel (VMX) Virtualization	Enabled	Intel Advanced Menu ⟶ CPU Configuration
Intel(R) SpeedStep	Disabled	Intel Advanced Menu ⟶ Power & Performance ⟶ CPU - Power Management Control
Turbo Mode	Disabled	Intel Advanced Menu ⟶ Power & Performance ⟶ CPU - Power Management Control
C States	Disabled	Intel Advanced Menu ⟶ Power & Performance ⟶ CPU - Power Management Control
RC6 (Render Standby)	Disabled	Intel Advanced Menu ⟶ Power & Performance ⟶ GT - Power Management Control
VT-d	Enabled	Intel Advanced Menu ⟶ System Agent (SA) Configuration
Above 4GB MMIO BIOS assignment	Disabled	Intel Advanced Menu ⟶ System Agent (SA) Configuration
PM Support	Enabled	Intel Advanced Menu ⟶ System Agent (SA) Configuration ⟶ Graphics Configuration
DVMT Pre-Allocated	64M	Intel Advanced Menu ⟶ System Agent (SA) Configuration ⟶ Graphics Configuration

Install ACRN¶

ACRN is offered via Deb packages and a Legacy Yocto ACRN image (legacy-poky-acrn). Select the corresponding tab to learn more.

The following section is applicable to:

Note: Make sure that the ECI APT repository is configured to allow downloading of source packages:

$ echo "deb-src [signed-by=/usr/share/keyrings/eci-archive-keyring.gpg] https://eci.intel.com/repos/$(source /etc/os-release && echo $VERSION_CODENAME) isar main" | sudo tee -a /etc/apt/sources.list.d/eci.list

The ACRN Deb packages that ECI provide only support a subset of hardware platforms. Currently, the ACRN Deb packages are compiled for the following platforms:
- Vecow* (TGL) - SPC-7100 with Intel® Core™ i7-1185GRE processor
- K700 - Karbon 700 with Intel® Core™ i7-9700TE processor @ 1.80GHz
If your platform is not supported or the ECI ACRN Scenario does not meet your needs, you need to build the ACRN Deb packages. For more details, refer to Compile ACRN for Different Platforms.
Setup the ECI APT repository to start using the ECI APT repository. If you have built your own ACRN Deb packages, make sure to host the Deb packages from your local build rather than the Deb packages provided with the ECI release.

Note: Ignore any steps related to BIOS configuration, since these will be different for ACRN.
Make sure that the target system BIOS configuration meets the ACRN Prerequisites.
Purge any existing ACRN Deb package installations, which might have conflicts with the new Deb packages:
```
$ sudo apt purge acrn-hypervisor acrn-system grub-acrn
```

Run either of the following commands to install ACRN:

Install from meta-package

$ sudo apt install eci-acrn

Install from individual Deb packages

$ sudo apt install linux-intel-acrn-sos \
  grub-acrn \
  acrn-hypervisor \
  acrnd acrn-devicemodel \
  acrn-system acrn-tools \
  acrn-launch-scripts \
  acrn-lifemngr \
  acrn-dev

You will be prompted to select the board on which ACRN will run. Enter a number corresponding to your hardware platform.

Configuring acrn-hypervisor
---------------------------

Define the board ACRN will be running on. Selecting the wrong board might render your board unusable!

  1. cfl-k700-i7  2. my-ipc-board  3. simatic-ipc227g  4. tgl-vecow-spc-7100-Corei7
ACRN hypervisor board selection _

ACRN creates a network bridge named acrn-br0 which it shares with all the VMs by default. Without this bridge, VMs will not have network connectivity. To activate acrn-br0, ensure the systemd-networkd service is enabled:
```
$ sudo systemctl enable systemd-networkd
```

Modify the default GRUB behavior so that the boot menu is not hidden:

$ sudo sed -i 's/^GRUB_TIMEOUT_STYLE=hidden/GRUB_TIMEOUT_STYLE=menu/' /etc/default/grub
$ sudo sed -i 's/^GRUB_TIMEOUT=0/GRUB_TIMEOUT=5/' /etc/default/grub
$ sudo update-grub

Reboot the system to allow the ACRN hypervisor to load.
```
$ sudo reboot
```

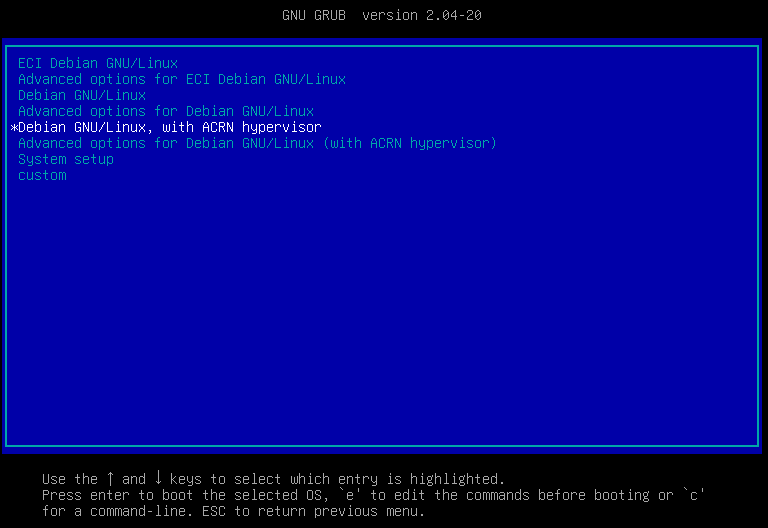

When the system reboots and reaches the GRUB menu, there should be new menu entries for ACRN. By default, the menu entry Debian GNU/Linux, with ACRN hypervisor is selected. Select this menu entry to boot ACRN, or wait for GRUB to timeout.

Tip

If you face any issues while booting ACRN, fallback to a non-ACRN GRUB menu entry to boot the system without ACRN.
Login and verify that ACRN hypervisor is active:
```
$ dmesg | grep ACRN
```
The output should be similar to the following:
```
[    0.000000] Hypervisor detected: ACRN
```
Allow network traffic to be forwarded from VMs to the acrn-br0 network bridge:
```
$ sudo iptables -A FORWARD -i acrn-br0 -j ACCEPT
```
Note: iptables configuration does not normally persist after reboot. You might need to re-run this command after rebooting.
At this point, ACRN is installed and ready for use. To start using the virtual machines, refer to: Launch Virtual Machines.

The following section is applicable to:

Make sure that you have a platform that supports ACRN. See the following table for the list of supported platforms:

Target

iEi

Vecow (TGL)

Vecow (WHL)

Maxtang

K700

TGL-RVP

EHL-CRB

legacy-poky-acrn without Trusted VM

No

Yes

No

Yes

Yes

Yes

No

legacy-poky-acrn with Trusted VM

No

No

No

Yes

No

Yes

No

To build ACRN for non-supported platforms, refer to Compile ACRN for Different Platforms.
Build an ECI target with the ACRN Hypervisor.

Tip

The ACRN hypervisor can be used to run ECI images as virtual machines. Build one of the available ECI targets to enable embedding the target while creating the bootable USB flash drive.
Create a bootable USB flash drive with image and install to a target system.

At this point, ACRN is installed and ready for use. To start using virtual machines, refer to: Launch Virtual Machines.

Launch Virtual Machines¶

The following section is applicable to:

ECI provides convenience scripts in the /var/lib/machines/scripts directory, which simplify the process of launching a VM.

Note: These scripts make generic assumptions about the desired configuration. You might need to modify the script to customize the VM. For more information, refer to: ACRN Device Model Example Parameters.

The following table lists the launch scripts and their usage:

Launch Script Name

Use Case & Behavior

Default VM Image Location

launch-rtvm.sh

Use Case: This script launches a real-time VM without graphics. It is best suited for real-time OSs such as ECI targets core-bullseye and core-jammy.

Behavior: After launching a VM using this script, the script will attempt to connect the active terminal session to the the VM so that it is possible to interact with the VM using the terminal.

Note: Due to current limitations with the ACRN hypervisor, only a single RT-VM can run at a given time.

/var/lib/machines/images/rt_vm1.img

launch-uos.sh

Use Case: This script launches a VM without graphics. It is best suited for headless (no graphics) VMs.

Behavior: After launching a VM using this script, the script will attempt to connect the active terminal session to the the VM so that it is possible to interact with the VM using the terminal.

/var/lib/machines/images/uos_vm1.img

launch-uos_passthrough-graphics.sh

Use Case:This script launches a VM with graphics passthrough. It is best suited for headed (with graphics) VMs.

Behavior

• After launching a VM using this script, the script will detach the active terminal session from the VM so that it remains possible to interact with the ACRN Service VM using the terminal.

• This script will unbind the integrated graphics driver to allow the VM to connect to the monitor. In effect, there will be no output to the monitor unless the VM connects to it. The monitor will not reattach to the Service VM if the VM is stopped.

/var/lib/machines/images/linux_vm2.iso

launch-uos_secureVM-communication.sh

Use Case: This script launches a VM without graphics and with virtual UART communication to TEP (Intel® Trusted Edge Platform). It is best suited for headless VMs that need to access the Trusted Platform Module (TPM).

Note: This script will only be present when the :ref:legacy-poky-acrn image is built with the Trusted VM feature option enabled.

/var/lib/machines/images/uos_vm1.img

launch-windows_passthrough-graphics.sh

Use Case: This script launches a Windows VM with graphics passthrough. It is best suited for ACRN - Windows as a Guest.

Behavior:

• After launching a VM using this script, the script will detach the active terminal session from the VM so that it remains possible to interact with the ACRN Service VM using the terminal.

• This script will unbind the integrated graphics driver to allow the VM to connect to the monitor. In effect, there will be no output to the monitor unless the VM connects to it. The monitor will not reattach to the Service VM if the VM is stopped.

/var/lib/machines/images/windows_vm2.img

Do the following to use the VM launch scripts:

Verify that a VM image exists at /var/lib/machines/images. If a VM image does not exist, copy a VM image to /var/lib/machines/images. Rename the VM image according to the above table.
Launch a VM using the appropriate script. For example, to launch a non-graphical UOS VM:
```
$ ./launch-uos.sh
```

Launch Script Messages¶

The following are some of the messages that might occur while running the launch script:

Cannot find VM image
If the VM image cannot be located, the launch script will print a message similar to the following:
root@ecs-intel-56f8:/var/lib/machines/scripts# ./launch-uos.sh Could not find VM image matching pattern: uos*_vm1.img
Fix this issue by renaming the VM image to match the pattern output by the launch script. In this example, the VM image should exist at /var/lib/machines/images/uos_vm1.img.

Passthrough Mouse/Keyboard
The launch script may prompt to passthrough mouse/keyboard to the VM. If this is desired, enter y at this prompt. The output similar to the following will appear:
Do you want to automatically assign all mouse/keyboard to VM? [y/N]
Note

If mouse/keyboard passthrough is enabled for a VM, the attached mouse and keyboard will be assigned to that VM only. In the event the VM which the mouse/keyboard is attached to is shutdown or stopped, the mouse/keyboard will not be released and will not be available to assign again.

Passthrough Ethernet interface

The launch script may prompt to passthrough an Ethernet interface to the VM. If this is desired, enter y at this prompt. The output similar to the following will appear:

Do you want to passthrough an Ethernet interface to the VM? [y/N]

   ###########################################################################################################################################
   |                  PCI Ethernet Interfaces                                                                                                |
   ===========================================================================================================================================
   | Index  | Interface      | PCI BDF       | PCI VPID   | Name                                                                             |
   ===========================================================================================================================================
   | 0      | N/A            | 0000:01:00.0  | 8086 157b  | Intel Corporation I210 Gigabit Network Connection (rev 03)                       |
   | 1      | N/A            | 0000:02:00.0  | 8086 157b  | Intel Corporation I210 Gigabit Network Connection (rev 03)                       |
   ===========================================================================================================================================

   Enter the Index of the Interface to passthrough to the VM :

Enter a number corresponding to the Index of the desired Ethernet interface to passthrough.

Note

When an Ethernet interface passthrough is selected for a VM, the selected Ethernet interface will no longer be available to the Service OS or other VMs.

VM Limitations and Tips¶

Please read the following information regarding the limitations and expected behaviors of VMs.

Stopping RT-VMs

RT-VMs cannot be stopped by the Service VM using the acrnctl tool. Performing a shutdown or reboot command within the RT-VM affects the entire system including the Service OS and all running VMs!

Graphics Passthrough

When using graphics passthrough to a User VM, any attached monitor output will no longer correspond to the Service VM upon launching the User VM. If interaction with the Service VM is desired after launching the User VM, it is advised to establish an SSH connection to the Service VM before starting the User VM so that continued interaction is possible.
Graphics can only be assigned to a single User VM at any given time.

USB Assignment

USB devices can only be assigned to a single User VM at any given time.
USB devices cannot be assigned to real-time VMs. Only non-realtime VMs support USB assignment.
If the VM to which a mouse/keyboard is attached is shutdown or stopped, the mouse/keyboard will not be released and will not be available for reassignment.

Sharing VM Images

Do not use the same VM image file (for example, uos_vm1.img) for running multiple VMs simultaneously. This can produce undefined behavior.

ECI Images as VMs

If you are using the ECI core-bullseye or core-jammy *.wic.img image file as a VM image, be aware that the filesystem partition is generated with only an extra 2GB of empty storage. If you need more than 2GB storage, it is recommended to use KVM to install the ECI image into a VM, and convert it to a format usable by ACRN. Refer to the following section for instructions: Convert KVM images for ACRN

ACRN Device Model Example Parameters¶

The following section is applicable to:

The ACRN device manager acrn-dm is used to manage VMs. It is invoked by the launch virtual machines script located at /var/lib/machines/scripts. Modify these scripts and change the parameters passed to acrn-dm to configure the VM. The following table lists a few examples.

`-s 3,virtio-blk,/var/lib/machines/uos.img`	This directs ACRN where to look for the VM image to virtualize.
`--memsize 2048M`	This configures the VM with 2048 MB of memory. Modify `2048M` to adjust the RAM available to the VM.
`-s 4,virtio-net,tap0`	This configures network virtualization so that tap0 is available within the VM. Change tap0 as necessary.
`-s 4,passthru,02/0/0`	This configures passthrough of a specific network controller. Modify `02/0/0` to match the BFD of the network controller to be passthrough to the VM.
`-s 5,fbuf,tcp=0.0.0.0:5900,w=800,h=600`	This opens a port 5900 on the Service VM which can be connected to via VNCviewer.
`-s 6,virtio-input,/dev/input/event4`	This configures assignment of the mouse/keyboard to the VM via virtio. Change `event4` accordingly. Use the following command to check the event node on your Service VM: <To find the input event of mouse> # cat /proc/bus/input/devices \| grep mouse
`-s 7,xhci,1-2:1-4:1-5`	This configures assignment of bus 1 USB ports 2, 4, and 5 to the User VM. Change which ports are passed through by modifying this parameter. To determine bus number, run the command: # lsusb -t Attention Due to current limitations in ACRN, only non real-time VMs support USB assignment! Note: Depending on the system, lsusb may display the Device number and omit the Port number. These are not interchangeable. Note: USB ports can only be assigned to a single User VM at any given time.
`-s 6,ivshmem,dm:/shmem,128`	This adds a shared memory device of size 128MB with the name shmem as slot 6 (only the device type ivshmem is a fixed parameter). The size and name parameters must be the same among the `acrn-dm` calls for both VMs that are supposed to communicate with the shared memory region.

For more information about ACRN Device Model parameters, refer to: ACRN project documentation.

Compile ACRN for Different Platforms¶

There are two primary reasons to recompile ACRN:

You need a different ACRN Scenario than the generic eci-shared.xml which ECI uses in its ACRN solutions. For details, refer to: ECI ACRN Scenario.
The platform is not supported out-of-box by ECI ACRN Deb packages.

There are two sets of instructions: one for building ACRN Deb packages and the other for building Legacy Yocto ACRN images. Select the tab corresponding to your requirement.

The following section is applicable to:

This section explains the steps involved in collecting hardware information for ACRN (board XML) and compiling ACRN Deb packages.

Make sure that the target system BIOS configuration meets the ACRN Prerequisites.
Setup the ECI APT repository to start using the ECI APT repository.

On the target system, install an ACRN compatible kernel. ECI offers a few kernel options to choose from. Install the kernel that suits your requirements:

Kernel Deb package	Description
`linux-image-intel-acrn-sos`	Standard distribution Linux kernel with ACRN configs enabled
`linux-image-intel-rt`	Real-time Linux kernel with PREEMPT_RT patchset and real-time optimizations

For this example, linux-image-intel-rt` is installed:

$ sudo apt install linux-image-intel-rt

Create a new directory for the ACRN source and navigate to that directory:
```
$ mkdir -p acrn-source && cd acrn-source
```

Install Debian package tools, ACRN Board Inspector, and ACRN Deb package dependencies:

$ sudo apt install dpkg-dev \
  python3-acrn-board-inspector \
  debhelper-compat dh-python git libssl-dev libpciaccess-dev \
  libsystemd-dev libevent-dev libxml2-dev libxml2-utils \
  libusb-1.0-0-dev libblkid-dev e2fslibs-dev pkg-config \
  libnuma-dev libsdl2-dev libpixman-1-dev liblz4-tool \
  libdrm-dev libcjson-dev flex bison xsltproc clang-format \
  bc acpica-tools python3-defusedxml python3-tqdm python3-setuptools

Install ACRN source code:

$ apt-get source acrn-hypervisor

After installing the ACRN source, the directory should contain files similar to the following (distribution, version, and commit ID may differ):

acrn-hypervisor-3.0.1-bullseye
acrn-hypervisor_3.0.1-bullseye-3.42817957ff.dsc
acrn-hypervisor_3.0.1-bullseye-3.42817957ff.tar.gz

Go to the acrn-hypervisor-#.#.#-<distribution> directory:
```
$ cd acrn-hypervisor-3.0.1-bullseye
```
Run the ACRN Board Inspector, which will examine the hardware platform. Also, a board XML will be generated.

Important

Before running the ACRN Board Inspector, set up your target hardware and BIOS exactly as you want it, including connecting all peripherals, configuring BIOS settings, and adding memory and PCI devices. For example, you must connect all USB devices; otherwise, the Board Inspector will not detect the USB devices for assignment. If you change the hardware or BIOS configuration, or add or remove USB devices, rerun the Board Inspector to generate a new board configuration file.

Create a new directory to hold the ACRN board XML, and run the ACRN Board Inspector to generate the board XML:
```
$ mkdir -p debian/configs/my-ipc-board
$ sudo acrn-board-inspector --out debian/configs/my-ipc-board/my-ipc-board.xml my-ipc-board
```
If the ACRN Board Inspector is completed successfully, you should see a message similar to the following:
```
SUCCESS: Board configuration file debian/configs/my-ipc-board/my-ipc-board.xml generated successfully and saved to /root/acrn-source/acrn-hypervisor-3.0.1-bullseye/debian/configs/my-ipc-board
```
Copy the ECI ACRN Scenario eci-shared.xml to the new board config directory:
```
$ cp misc/config_tools/data/cfl-k700-i7/eci-shared.xml debian/configs/my-ipc-board
```
The directory structure should be similar to the following:
```
debian/configs/
|-- README.rst
|-- configurations.mk
`-- my-ipc-board
    |-- eci-shared.xml
    `-- my-ipc-board.xml
```
Note: If the ECI ACRN Scenario does not meet your needs, use the ACRN Configurator to create a new ACRN scenario. The ACRN Configurator can be installed as a Deb package acrn-configurator. If you do install the acrn-configurator Deb package, note that it requires a graphic Desktop Environment to function properly. Ubuntu Desktop and standard Debian already include a graphic Desktop Environment by default, conversely Ubuntu Server does not include a graphic Desktop Environment. For information on installing a graphical Desktop Environment, refer to: Install Linux Desktop Environment. Edit the configurations.mk file accordingly to add your new ACRN scenario.

Append the new board my-ipc-board to the ACRN configurations.mk file:

$ sed -i "/ACRN_BOARDLIST := /s/$/ my-ipc-board/" debian/configs/configurations.mk

Append a revision to the Debian changelog so that the generated ACRN Deb packages will have a unique version:

$ sed -i "1 i\acrn-hypervisor (3.0.1-my-ipc-board) UNRELEASED; urgency=low\n\n  * Adding my IPC board\n" debian/changelog

Verify that all ACRN Deb package build dependencies are satisfied:
```
$ dpkg-checkbuilddeps
```
If all dependencies are satisfied, then the command will not output anything. If the command does output anything, then there are missing dependencies which must be installed prior to building the Deb packages. For example, if acpica-tools is missing:
```
$ dpkg-checkbuilddeps: error: Unmet build dependencies: acpica-tools (>= 20200326)
```
Then, install the missing acpica-tools dependency:
```
$ sudo apt install acpica-tools
```

Build the ACRN Deb packages:

$ sudo dpkg-buildpackage

The build should take anywhere from 2-10 minutes, depending on the capabilities of the hardware platform. When the build is completed, there should be a collection of Deb packages in the parent acrn-source directory. Go to the parent directory and make sure that the Deb packages were created:

$ cd ..
$ ls *.deb

Note that all packages contain the new changelog revision in their name. In this example, the revision is 3.0.1-my-ipc-board:

acrn-dev_3.0.1-my-ipc-board_amd64.deb
acrn-devicemodel-dbgsym_3.0.1-my-ipc-board_amd64.deb
acrn-devicemodel_3.0.1-my-ipc-board_amd64.deb
acrn-doc_3.0.1-my-ipc-board_all.deb
acrn-hypervisor_3.0.1-my-ipc-board_amd64.deb
acrn-lifemngr-dbgsym_3.0.1-my-ipc-board_amd64.deb
acrn-lifemngr_3.0.1-my-ipc-board_amd64.deb
acrn-system_3.0.1-my-ipc-board_amd64.deb
acrn-tools-dbgsym_3.0.1-my-ipc-board_amd64.deb
acrn-tools_3.0.1-my-ipc-board_amd64.deb
acrnd-dbgsym_3.0.1-my-ipc-board_amd64.deb
acrnd_3.0.1-my-ipc-board_amd64.deb
grub-acrn_3.0.1-my-ipc-board_amd64.deb
python3-acrn-board-inspector_3.0.1-my-ipc-board_all.deb

Purge any existing ACRN Deb package installations which may conflict with the new Deb packages:
```
$ sudo apt purge acrn-hypervisor acrn-system grub-acrn
```

Install the newly created Deb packages acrn-hypervisor_*.deb, acrnd_*.deb, and grub-acrn_*.deb to enable the ACRN hypervisor. For this example, we performed:

$ sudo apt install -f ./acrn-hypervisor_3.0.1-my-ipc-board_amd64.deb ./acrnd_3.0.1-my-ipc-board_amd64.deb ./grub-acrn_3.0.1-my-ipc-board_amd64.deb

Note: You need to install only two Deb packages. The remaining Deb packages will be installed automatically as dependencies.

During installation, you will be prompted to select the board on which ACRN will be run. Select the newly added board. In this example, my-ipc-board is selected:

Configuring acrn-hypervisor
---------------------------

Define the board ACRN will be running on. Selecting the wrong board might render your board unusable!

  1. cfl-k700-i7  2. my-ipc-board  3. simatic-ipc227g  4. tgl-vecow-spc-7100-Corei7
ACRN hypervisor board selection _

Install the acrn-launch-scripts Deb package which provides convenient scripts to launch ACRN VMs.
```
$ sudo apt install acrn-launch-scripts
```
ACRN creates a network bridge named acrn-br0 which it shares with all the VMs by default. Without this bridge, VMs will not have network connectivity. To activate acrn-br0, ensure the systemd-networkd service is enabled:
```
$ sudo systemctl enable systemd-networkd
```

Modify the default GRUB behavior so that the boot menu is not hidden:

$ sudo sed -i 's/^GRUB_TIMEOUT_STYLE=hidden/GRUB_TIMEOUT_STYLE=menu/' /etc/default/grub
$ sudo sed -i 's/^GRUB_TIMEOUT=0/GRUB_TIMEOUT=5/' /etc/default/grub
$ sudo update-grub

Reboot the system to allow the ACRN hypervisor to load.
```
$ sudo reboot
```
When the system reboots and reaches the GRUB menu, there should be new menu entries for ACRN. By default, the menu entry Debian GNU/Linux, with ACRN hypervisor is selected. Select this menu entry to boot ACRN, or wait for GRUB to timeout.

Tip

If you encounter trouble booting ACRN, fallback to a non-ACRN GRUB menu entry to boot the system without ACRN.

Login and verify that ACRN hypervisor is active: by using the command dmesg | grep ACRN.

$ dmesg | grep ACRN
[    0.000000] Hypervisor detected: ACRN

The output should be similar to the following:

$ dmesg | grep ACRN
[    0.000000] Hypervisor detected: ACRN

Allow network traffic to be forwarded from VMs to the acrn-br0 network bridge:
```
$ sudo iptables -A FORWARD -i acrn-br0 -j ACCEPT
```
Note: iptables configuration does not normally persist after reboot. You might need to re-run this command after rebooting.
At this point, ACRN is installed and ready for use. To start using virtual machines, refer to Launch Virtual Machines

The following section is applicable to:

Attention

This section is intended for advanced users. It is assumed that you are capable of navigating and modifying bitbake configuration files.

Do the following to enable and build ACRN for a specific target platform:

Make sure that you have a platform that supports ACRN. See the following table for the list of supported platforms:

Target

iEi

Vecow (TGL)

Vecow (WHL)

Maxtang

K700

TGL-RVP

EHL-CRB

legacy-poky-acrn without Trusted VM

No

Yes

No

Yes

Yes

Yes

No

legacy-poky-acrn with Trusted VM

No

No

No

Yes

No

Yes

No
Make sure that the platform BIOS configuration meet the ACRN Prerequisites.
Create new XML definitions for the target platform. Refer to the tutorial.

Important

Execute the ACRN Configuration Tool on the target system, not the Linux build system. Use a unique board name for the target system.
After creating the XML definitions, navigate to the XML directory at: acrn-hypervisor/misc/config_tools/data/[board]/ (see acrn-hypervisor for reference). Copy the generated board XML and scenario.xml file to data/[board] directory. Verify that the generated config XML files exist in the data/[board] directory.
If the legacy-poky-acrn target has not yet been configured on the Linux build system, run the ./setup.sh script for the legacy-poky-acrn target (For instructions, refer to legacy-poky-acrn). Select any target platform when prompted. Do not perform an automated build.
Copy the entire data directory created earlier to the /eci-release/targets/layers/meta-acrn-tgr/recipes-core/acrn/files folder in the Linux build system. This will overwrite the existing directory, appending new files and directories inside data.
On the Linux build system, edit /eci-release/build/eci-legacy-poky-acrn/build/conf/local.conf file and change the line starting with ACRN_BOARD_pn-acrn-hypervisor to use the name of the new XML configuration. For example: ACRN_BOARD_pn-acrn-hypervisor = "nuc7i7dnb".

Clean the acrn-hypervisor bitbake recipe.

$ cd /home/eci/Desktop/eci-release
$ source oe-init-build-env /home/eci/Desktop/eci-release/build/eci-legacy-poky-acrn
$ bitbake -c cleanall acrn-hypervisor

Perform the legacy-poky-acrn bitbake build process to build the legacy-poky-acrn target image.

Use ACRN Hypervisor Shell¶

When compiled in debug mode, ACRN provides a shell that can be used to monitor and control the hypervisor activity. To access this shell, attach a serial cable from the target system to another system of choice. Use a preferred serial communication program such as PuTTy or minicom to open a session to the ACRN shell via the serial cable with standard settings: 115200 (speed), 8N1 (8 data bits, no parity, 1 stop bit).

Note: The serial cable may need a NULL modem termination depending on the target system hardware.

The tutorial on enabling serial port on NUC shows an example of accessing the ACRN hypervisor shell on a KBL Intel NUC.
For a list and description of ACRN hypervisor shell commands, refer to ACRN Shell Commands.

List Actively Running VMs¶

Execute the following command to list the actively running VMs on ACRN:

ACRN:\>vm_list

The following is an example output:

 ---Entering ACRN SHELL---
ACRN:\>vm_list

VM_UUID                          VM_ID VM_NAME                          VM_STATE
================================ ===== ================================ ========
b2a92becca6b11eab1063716a8ba0bb9   0   ACRN PRE-LAUNCHED VM0            Running
dbbbd4347a574216a12c2201f1ab0240   1   ACRN SOS VM                      Running

Open Console Session to VM¶

Execute the following command to open a console session with a VM, replacing # with the VM_ID of an active VM (see above vm_list command):

ACRN:\>vm_console #
Tip

After starting a VM console session, press Ctrl + Space to return to the ACRN shell console.

ACRN Best Known Methods ¶

Document/Section	Description
ACRN Best Known Methods	This section contains a collection of Best Known Methods (BKMs) for the ACRN Hypervisor.

Convert KVM images for ACRN ¶

Document/Section	Description
Convert KVM images for ACRN	This section provides instructions on converting KVM images for use with ACRN.

Enable Secure Boot with ACRN ¶

Document/Section	Description
Enable Secure Boot with ACRN Note: This section is only applicable to the ECI legacy-poky-acrn image.	This section details the procedure to enable Secure Boot with the ACRN hypervisor.

ACRN - Windows as a Guest ¶

Document/Section	Description
ACRN - Windows as a Guest	This section details the procedure to enable Windows as a Guest on the ACRN hypervisor.

Target	iEi	Vecow (TGL)	Vecow (WHL)	Maxtang	K700	TGL-RVP	EHL-CRB
legacy-poky-acrn without `Trusted VM`	No	Yes	No	Yes	Yes	Yes	No
legacy-poky-acrn with `Trusted VM`	No	No	No	Yes	No	Yes	No

Target	iEi	Vecow (TGL)	Vecow (WHL)	Maxtang	K700	TGL-RVP	EHL-CRB
legacy-poky-acrn without `Trusted VM`	No	Yes	No	Yes	Yes	Yes	No
legacy-poky-acrn with `Trusted VM`	No	No	No	Yes	No	Yes	No

ACRN Hypervisor¶

ACRN Terminology¶

ECI ACRN Scenario¶

ACRN Prerequisites¶

Install ACRN¶

Launch Virtual Machines¶

Launch Script Messages¶

VM Limitations and Tips¶

ACRN Device Model Example Parameters¶

Compile ACRN for Different Platforms¶

Use ACRN Hypervisor Shell¶

List Actively Running VMs¶

Open Console Session to VM¶

ACRN Best Known Methods¶

Convert KVM images for ACRN¶

Enable Secure Boot with ACRN¶

ACRN - Windows as a Guest¶

ACRN Best Known Methods ¶

Convert KVM images for ACRN ¶

Enable Secure Boot with ACRN ¶

ACRN - Windows as a Guest ¶
