ACRN Terminology

Term

Description

VM

Hypervised operating systems (OS) are referred to as virtual machines or VMs.

Service VM

Since ACRN is a Type 1 hypervisor, the OS in which the ACRN tools reside is also virtualized. This virtualized OS is commonly referred to as Service VM, Service OS, and SOS.

User VM

VMs other than the Service VMs are commonly referred to as User VM, Guest VM, Guest OS, User OS, and UOS.

ECI ACRN Scenario

The ACRN solutions that ECI provide are generic and designed to be compatible with most applications. Specifically, ECI compiles ACRN with an ACRN Scenario named eci-shared.xml, which defines the following VM configurations:

VM Name

Memory

CPU Affinity

VM Type

IVSHMEM

SSRAM

Passthrough

Service VM

N/A

0

hv:/shmem,64

N/A

N/A

None

POST_STD_VM1

4096M

0,1,2,3

Post-launch, Standard

hv:/shmem,64`

Yes

None

POST_RT_VM1

4096M

1,2,3

Post-launch, Real-time

hv:/shmem,64

Yes

None

POST_STD_VM2

4096M

0,1,2,3

Post-launch, Standard

hv:/shmem,64

Yes

None

Note: Most VM parameters can be overridden during runtime when invoking the ACRN device manager acrn-dm. See ACRN Device Model Example Parameters for the list of example parameters that can be passed to the acrn-dm tool.

If this eci-shared.xml generic ACRN scenario does not meet your application requirements, create your own ACRN scenario and recompile ACRN. For more information, refer to Compile ACRN for Different Platforms.

ACRN Prerequisites

The following section is applicable to:

../_images/target_generic.png

To use boot and ACRN, certain BIOS settings need to be configured. Do the following to configure the BIOS settings:

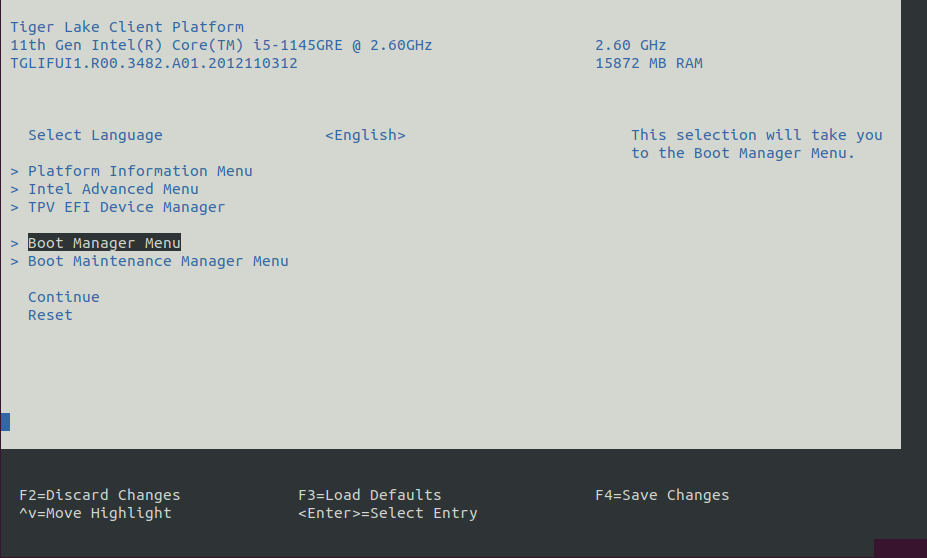

  1. Boot the target system and access the BIOS (typically pressing the delete or F2 keys while booting will open the BIOS menu).

    ../_images/01.png

  2. Select Restore Defaults or Load Defaults and then select Save Changes and Reset. As the target system boots, access the BIOS again (as per Step 1).

  3. Modify the BIOS configuration as listed in the following table.

    Note: The available configurations depend on the platform, BIOS in use, or both. In this case, modify as many configurations as possible.

    Setting Name

    Option

    Setting Menu

    Hyper-Threading

    Disabled

    Intel Advanced Menu ⟶ CPU Configuration

    Intel (VMX) Virtualization

    Enabled

    Intel Advanced Menu ⟶ CPU Configuration

    Intel(R) SpeedStep

    Disabled

    Intel Advanced Menu ⟶ Power & Performance ⟶ CPU - Power Management Control

    Turbo Mode

    Disabled

    Intel Advanced Menu ⟶ Power & Performance ⟶ CPU - Power Management Control

    C States

    Disabled

    Intel Advanced Menu ⟶ Power & Performance ⟶ CPU - Power Management Control

    RC6 (Render Standby)

    Disabled

    Intel Advanced Menu ⟶ Power & Performance ⟶ GT - Power Management Control

    VT-d

    Enabled

    Intel Advanced Menu ⟶ System Agent (SA) Configuration

    Above 4GB MMIO BIOS assignment

    Disabled

    Intel Advanced Menu ⟶ System Agent (SA) Configuration

    PM Support

    Enabled

    Intel Advanced Menu ⟶ System Agent (SA) Configuration ⟶ Graphics Configuration

    DVMT Pre-Allocated

    64M

    Intel Advanced Menu ⟶ System Agent (SA) Configuration ⟶ Graphics Configuration

Install ACRN

The following section is applicable to:

../_images/target_generic.png

Note: Make sure that the ECI repository is configured to allow downloading of source packages:

$ echo "deb-src [signed-by=/usr/share/keyrings/eci-archive-keyring.gpg] https://eci.intel.com/repos/$(source /etc/os-release && echo $VERSION_CODENAME) isar main" | sudo tee -a /etc/apt/sources.list.d/eci.list

  1. The ACRN Deb packages that ECI provide only support a subset of hardware platforms. Currently, the ACRN Deb packages are compiled for the following platforms:

    Additionally, the ACRN hypervisor is compiled in debug mode so that the ACRN shell is available, but this may not be compatible if the target system does not have a serial port. If your platform is not supported or the ECI ACRN Scenario does not meet your needs, you need to build the ACRN Deb packages. For more details, refer to Compile ACRN for Different Platforms.

  2. Setup the ECI repository to start using the ECI repository. If you have built your own ACRN Deb packages, make sure to host the Deb packages from your local build rather than the Deb packages provided with the ECI release.

    Note: Ignore any steps related to BIOS configuration, since these will be different for ACRN.

  3. Make sure that the target system BIOS configuration meets the ACRN Prerequisites.

  4. Purge any existing ACRN Deb package installations, which might have conflicts with the new Deb packages:

    $ sudo apt purge acrn-hypervisor acrn-system grub-acrn

  5. Run either of the following commands to install ACRN:

    Install from meta-package
    $ sudo apt install eci-acrn
    Install from individual Deb packages
    $ sudo apt install \
  linux-intel-acrn-sos \
  grub-acrn \
  acrn-hypervisor \
  acrnd \
  acrn-devicemodel \
  acrn-system \
  acrn-tools \
  acrn-launch-scripts \
  acrn-lifemngr \
  acrn-dev \
  acrn-ivshmem-tests

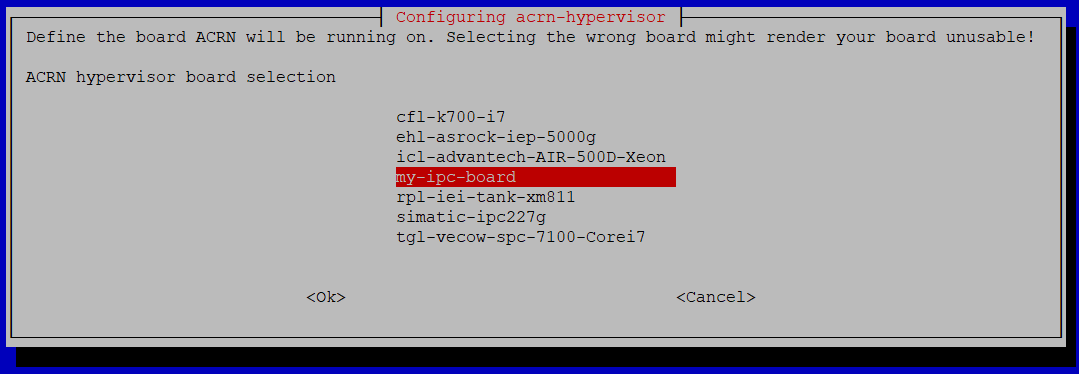

    You will be prompted to select the board on which ACRN will run. Enter a number corresponding to your hardware platform.

    Configuring acrn-hypervisor
---------------------------

Define the board ACRN will be running on. Selecting the wrong board might render your board unusable!

  1. cfl-k700-i7  2. icl-advantech-AIR-500D-Xeon  3. simatic-ipc227g  4. tgl-vecow-spc-7100-Corei7 5. rpl-iei-tank-xm811 6. ehl-asrock-iep-5000g
ACRN hypervisor board selection _

  6. ACRN creates a network bridge named acrn-br0 which it shares with all the VMs by default. Without this bridge, VMs will not have network connectivity. To activate acrn-br0, ensure the systemd-networkd service is enabled:

    $ sudo systemctl enable systemd-networkd

  7. Modify the default GRUB behavior so that the boot menu is not hidden and update the GRUB configuration:

    $ sudo sed -i 's/^GRUB_TIMEOUT_STYLE=hidden/GRUB_TIMEOUT_STYLE=menu/' /etc/default/grub
$ sudo sed -i 's/^GRUB_TIMEOUT=0/GRUB_TIMEOUT=5/' /etc/default/grub
$ sudo update-grub

  8. Reboot the system to allow the ACRN hypervisor to load.

    $ sudo reboot

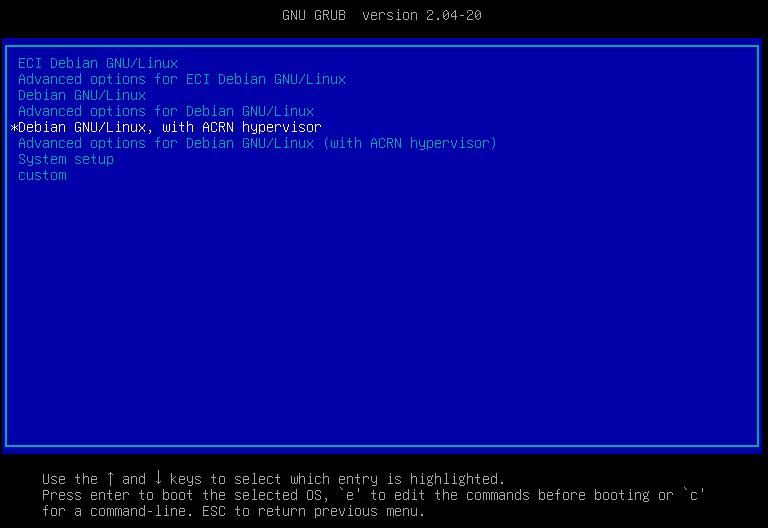

  9. When the system reboots and reaches the GRUB menu, there should be new menu entries for ACRN. By default, a menu entry similar to Debian GNU/Linux, with ACRN hypervisor, with Linux #.#.#-linux-intel-acrn-sos+ (ACRN #.#) should be selected. Select this menu entry to boot ACRN, or wait for GRUB to timeout.

    ../_images/011.png

    Tip

    If you face any issues while booting ACRN, fallback to a non-ACRN GRUB menu entry to boot the system without ACRN.

  10. Login and verify that ACRN hypervisor is active:

    $ dmesg | grep ACRN

    The output should be similar to the following:

    [    0.000000] Hypervisor detected: ACRN

  11. Allow network traffic to be forwarded from VMs to the acrn-br0 network bridge:

    $ sudo nft add rule ip filter FORWARD iifname "acrn-br0" counter accept

    Note: nft configuration does not normally persist after reboot. You might need to re-run this command after rebooting.

  12. At this point, ACRN is installed and ready for use. To start using the virtual machines, refer to: Launch Virtual Machines.

Launch Virtual Machines

The following section is applicable to:

../_images/target_generic.png

ECI provides convenience scripts in the /var/lib/machines/scripts directory, which simplify the process of launching a VM.

Note: These scripts make generic assumptions about the desired configuration. You might need to modify the script to customize the VM. For more information, refer to: ACRN Device Model Example Parameters.

The following table lists the launch scripts and their usage:

Launch Script Name

Use Case & Behavior

Default VM Image Location

/var/lib/machines/scripts/launch-rtvm.sh
Use Case: This script launches a real-time VM without graphics. It is best suited for real-time OSs such as ECI targets core-bookworm and core-jammy.

Behavior: After launching a VM using this script, the script will attempt to connect the active terminal session to the the VM so that it is possible to interact with the VM using the terminal.

/var/lib/machines/images/rt_vm1.img

/var/lib/machines/scripts/launch-uos.sh
Use Case: This script launches a VM without graphics. It is best suited for headless (no graphics) VMs.

Behavior: After launching a VM using this script, the script will attempt to connect the active terminal session to the the VM so that it is possible to interact with the VM using the terminal.

/var/lib/machines/images/uos_vm1.img

/var/lib/machines/scripts/launch-uos_passthrough-graphics.sh
Use Case:This script launches a VM with graphics passthrough. It is best suited for headed (with graphics) VMs.

Behavior
• After launching a VM using this script, the script will detach the active terminal session from the VM so that it remains possible to interact with the ACRN Service VM using the terminal.

• This script will unbind the integrated graphics driver to allow the VM to connect to the monitor. In effect, there will be no output to the monitor unless the VM connects to it. The monitor will not reattach to the Service VM if the VM is stopped.

/var/lib/machines/images/linux_vm2.iso

/var/lib/machines/scripts/launch-windows_passthrough-graphics.sh
Use Case: This script launches a Microsoft Windows VM with graphics passthrough. It is best suited for Windows as a Guest.

Behavior:
• After launching a VM using this script, the script will detach the active terminal session from the VM so that it remains possible to interact with the ACRN Service VM using the terminal.

• This script will unbind the integrated graphics driver to allow the VM to connect to the monitor. In effect, there will be no output to the monitor unless the VM connects to it. The monitor will not reattach to the Service VM if the VM is stopped.

/var/lib/machines/images/windows_vm2.img

Do the following to use the VM launch scripts:

  1. Verify that a VM image exists at /var/lib/machines/images. If a VM image does not exist, copy a VM image to /var/lib/machines/images. Rename the VM image according to the above table.

  2. Launch a VM using the appropriate script. For example, to launch a non-graphical UOS VM:

    $ sudo /var/lib/machines/scripts/launch-uos.sh

    Non-graphical UOS VMs will attach their TTY session to the terminal from which the launch script was executed. Consequently, if the terminal session closes, the UOS VM will also be terminated since the parent process it was attached to does not exist anymore. To mitigate this, you can launch the VM as a background process as follows:

    $ bash -c "sudo /var/lib/machines/scripts/launch-uos.sh &"

Launch Script Messages

The following are some of the messages that might occur while running the launch script:

  • Cannot find VM image

    If the VM image cannot be located, the launch script will print a message similar to the following:

    root@ecs-intel-56f8:/var/lib/machines/scripts# ./launch-uos.sh
Could not find VM image matching pattern:
uos*_vm1.img

    Fix this issue by renaming the VM image to match the pattern output by the launch script. In this example, the VM image should exist at /var/lib/machines/images/uos_vm1.img.

  • Passthrough Mouse/Keyboard

    The launch script may prompt to passthrough mouse/keyboard to the VM. If this is desired, enter y at this prompt. The output similar to the following will appear:

    Do you want to automatically assign all mouse/keyboard to VM? [y/N]

    Note

    If mouse/keyboard passthrough is enabled for a VM, the attached mouse and keyboard will be assigned to that VM only. In the event the VM which the mouse/keyboard is attached to is shutdown or stopped, the mouse/keyboard will not be released and will not be available to assign again.

  • Passthrough Ethernet interface

    The launch script may prompt to passthrough an Ethernet interface to the VM. If this is desired, enter y at this prompt. The output similar to the following will appear:

    Do you want to passthrough an Ethernet interface to the VM? [y/N]

   ###########################################################################################################################################
   |                  PCI Ethernet Interfaces                                                                                                |
   ===========================================================================================================================================
   | Index  | Interface      | PCI BDF       | PCI VPID   | Name                                                                             |
   ===========================================================================================================================================
   | 0      | N/A            | 0000:01:00.0  | 8086 157b  | Intel Corporation I210 Gigabit Network Connection (rev 03)                       |
   | 1      | N/A            | 0000:02:00.0  | 8086 157b  | Intel Corporation I210 Gigabit Network Connection (rev 03)                       |
   ===========================================================================================================================================

   Enter the Index of the Interface to passthrough to the VM :

    Enter a number corresponding to the Index of the desired Ethernet interface to passthrough.

    Note

    When an Ethernet interface passthrough is selected for a VM, the selected Ethernet interface will no longer be available to the Service OS or other VMs.

VM Limitations and Tips

Please read the following information regarding the limitations and expected behaviors of VMs.

Stopping RT-VMs

  • RT-VMs cannot be stopped by the Service VM using the acrnctl tool. Performing a shutdown or reboot command within the RT-VM affects the entire system including the Service OS and all running VMs!

Graphics Passthrough

  • When using graphics passthrough to a User VM, any attached monitor output will no longer correspond to the Service VM upon launching the User VM. If interaction with the Service VM is desired after launching the User VM, it is advised to establish an SSH connection to the Service VM before starting the User VM so that continued interaction is possible.

  • Graphics can only be assigned to a single User VM at any given time.

USB Assignment

  • USB devices can only be assigned to a single User VM at any given time.

  • USB devices cannot be assigned to real-time VMs. Only non-realtime VMs support USB assignment.

  • If the VM to which a mouse/keyboard is attached is shutdown or stopped, the mouse/keyboard will not be released and will not be available for reassignment.

Sharing VM Images

  • Do not use the same VM image file (for example, uos_vm1.img) for running multiple VMs simultaneously. This can produce undefined behavior.

ECI Images as VMs

  • If you are using the ECI core-bookworm or core-jammy *.wic image file as a VM image, be aware that the filesystem partition is generated with only an extra 2GB of empty storage. If you need more than 2GB storage, it is recommended to use KVM to install the ECI image into a VM, and convert it to a format usable by ACRN. Refer to the following section for instructions: Convert KVM images for ACRN

Insufficient Memory Booting ECI Images

ACRN Device Model Example Parameters

The following section is applicable to:

../_images/target_generic.png

The ACRN device manager acrn-dm is used to manage VMs. It is invoked by the launch virtual machines script located at /var/lib/machines/scripts. Modify these scripts and change the parameters passed to acrn-dm to configure the VM. The following table lists a few examples.

For more information about ACRN Device Model parameters, refer to: ACRN project documentation.

-s 3,virtio-blk,/var/lib/machines/uos.img

This directs ACRN where to look for the VM image to virtualize.

--memsize 2048M

This configures the VM with 2048 MB of memory. Modify 2048M to adjust the RAM available to the VM.

-s 4,virtio-net,tap0

This configures network virtualization so that tap0 is available within the VM. Change tap0 as necessary.

-s 4,passthru,02/0/0

This configures passthrough of a specific network controller. Modify 02/0/0 to match the BFD of the network controller to be passthrough to the VM.

-s 5,fbuf,tcp=0.0.0.0:5900,w=800,h=600

This opens a port 5900 on the Service VM which can be connected to via VNCviewer.

-s 6,virtio-input,/dev/input/event4

This configures assignment of the mouse/keyboard to the VM via virtio. Change event4 accordingly. Use the following command to check the event node on your Service VM:


<To find the input event of mouse>
# cat /proc/bus/input/devices | grep mouse

-s 7,xhci,1-2:1-4:1-5

This configures assignment of bus 1 USB ports 2, 4, and 5 to the User VM. Change which ports are passed through by modifying this parameter.


To determine bus number, run the command:

# lsusb -t

Attention

Due to current limitations in ACRN, only non real-time VMs support USB assignment!

Note: Depending on the system, lsusb may display the Device number and omit the Port number. These are not interchangeable.


Note: USB ports can only be assigned to a single User VM at any given time.

-s 6,ivshmem,dm:/shmem,128

This adds a shared memory device of size 128MB with the name shmem as slot 6 (only the device type ivshmem is a fixed parameter). The size and name parameters must be the same among the acrn-dm calls for both VMs that are supposed to communicate with the shared memory region.

Compile ACRN for Different Platforms

There are two primary reasons to recompile ACRN:

  • You need a different ACRN Scenario than the generic eci-shared.xml which ECI uses in its ACRN solutions. For details, refer to: ECI ACRN Scenario.

  • The platform is not supported out-of-box by ECI ACRN Deb packages.

The following section is applicable to:

../_images/target_generic.png

This section explains the steps involved in collecting hardware information for ACRN (board XML) and compiling ACRN Deb packages.

  1. Make sure that the target system BIOS configuration meets the ACRN Prerequisites.

  2. Setup the ECI repository to start using the ECI repository.

  3. On the target system, install an ACRN compatible kernel. ECI offers a few kernel options to choose from. Install the kernel that suits your requirements:

    Kernel Deb package

    Description

    linux-intel-acrn-sos

    Standard distribution Linux kernel with ACRN configs enabled, better for Service OS kernel

    linux-intel-rt

    Real-time Linux kernel with PREEMPT_RT patchset and real-time optimizations, better for RTVM kernel

    For this example, linux-acrn-sos is installed:

    $ sudo apt install linux-intel-acrn-sos

  4. Create a new directory for the ACRN source and navigate to that directory:

    $ mkdir -p acrn-source && cd acrn-source

  5. Install tools, ACRN Board Inspector, and ACRN Deb package dependencies:

    $ sudo apt install dpkg-dev \
  python3-acrn-board-inspector \
  debhelper-compat dh-python git libssl-dev libpciaccess-dev \
  libsystemd-dev libevent-dev libxml2-dev libxml2-utils \
  libusb-1.0-0-dev libblkid-dev e2fslibs-dev pkg-config \
  libnuma-dev libsdl2-dev libpixman-1-dev liblz4-tool \
  libdrm-dev libcjson-dev flex bison xsltproc clang-format \
  bc acpica-tools python3-defusedxml python3-tqdm python3-setuptools

  6. Install ACRN source code:

    $ apt-get source acrn-hypervisor

    After installing the ACRN source, the directory should contain files similar to the following (distribution, version, and commit ID may differ):

    acrn-hypervisor-3.2-bullseye
acrn-hypervisor_3.2-bullseye-3.42817957ff.dsc
acrn-hypervisor_3.2-bullseye-3.42817957ff.tar.gz

  7. Go to the acrn-hypervisor-#.#.# directory:

    $ cd acrn-hypervisor-*

  8. Run the ACRN Board Inspector, which will examine the hardware platform. Also, a board XML will be generated.

    Important

    Before running the ACRN Board Inspector, set up your target hardware and BIOS exactly as you want it, including connecting all peripherals, configuring BIOS settings, and adding memory and PCI devices. For example, you must connect all USB devices; otherwise, the Board Inspector will not detect the USB devices for assignment. If you change the hardware or BIOS configuration, or add or remove USB devices, rerun the Board Inspector to generate a new board configuration file.

    Create a new directory to hold the ACRN board XML, and run the ACRN Board Inspector to generate the board XML:

    $ mkdir -p debian/configs/my-ipc-board
$ sudo acrn-board-inspector --out debian/configs/my-ipc-board/my-ipc-board.xml my-ipc-board

    If the ACRN Board Inspector is completed successfully, you should see a message similar to the following:

    SUCCESS: Board configuration file debian/configs/my-ipc-board/my-ipc-board.xml generated successfully and saved to /root/acrn-source/acrn-hypervisor-3.2-bullseye/debian/configs/my-ipc-board

  9. Copy the ECI ACRN Scenario eci-shared.xml to the new board config directory:

    $ cp misc/config_tools/data/cfl-k700-i7/eci-shared.xml debian/configs/my-ipc-board

    The directory structure should be similar to the following:

    debian/configs/
|-- README.rst
|-- configurations.mk
`-- my-ipc-board
    |-- eci-shared.xml
    `-- my-ipc-board.xml

    Note: If the ECI ACRN Scenario does not meet your needs, use the ACRN Configurator to create a new ACRN scenario. The ACRN Configurator can be installed as a Deb package acrn-configurator. If you do install the acrn-configurator Deb package, note that it requires a graphic Desktop Environment to function properly. Canonical® Ubuntu® Desktop and standard Debian already include a graphic Desktop Environment by default, conversely Canonical® Ubuntu® Server does not include a graphic Desktop Environment. For information on installing a graphical Desktop Environment, refer to: Install Linux Desktop Environment. Edit the configurations.mk file accordingly to add your new ACRN scenario.

  10. Append the new board my-ipc-board to the ACRN configurations.mk file:

    $ sed -i "/ACRN_BOARDLIST := /s/$/ my-ipc-board/" debian/configs/configurations.mk

  11. Append a revision to the Debian changelog so that the generated ACRN Deb packages will have a unique version. Make sure to use the same version as ACRN. In this example, the version of ACRN is 3.2:

    $ sed -i "1 i\acrn-hypervisor (3.2-my-ipc-board) UNRELEASED; urgency=low\n\n  * Adding my IPC board\n" debian/changelog

  12. By default, ACRN is built in debug mode which provides access to the ACRN shell. To use the ACRN shell, your target system must have a serial port. If your target system does not have a serial port, then debug mode may be incompatible with your target system. To compile ACRN in release mode, export the RELEASE environment variable:

    $ export RELEASE="y"

    Tip

    If you’re building the ACRN Deb packages using the ECI Build Engine bitbake, the acrn-hypervisor recipe provides a mechanism to change the ACRN release mode using the ACRN_RELEASE variable.

  13. Verify that all ACRN Deb package build dependencies are satisfied:

    $ dpkg-checkbuilddeps

    If all dependencies are satisfied, then the command will not output anything. If the command does output anything, then there are missing dependencies which must be installed prior to building the Deb packages. For example, if acpica-tools is missing:

    $ dpkg-checkbuilddeps: error: Unmet build dependencies: acpica-tools (>= 20200326)

    Then, install the missing acpica-tools dependency:

    $ sudo apt install acpica-tools

  14. Build the ACRN Deb packages (use the -E flag to preserve environment variables):

    $ sudo -E dpkg-buildpackage

    The build should take anywhere from 2-10 minutes, depending on the capabilities of the hardware platform. When the build is completed, there should be a collection of Deb packages in the parent acrn-source directory. Go to the parent directory and make sure that the Deb packages were created:

    $ cd ..
$ ls *.deb

    Note that all packages contain the new changelog revision in their name. In this example, the revision is 3.2-my-ipc-board:

    acrn-dev_3.2-my-ipc-board_amd64.deb
acrn-devicemodel-dbgsym_3.2-my-ipc-board_amd64.deb
acrn-devicemodel_3.2-my-ipc-board_amd64.deb
acrn-doc_3.2-my-ipc-board_all.deb
acrn-hypervisor_3.2-my-ipc-board_amd64.deb
acrn-lifemngr-dbgsym_3.2-my-ipc-board_amd64.deb
acrn-lifemngr_3.2-my-ipc-board_amd64.deb
acrn-system_3.2-my-ipc-board_amd64.deb
acrn-tools-dbgsym_3.2-my-ipc-board_amd64.deb
acrn-tools_3.2-my-ipc-board_amd64.deb
acrnd-dbgsym_3.2-my-ipc-board_amd64.deb
acrnd_3.2-my-ipc-board_amd64.deb
grub-acrn_3.2-my-ipc-board_amd64.deb
python3-acrn-board-inspector_3.2-my-ipc-board_all.deb

  15. The Deb packages get created with root ownership. Change the ownership to the current user to prevent an error message during installation:

    $ sudo chown $(id -u):$(id -g) ./*.deb

  16. Purge any existing ACRN Deb package installations which may conflict with the new Deb packages:

    $ sudo apt purge acrn-hypervisor acrn-system grub-acrn

  17. Install the newly created Deb packages acrn-hypervisor_*.deb, acrnd_*.deb, and grub-acrn_*.deb to enable the ACRN hypervisor. For this example, we performed:

    $ sudo apt install -f ./acrn-hypervisor_3.2-my-ipc-board_amd64.deb ./acrnd_3.2-my-ipc-board_amd64.deb ./grub-acrn_3.2-my-ipc-board_amd64.deb

    Note: You need to install only three Deb packages. The remaining Deb packages will be installed automatically as dependencies.

    During installation, you will be prompted to select the board on which ACRN will be run. Select the newly added board. In this example, my-ipc-board is selected:

    ../_images/02.png

  18. Install the acrn-launch-scripts Deb package which provides convenient scripts to launch ACRN VMs.

    $ sudo apt install acrn-launch-scripts

  19. ACRN creates a network bridge named acrn-br0 which it shares with all the VMs by default. Without this bridge, VMs will not have network connectivity. To activate acrn-br0, ensure the systemd-networkd service is enabled:

    $ sudo systemctl enable systemd-networkd

  20. Modify the default GRUB behavior so that the boot menu is not hidden and update the GRUB configuration:

    $ sudo sed -i 's/^GRUB_TIMEOUT_STYLE=hidden/GRUB_TIMEOUT_STYLE=menu/' /etc/default/grub
$ sudo sed -i 's/^GRUB_TIMEOUT=0/GRUB_TIMEOUT=5/' /etc/default/grub
$ sudo update-grub

  21. Reboot the system to allow the ACRN hypervisor to load.

    $ sudo reboot

  22. When the system reboots and reaches the GRUB menu, there should be new menu entries for ACRN. By default, a menu entry similar to Debian GNU/Linux, with ACRN hypervisor, with Linux #.#.#-linux-intel-acrn-sos+ (ACRN #.#) should be selected. Select this menu entry to boot ACRN, or wait for GRUB to timeout.

    ../_images/011.png

    Tip

    If you face any issues while booting ACRN, fallback to a non-ACRN GRUB menu entry to boot the system without ACRN.

  23. Login and verify that ACRN hypervisor is active:

    $ dmesg | grep ACRN

    The output should be similar to the following:

    [    0.000000] Hypervisor detected: ACRN

  24. Allow network traffic to be forwarded from VMs to the acrn-br0 network bridge:

    $ sudo nft add rule ip filter FORWARD iifname "acrn-br0" counter accept

    Note: nft configuration does not normally persist after reboot. You might need to re-run this command after rebooting.

  25. At this point, ACRN is installed and ready for use. To start using virtual machines, refer to Launch Virtual Machines

Use ACRN Hypervisor Shell

When compiled in debug mode, ACRN provides a shell that can be used to monitor and control the hypervisor activity. To access this shell, attach a serial cable from the target system to another system of choice. Use a preferred serial communication program such as PuTTy or minicom to open a session to the ACRN shell via the serial cable with standard settings: 115200 (speed), 8N1 (8 data bits, no parity, 1 stop bit).

Note: The serial cable may need a NULL modem termination depending on the target system hardware.

List Actively Running VMs

Execute the following command to list the actively running VMs on ACRN:

ACRN:\>vm_list

The following is an example output:

 ---Entering ACRN SHELL---
ACRN:\>vm_list

VM_UUID                          VM_ID VM_NAME                          VM_STATE
================================ ===== ================================ ========
b2a92becca6b11eab1063716a8ba0bb9   0   ACRN PRE-LAUNCHED VM0            Running
dbbbd4347a574216a12c2201f1ab0240   1   ACRN SOS VM                      Running

Open Console Session to VM

Execute the following command to open a console session with a VM, replacing # with the VM_ID of an active VM (see above vm_list command):

ACRN:\>vm_console #

Tip

After starting a VM console session, press Ctrl + Space to return to the ACRN shell console.

ACRN Best Known Methods

Document/Section

Description

This section contains a collection of Best Known Methods (BKMs) for the ACRN Hypervisor.

Convert KVM images for ACRN

Document/Section

Description

This section provides instructions on converting KVM images for use with ACRN.

Inter-VM Communication via Shared Memory

Document/Section

Description

This section details the procedure to enable Microsoft Windows as a Guest on the ACRN hypervisor.
