Benchmark Data

Important

Performance varies by use, configuration and other factors. Learn more at https://intel.com/PerformanceIndex.

Performance results are based on testing as of dates shown in configurations and may not reflect all publicly available updates. See configuration disclosure for details. No product or component can be absolutely secure.

Your costs and results may vary.

Intel technologies may require enabled hardware, software or service activation.

The following section is applicable to:

Benchmark Platforms

Intel® Core™ i7-1185GRE Processor

Unless otherwise stated, results obtained for the Intel® Core™ i7-1185GRE Processor were performed on the following system:

Manufacturer	Vecow*
MPN	SPC-7100
Processor	Intel® Core™ i7-1185GRE Processor 1.8 GHz to 4.4 GHz 15W TDP
Memory	32 GB DDR4
OS	ECI core-jammy

Intel Atom® x6425RE Processor

Unless otherwise stated, results obtained for the Intel Atom® x6425RE Processor were performed on the following system:

Manufacturer	ASRock*
MPN
Processor	Intel Atom® x6425RE Processor 1.9 GHz 12W TDP
Memory	16 GB DDR4
OS	ECI core-jammy

48-Hour Benchmark Results

The 48-Hour Benchmark has been used to evaluate the performance of a few systems. The 48-Hour Benchmark utilizes the following workloads with and without Cache Allocation Technology:

• Caterpillar - The Caterpillar benchmark measures the execution time variation of a memory test workload. The performance of the workload is impacted by cache misses. Using Cache Allocation Technology improves application performance by assigning CPU affinity to cache ways, which can be dedicated to real-time applications.

• Cyclictest Workload - Cyclictest is most commonly used for benchmarking real-time (RT) systems. It is one of the most frequently used tools for evaluating the relative performance of an RT. Cyclictest accurately and repeatedly measures the difference between a thread’s intended wake-up time and the time at which it actually wakes up to provide statistics about the system’s latency. It can measure latency in real-time systems caused by the hardware, the firmware, and the operating system.

The data shown below demonstrates the advantage of Cache Allocation Technology when executing real-time workloads.

See also

See section 48-Hour Benchmark for more information about this benchmark.

The following configurations were used:

Caterpillar without Cache Allocation Technology

• Benchmark: Caterpillar

• Benchmark Affinity: Core 3

• Benchmark Priority: chrt 99

• Noisy Neighbor: stress-ng memcpy

• Noisy Neighbor Affinity: 0

• Duration: ~3 hours

• Cache Allocation Technology Enabled: No

Caterpillar with Cache Allocation Technology

• Benchmark: Caterpillar

• Benchmark Affinity: Core 3

• Benchmark Priority: chrt 99

• Noisy Neighbor: stress-ng memcpy

• Noisy Neighbor Affinity: Core 0

• Duration: ~3 hours

• Cache Allocation Technology Enabled: Yes (COS0=0x0f → Cores 0-2, COS3=0xf0 → Core 3)

Cyclictest without Cache Allocation Technology

• Benchmark: Cyclictest Workload with interval of 250μs

• Benchmark Affinity: Core 3

• Benchmark Priority: chrt 99

• Noisy Neighbor: stress-ng memcpy

• Noisy Neighbor Affinity: Core 0

• Duration: 24 hours

• Cache Allocation Technology Enabled: No

Cyclictest with Cache Allocation Technology

• Benchmark: Cyclictest Workload with interval of 250μs

• Benchmark Affinity: Core 3

• Benchmark Priority: chrt 99

• Noisy Neighbor: stress-ng memcpy

• Noisy Neighbor Affinity: Core 0

• Duration: 24 hours

• Cache Allocation Technology Enabled: Yes (COS0=0x0f → Cores 0-2, COS1=0xf0 → Core 3)

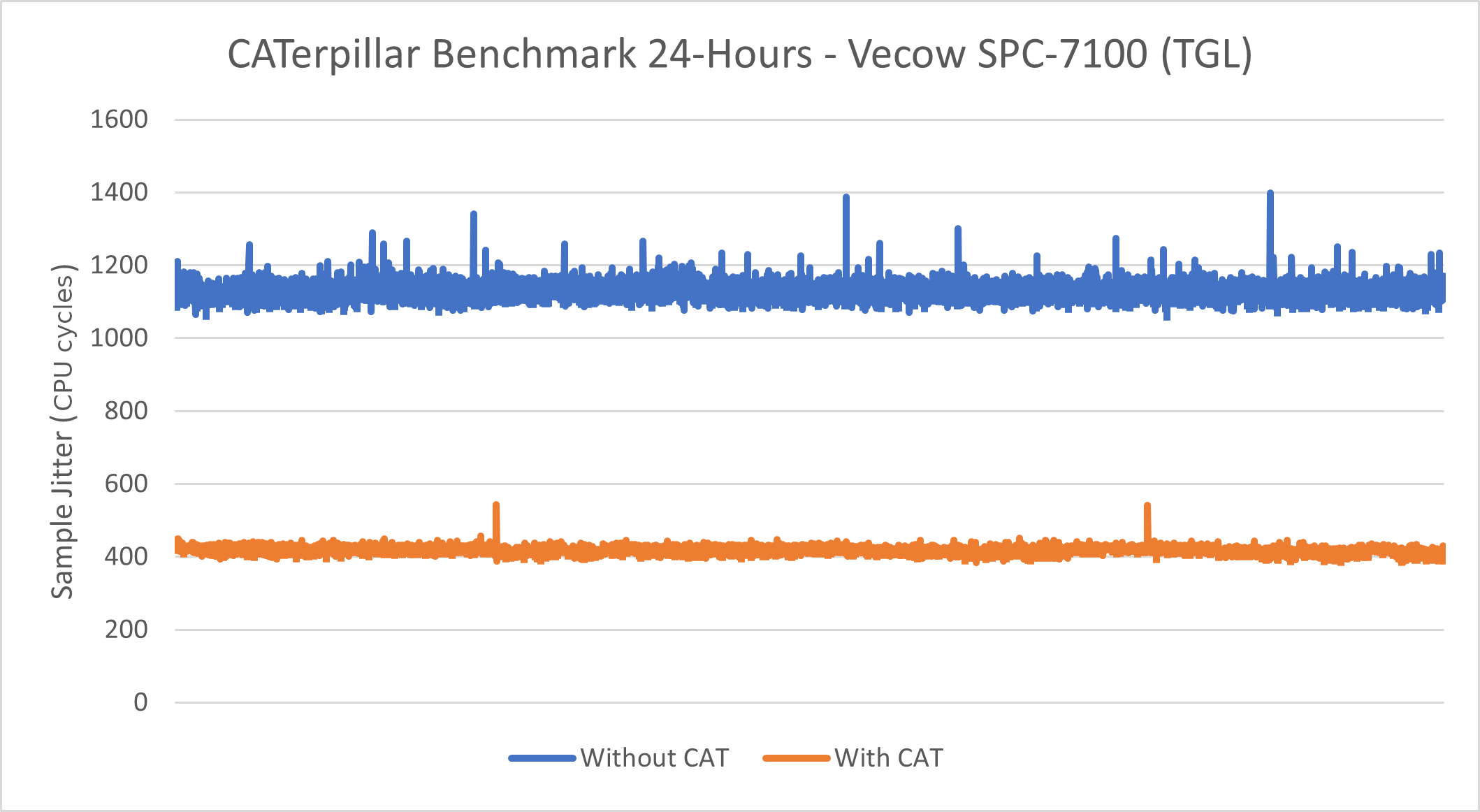

Intel® Core™ i7-1185GRE Processor - Caterpillar

See also

See section Caterpillar for more information about this benchmark.

Canonical Ubuntu*

This benchmark data was collected on core-jammy in a native environment.

	Without CAT	With CAT
Minimum Sample Jitter (CPU Cycles)	1062	385
Maximum Sample Jitter (CPU Cycles)	1398	543
Standard Deviation (CPU Cycles)	21.89	8.89

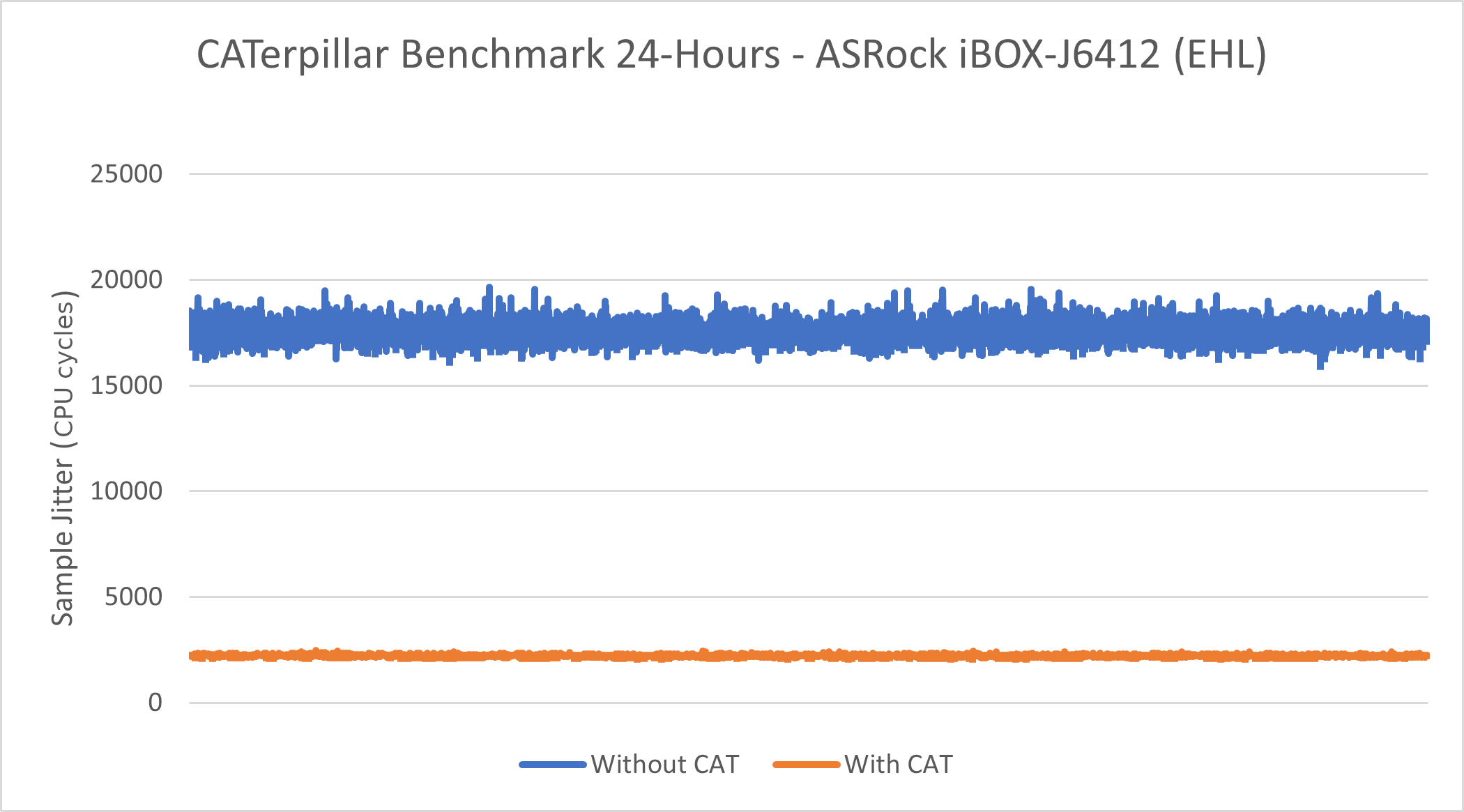

Intel® Atom x6425RE Processor - Caterpillar

See also

See section Caterpillar for more information about this benchmark.

Canonical Ubuntu*

This benchmark data was collected on core-jammy in a native environment.

	Without CAT	With CAT
Minimum Sample Jitter (CPU Cycles)	15958	2109
Maximum Sample Jitter (CPU Cycles)	19658	2490
Standard Deviation (CPU Cycles)	446.09	31.29

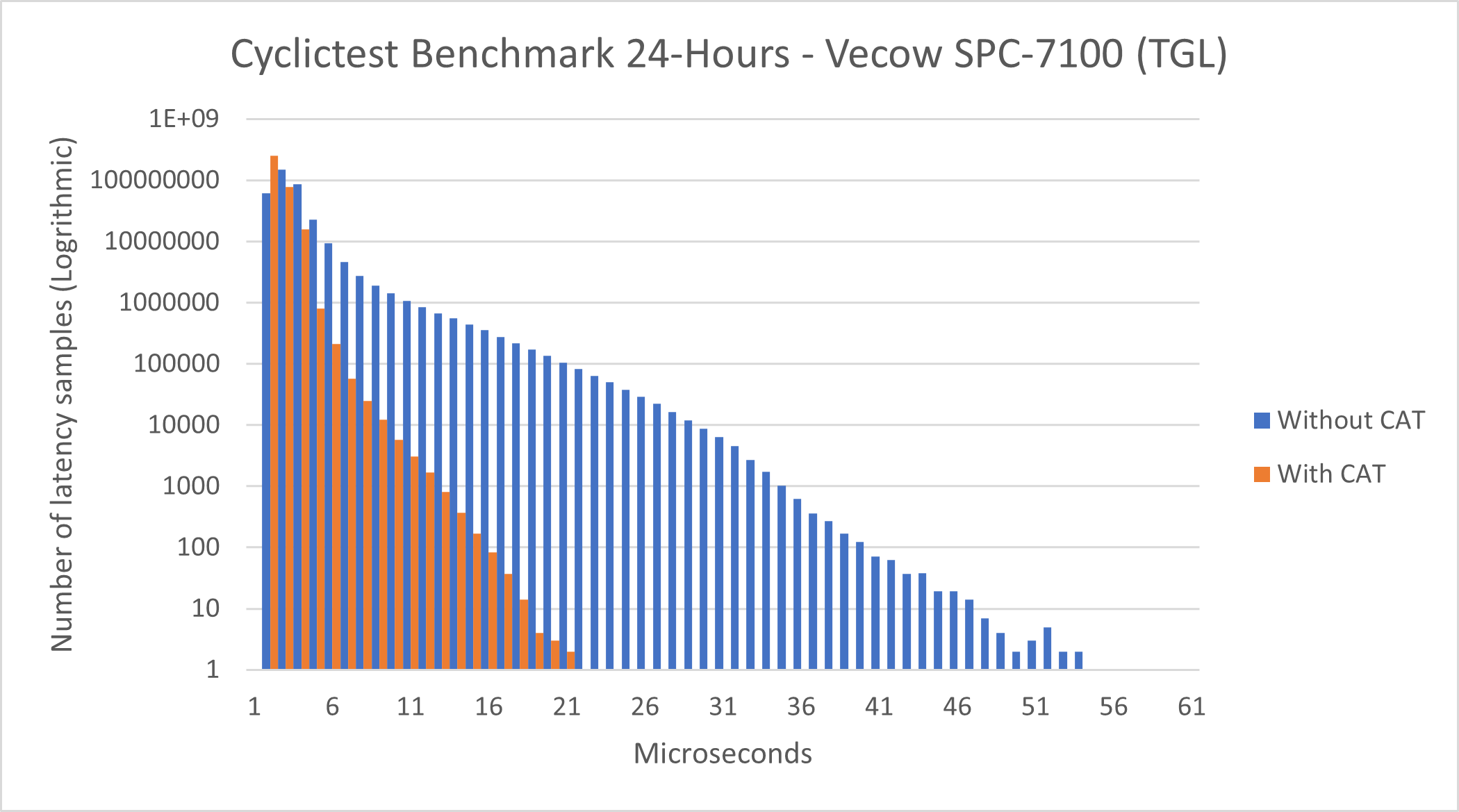

Intel® Core™ i7-1185GRE Processor - Cyclictest

See also

See section Cyclictest Workload for more information about this benchmark.

Canonical Ubuntu*

This benchmark data was collected on core-jammy in a native environment.

	Without CAT	With CAT
Total Samples	345600000	345600000
Minimum Latencies (μs)	00001	0000`
Average Latencies (μs)	00002	00001
Maximum Latencies (μs)	00055	00022

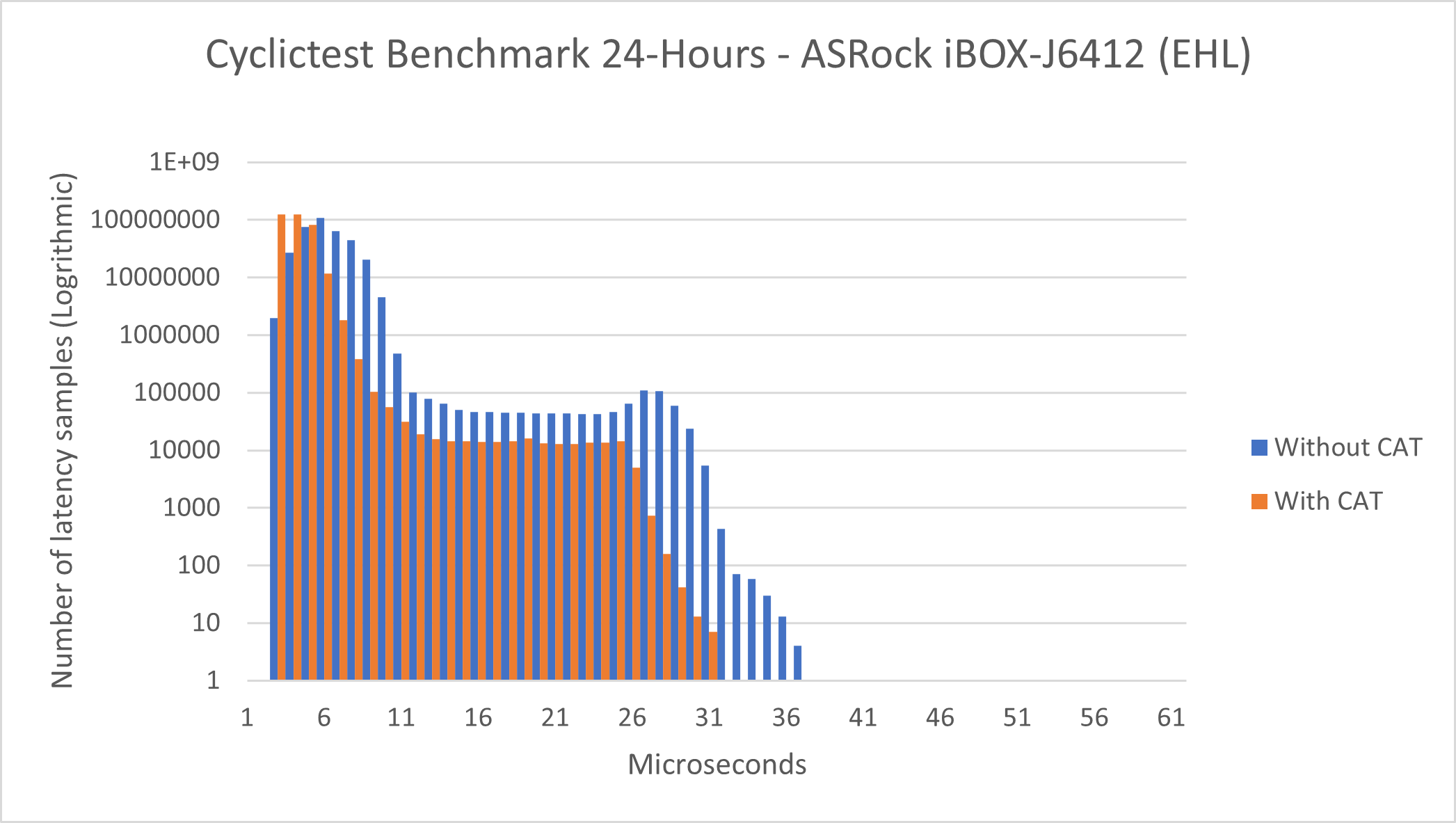

Intel® Atom x6425RE Processor - Cyclictest

Canonical Ubuntu*

This benchmark data was collected on core-jammy in a native environment.

See also

See section Cyclictest Workload for more information about this benchmark.

	Without CAT	With CAT
Total Samples	345600000	345600000
Minimum Latencies (μs)	00002	00002
Average Latencies (μs)	00005	00002
Maximum Latencies (μs)	00036	00036

CODESYS OPC UA Client Benchmark Results

See also

See section CODESYS OPC UA Client Benchmark for more information about this benchmark.

Intel® Core™ i7-1185GRE Processor - CODESYS OPC UA Client

Red Hat Enterprise Linux*

This benchmark data was collected on Red Hat Enterprise Linux* 9.3 (Plow) in a container environment using the following runtime configuration:

Publishing Interval	10 ms
Monitored Item	Int32
Workload Type	FLOAT
Workload Iterations	10001
Stress-ng	Disabled
Cyclictest	Disabled
Tracing	Disabled

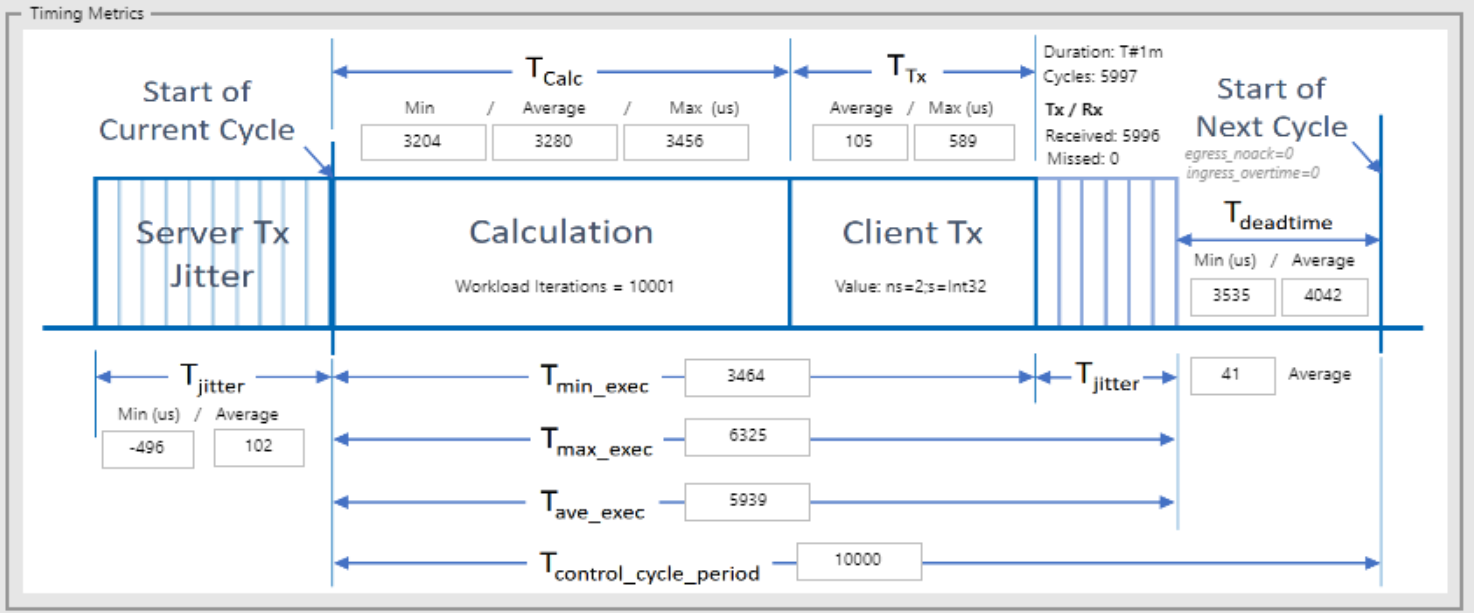

This benchmark was performed on a single-node configuration and a dual-node configuration. For the dual-node configuration, the nodes were connected via a standard Ethernet network. The results are summarized in the tabs below:

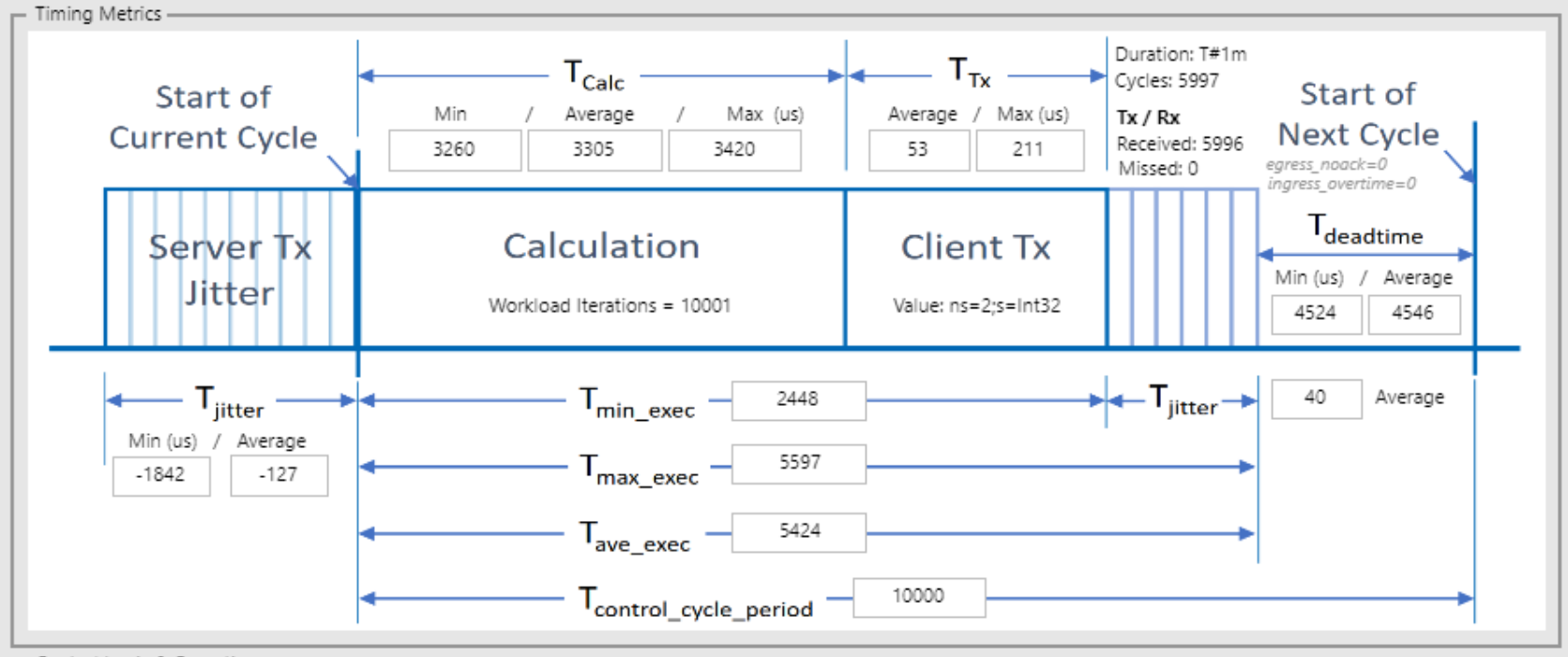

Single-nodeDual-node

Control Cycle Period (μs)	10000
Transmitted Packets - Total	5996
Transmitted Packets - Missed	0
Calculation Time - Minimum (μs)	3260
Calculation Time - Maximum (μs)	3420
Calculation Time - Average (μs)	3305
Execution Time - Minimum (μs)	2448
Execution Time - Maximum (μs)	5597
Execution Time - Average (μs)	5597
Execution Time Jitter - Average (μs)	40
Client Transmit Time - Average (μs)	52
Client Transmit Time - Maximum (μs)	211
Server Transmit Jitter - Minimum (μs)	-1842
Server Transmit Jitter - Average (μs)	-127
Dead time - Minimum (μs)	4524
Dead time - Average (μs)	4546

The full data report is available to download here: codesys-opc-ua-client_single_tgl.zip

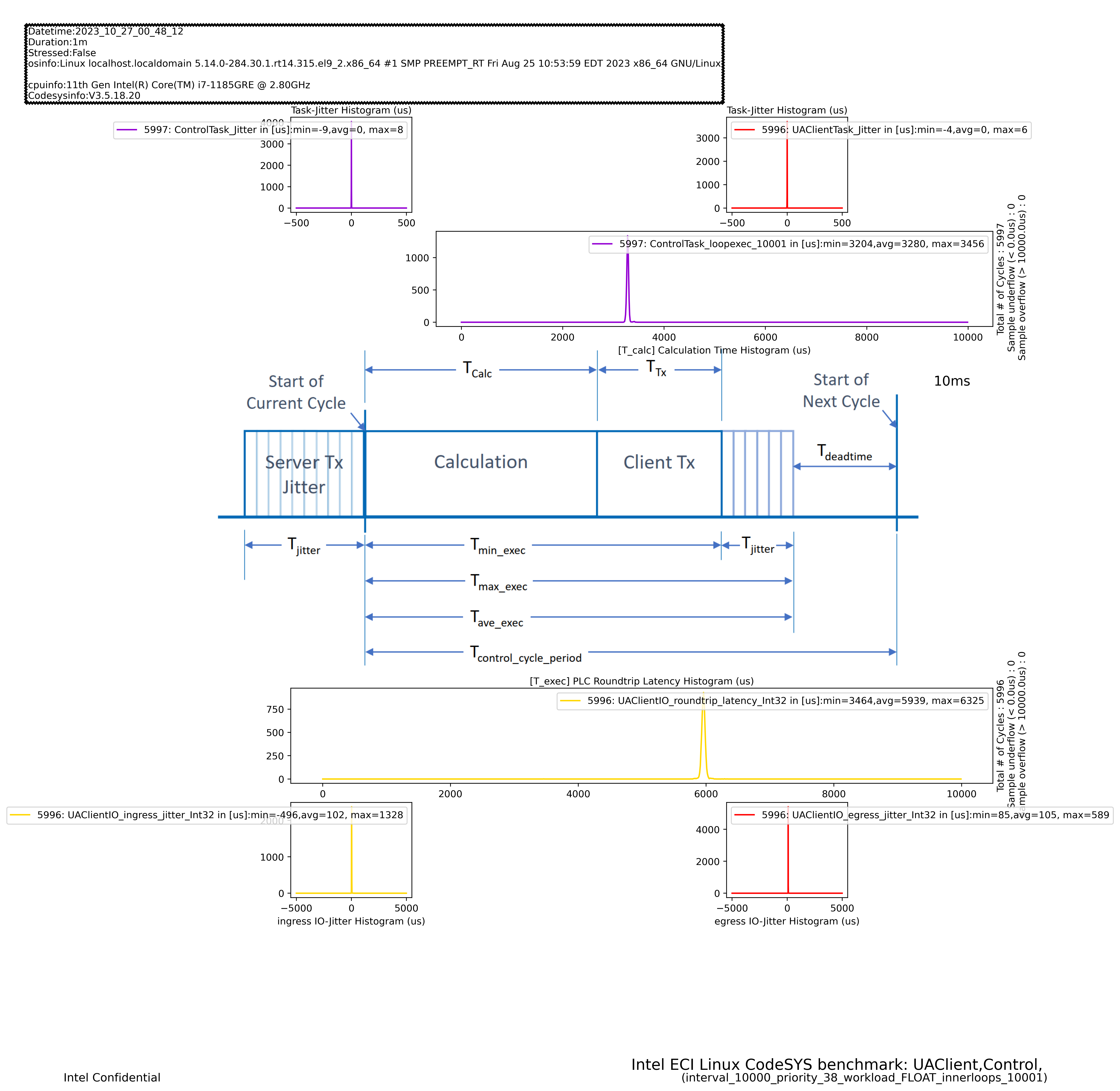

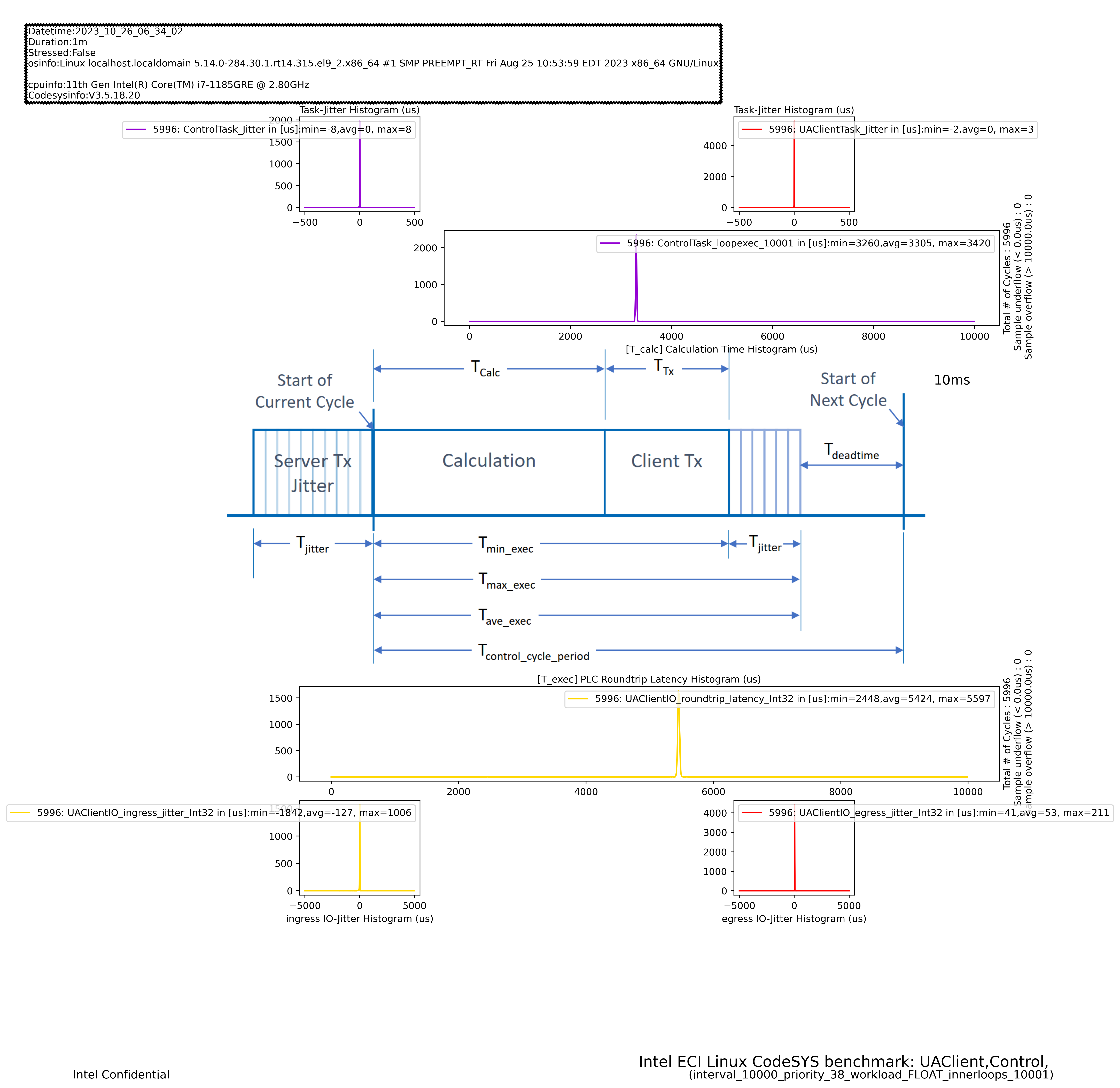

Click the figure below to view the data visualized as histograms:
