Benchmarks & Performance Characterization

This section discusses the various benchmark tests and configuration to evaluate system performance.

The following section is applicable to:

../../_images/target_generic3.png

48-Hour Benchmark

Benchmark

Units

Version

Source

48-Hour Benchmark

(see respective benchmark)

1.1

Intel® created

The 48-Hour Benchmark exercises the Caterpillar and Cyclictest Workload benchmarks with and without Cache Allocation Technology to demonstrate the benefits of Cache Allocation Technology on real-time workloads.

The ECI 48-Hour Benchmark exercises the following tests and configurations:

Test 1:

  • Benchmark: Caterpillar

  • Benchmark Affinity: Core 3

  • Benchmark Priority: chrt 99

  • Noisy Neighbor: stress-ng memcpy

  • Noisy Neighbor Affinity: 0

  • Duration: ~3 hours

  • Cache Allocation Technology Enabled: No

Test 2:

  • Benchmark: Caterpillar

  • Benchmark Affinity: Core 3

  • Benchmark Priority: chrt 99

  • Noisy Neighbor: stress-ng memcpy

  • Noisy Neighbor Affinity: Core 0

  • Duration: ~3 hours

  • Cache Allocation Technology Enabled: Yes (COS0=0x0f → Cores 0-2, COS3=0xf0 → Core 3)

Test 3:

  • Benchmark: Cyclictest Workload with interval of 250μs

  • Benchmark Affinity: Core 3

  • Benchmark Priority: chrt 99

  • Noisy Neighbor: stress-ng memcpy

  • Noisy Neighbor Affinity: Core 0

  • Duration: 24 hours

  • Cache Allocation Technology Enabled: No

Test 4:

  • Benchmark: Cyclictest Workload with interval of 250μs

  • Benchmark Affinity: Core 3

  • Benchmark Priority: chrt 99

  • Noisy Neighbor: stress-ng memcpy

  • Noisy Neighbor Affinity: Core 0

  • Duration: 24 hours

  • Cache Allocation Technology Enabled: Yes (COS0=0x0f → Cores 0-2, COS1=0xf0 → Core 3)

Install 48-Hour Benchmark

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install mega-benchmark

Execute 48-Hour Benchmark

To start the benchmark, run the following command:

$ /opt/benchmarking/mega-benchmark/48_hour_benchmark.sh

Results are logged to the files named: results_48_hour_benchmark_<date>, caterpillar_without_cat.log, and caterpillar_with_cat.log.

Interpret 48-Hour Benchmark Results

Since the 48-Hour Benchmark comprises a subset of benchmarks, refer to the respective benchmark sections:

Example of 48-Hour Benchmark Data

Refer to 48-Hour Benchmark Results for the sample data collected from the 48-Hour benchmark.

Mega Benchmark

Benchmark

Units

Version

Source

Mega Benchmark

(see respective benchmark)

1.1

Intel® created

The ECI mega-benchmark exercises the following tests:

Install Mega Benchmark

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install mega-benchmark

Execute Mega Benchmark

To start the benchmark, run the following command:

$ /opt/benchmarking/mega-benchmark/mega_benchmark.sh

Results are logged to a file named: results_mega_benchmark_<date>

Interpret Mega Benchmark Results

Since the Mega Benchmark comprises a subset of benchmarks, refer to the respective benchmark sections:

Cyclictest Workload

Benchmark

Units

Version

Source

Cyclictest

microseconds

1.50

https://git.kernel.org/pub/scm/utils/rt-tests/rt-tests.git/snapshot/rt-tests-1.5.tar.gz

Cyclictest is most commonly used for benchmarking real-time (RT) systems. It is one of the most frequently used tools for evaluating the relative performance of an RT. Cyclictest accurately and repeatedly measures the difference between a thread’s intended wake-up time and the time at which it actually wakes up to provide statistics about the system’s latency. It can measure latency in real-time systems caused by the hardware, the firmware, and the operating system.

Install Cyclictest Workload

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install rt-tests-scripts

Execute Cyclictest Workload

An example script that runs the cyclictest benchmark and the README is available at /opt/benchmarking/rt-tests. The script performs the following runtime optimizations before executing the benchmark:

  • Assigns benchmark thread affinity to core 3

  • Assigns non-benchmark thread affinity to core 0

  • Changes the priority of benchmark thread to 95 (using: chrt -f 95)

  • Disables kernel machine check interrupt

  • Increases the thread runtime utilization to infinity

To start the benchmark, run the following command:

$ sudo /opt/benchmarking/rt-tests/start-cyclic.py

Default parameters are used unless otherwise specified. Run the script with --help to list the modifiable arguments.

See also

Sanity Check 0 - Cyclictest Workload provides an example on how to run this benchmark and display the results.

Interpret Cyclictest Results

Short

Explanation

T

Thread: Thread index and thread ID

P

Priority: RT thread priority

I

Interval: Intended wake up period for the latency measuring threads

C

Count: Number of times the latency was measured that is, iteration count

Min

Minimum: Minimum latency that was measured

Act

Actual: Latency measured during the latest completed iteration

Avg

Average: Average latency that was measured

Max

Maximum: Maximum latency that was measured

On a non-realtime system, the result might be similar to the following:

T: 0 ( 3431) P:99 I:1000 C: 100000 Min:      5 Act:   10 Avg:   14 Max:   39242
T: 1 ( 3432) P:98 I:1500 C:  66934 Min:      4 Act:   10 Avg:   17 Max:   39661

The right-most column contains the most important result, that is, the worst-case latency of 39.242 ms (Max value).

On a realtime-enabled system, the result might be similar to the following:

T: 0 ( 3407) P:99 I:1000 C: 100000 Min:      7 Act:   10 Avg:   10 Max:      18
T: 1 ( 3408) P:98 I:1500 C:  67043 Min:      7 Act:    8 Avg:   10 Max:      22

This result indicates an apparent short-term worst-case latency of 18 ms. According to this, it is important to pay attention to the Max values as these are indicators of outliers. Even if the system has decent Avg (average) values, a single outlier as indicated by Max is enough to break or disturb a real-time system.

According to the README from the https://git.kernel.org/pub/scm/utils/rt-tests/rt-tests.git repository:

Running cyclictest only over a short period of time and without creating appropriate real-time stress conditions is rather meaningless, since the execution of an asynchronous event from idle state is normally always quite fast, and every - even non-RT system - can do that. The challenge is to minimize the latency when reacting to an asynchronuous event, irrespective of what code path is executed at the time when the external event arrives. Therefore, specific stress conditions must be present while cyclictest is running to reliably determine the worst-case latency of a given system.

Additional Cyclictest Workload

Another script, rt_bmark.py, performs stress workloads when executing the benchmark cyclictest.

To start the benchmark, run the following command:

$ sudo /opt/benchmarking/rt-tests/rt_bmark.py

Jitter

Benchmark

Units

Version

Source

Jitter

CPU Cycles

1.9

Intel® created

The Jitter benchmark measures the execution time variation of a CPU test workload. The performance of the workload is impacted by kernel interrupts. Minimizing these interrupts also minimizes the jitter that applications could potentially experience.

Install Jitter

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install jitter

Execute Jitter

An example script that runs the Jitter benchmark is available at /opt/benchmarking/jitter/jitter. The script performs the following runtime optimizations before executing the benchmark:

  • Assigns benchmark thread affinity to core 3

  • Assigns non-benchmark thread affinity to core 0

  • Changes the priority of benchmark thread to 95 (using: chrt -f 95)

  • Disables kernel machine check interrupt

  • Increases the thread runtime utilization to infinity

  • Starts a “noisy neighbor” on an adjacent core using stress-ng --cpu 1 --memcpy

To assess the impact of Cache Allocation Technology, it is useful to perform the benchmark with and without Cache Allocation Technology enabled. The two examples below provide a method of achieving this.

  1. The first step is to establish a baseline performance to compare against. Start the benchmark without Cache Allocation Technology. Take note of the Inst_Jitter value, since indicates the execution jitter in CPU cycles experienced by the benchmark.

    $ sudo /opt/benchmarking/jitter/start-benchmark.py

  2. Now, start the benchmark with Cache Allocation Technology. The pqos-helper tool is being used here to partition the CPU cache and isolate the cache used by the benchmark. Note how only core 3 is assigned to Class of Service (COS) 1, and the only task executing on core 3 will be the benchmark. This cache configuration should reduce cache evictions experienced by the benchmark caused by the “noisy neighbor”, resulting in reduced execution jitter.

    $ sudo /opt/pqos/pqos-helper.py --cos0 0x0f --cos1 0xf0 --assign_cos "0=0 0=1 0=2 1=3" --pqos_rst --pqos_msr --command "/opt/benchmarking/jitter/start-benchmark.py"

  3. Compare the results of the two runs. Ideally, the run with Cache Allocation Technology enabled should exhibit lower execution jitter.

Default parameters are used unless otherwise specified. Run the script with --help to list the modifiable arguments.

See also

Sanity Check 2 - Jitter Workload provides an example on how to run this benchmark and display the results.

Interpret Jitter Results

Inst_Min   Inst_Max   Inst_jitter last_Exec  Abs_min    Abs_max      tmp       Interval     Sample No
 177205     235598      58393     177219     164702     243978    1227096064 3604948177        200      66777

The most important measurement is Inst_jitter. This measurement describes the execution jitter (in CPU cycles) during the display update interval. It is desired that Inst_jitter be as low as possible. The delta between Abs_max and Abs_min is the overall jitter spread. Ideally, the spread must be as low as possible.

LMbench

Benchmark

Units

Version

Source

LMbench

Nanosecond

3.0a9

https://sourceforge.net/projects/lmbench/files/development/lmbench-3.0-a9/lmbench-3.0-a9.tgz/download

LMbench is a suite of simple, portable, ANSI/C microbenchmarks for UNIX/POSIX. In general, it measures two key features: latency and bandwidth. LMbench is intended to provide system developers an insight into basic costs of key operations.

lat_mem_rd measures memory read latency for varying memory sizes and strides. The results are reported in nanoseconds per load and have been verified to be accurate to within a few nanoseconds on an SGI Indy. The entire memory hierarchy is measured, including onboard cache latency and size, external cache latency and size, main memory latency, and TLB miss latency. Only data accesses are measured; the instruction cache is not measured.

The specific cache and memory latency benchmark is available at /usr/bin/lat_mem_rd.

Install LMBench

You can install this component from the open-source Debian* or Canonical Ubuntu* APT repository. Run the following command to install this component.

logo_debian logo_ubuntu

Install from individual Deb package
$ sudo apt install lmbench

Execute LMBench

To start this benchmark, run the following command:

$ cd ~/;taskset -c $CORE_AFFINITY /usr/bin/lat_mem_rd -P 1 $MEMRD_SIZE $MEMRD_CHUNCKS &> /tmp/result_lat_mem_rd.txt

Default parameters are used unless otherwise specified (MEMRD_SIZE and MEMRD_CHUNCKS variables). Run the script with --help to list the modifiable arguments.

See also

Sanity Check 1 - LMbench Workload provides an example on how to run this benchmark and display the results.

Interpret LMbench Results

The output is best examined graphically. You get a graph with four plateaus. The graph should plotted in log base 2 of the array size on the X axis and the latency on the Y axis. Each stride is then plotted as a curve. The plateaus that appear correspond to the onboard cache (if present), external cache (if present, main memory latency, and TLB miss latency.

Caterpillar

Benchmark

Units

Version

Source

Caterpillar

CPU Cycles

1.2

Intel® created

The Caterpillar benchmark measures the execution time variation of a memory test workload. The performance of the workload is impacted by cache misses. Using Cache Allocation Technology improves application performance by assigning CPU affinity to cache ways, which can be dedicated to real-time applications.

Install Caterpillar

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install caterpillar

Execute Caterpillar

An example script running the Caterpillar benchmark is available at /opt/benchmarking/caterpillar/start-benchmark.py. The script performs the following runtime optimizations before executing the benchmark:

  • Assigns benchmark thread affinity to core 3

  • Assigns non-benchmark thread affinity to core 0

  • Changes priority of benchmark thread to 95 (using: chrt -f 95)

  • Disables kernel machine check interrupt

  • Increases thread runtime utilization to infinity

  • Starts a “noisy neighbor” on an adjacent core using stress-ng --cpu 1 --memcpy

To assess the impact of Cache Allocation Technology, it is useful to perform the benchmark with and without Cache Allocation Technology enabled. The two examples below provide a method of achieving this.

  1. The first step is to establish a baseline performance to compare against. Start the benchmark without Cache Allocation Technology. Take note of the SmplJitter value, since indicates the execution jitter in CPU cycles experienced by the benchmark.

    $ sudo /opt/benchmarking/caterpillar/start-benchmark.py

  2. Now, start the benchmark with Cache Allocation Technology. The pqos-helper tool is being used here to partition the CPU cache and isolate the cache used by the benchmark. Note how only core 3 is assigned to Class of Service (COS) 1, and the only task executing on core 3 will be the benchmark. This cache configuration should reduce cache evictions experienced by the benchmark caused by the “noisy neighbor”, resulting in reduced execution jitter.

    $ sudo /opt/pqos/pqos-helper.py --cos0 0x0f --cos1 0xf0 --assign_cos "0=0 0=1 0=2 1=3" --pqos_rst --pqos_msr --command "/opt/benchmarking/caterpillar/start-benchmark.py"

  3. Compare the results of the two runs. Ideally, the run with Cache Allocation Technology enabled should exhibit lower execution jitter.

Default parameters are used unless otherwise specified. You may run the script with --help to list the modifiable arguments.

See also

Sanity Check 3 - Caterpillar Workload provides an example on how to run this benchmark and display the results.

Interpret Caterpillar Results

SampleMin  SampleMax   SmplJitter  SessionMin SessionMax SessionJitter  Sample
  254023     300255       9649       233516     303071       9743        200

The most important measurement is SessionJitter. This measurement describes the maximum execution jitter (in CPU cycles) during the entire execution of the benchmark. It is desired that SessionJitter be as low as possible. The delta between SessionMax and SessionMin is the overall execution spread. Ideally, the spread must be as low as possible.

RT-app

Benchmark

Units

Version

Source

rt-app

N/A

1.0-109-g78ae2cf

https://github.com/scheduler-tools/rt-app

RT-app is a tool that can be used to emulate a use case. Not only the sleep and run pattern can be emulated, but also the dependency between tasks like accessing same critical resources, creating sequential wake up, or syncing the wake up of threads. The use case is described in a JSON like file, which is first parsed by workgen and then rt-app.

Install RT-app

This component can be installed from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install rt-app-scripts

Execute RT-app

An example script that runs the RT-app tool is available at /opt/benchmarking/rt-app.

Rhealstone

Benchmark

Units

Version

Source

Rhealstone

nanoseconds

commitID c9bdf48a

https://gitlab.denx.de/Xenomai/xenomai/tree/master/testsuite/latency

Rhealstone is a measurement targeted specifically toward true multitasking solutions. In this benchmark, five categories of activities crucial to the performance of real-time systems are represented:

  • Task switching time

  • Preemption time

  • Semaphore shuffling time

  • Interrupt latency time

  • Deadlock breaking time

Install Rhealstone

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
# For non-Xenomai kernels
$ sudo apt install rhealstone

# For Xenomai kernels
$ sudo apt install rhealstone-xenomai

Execute Rhealstone

Two example scripts that run the Rhealstone benchmark are available at /opt/benchmarking/(rhealstone|rhealstone-xenomai). The script run_xlatency.py performs the following runtime optimizations before executing the benchmark latency:

  • Assigns benchmark thread affinity to core 0

  • Assigns non-benchmark thread affinity to core 1, as stress workloads.

  • Dumps histogram to <file> in a format easily readable with gnuplot

  • Prints statistics of minimum, average, and maximum latencies

  • Sets sampling period to 250 us

To start the benchmark, run the following script:

//without stress
$ cd /opt/benchmarking/rhealstone
$ sudo ./run_xlatency.py -T <runtime>

//with stress
$ cd /opt/benchmarking/rhealstone
$ sudo ./run_xlatency.py -T <runtime> --stress

//with stress exclude gfx for image without glxgears
$ cd /opt/benchmarking/rhealstone
$ sudo ./run_xlatency.py -T <runtime> --stress --no-gfx

Command line parameters:

runtime:        Set test period in seconds.

Default parameters are used unless otherwise specified. Run the script with --help to list the modifiable arguments. Otherwise, run the latency benchmark directly with --help to list the modifiable arguments.

See also

Sanity Check 4 - Latency Workload provides an example on how to run this benchmark and display the results.

The script run_rhealstone_bmark.py executes benchmarks ctx_lat, deadlock_bt, preempt_lat, and semaphore_lat separately for <num> times and gets the average result for each.

To start the benchmark, run the following command:

$ cd /opt/benchmarking/rhealstone
$ sudo ./run_rhealstone_bmark.py <num>

See also

Sanity Check 7 - Rhealstone Workload provides an example on how to run this benchmark and display the results.

Interpret Rhealstone Results

The results obtained from run_xlatency.py are measured interrupt latency. Lower values are better.

...
#Avg: 0.683 us
#Max: 4.656 us
#Max list: [4.656]
...

The results obtained from run_rhealstone_bmark.py are measured time to perform: task switching, preemption, semaphore shuffling, and deadlock breaking. Lower values are better.

// Task Switching
#ctx_sum is 84878.48
#ctx_avg is 848.78

// Deadlock Breaking
#dead_sum is 225127.860003
#dead_avg is 2251.278600

// Preemption
#pree_sum is 114065.000000
#pree_avg is 1140.650000

// Semaphore Shuffling
#sem_sum is 208111.365000
#sem_avg is 2081.113650

MSI Latency

Benchmark

Units

Version

Source

MSI Latency

nanoseconds

0.5.0-k

Intel® created

Message Signaled Interrupt (MSI) Latency measures interrupt latency for MSIs generated by a discrete or integrated peripheral device, such as the Intel® I210 Ethernet Controller Series and serviced by the IA core. This benchmark measures the MSI interrupt triggered back latency of Intel® I210 Ethernet Controller Series kernel module.

Attention

This benchmark only functions in tandem with an Intel® I210 Ethernet Controller.

Install MSI Latency

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install msi-latency

Execute MSI Latency

An example script that runs the MSI latency benchmark is available at /opt/benchmarking/msi-latency. The script performs the following runtime optimizations before executing the benchmark:

  • Moves all IRQs (except timer and cascade) to core 0

  • Moves all rcu tasks to either core 0, 4, 5, 6, 7, except 1-3

  • Changes the real-time attributes of all rcu tasks to SCHED_OTHER and priority 0

  • Changes the real-time attributes of all tasks on core 1, 2 and 3 to SCHED_OTHER and priority 0

  • Changes the real-time attributes of all tasks to SCHED_OTHER and priority 0

Required kernel boot parameters:

isolcpus=1,3 rcu_nocbs=1,3 nohz_full=1,3 igb.blacklist=yes

To start the benchmark, run the following commands:

$ cd /opt/benchmarking/msi-latency
$ sudo ./msiLatencyTest.sh <RUN_CORE> <IRQ_PERIOD(ms)> <IRQ_COUNT>
$ cat /sys/kernel/debug/msi_latency_test/current_value   # Get current result

Default parameters are used when insert msi_lat.ko, unless otherwise specified. Command line parameters:

Parameter

Description

coreSpecIRQ

Core on which the msi_latency test IRQ handler is run. [0 to n]

coreSpecWQ

Core on which the msi_latency test work queue is run. [0 to n]

irqSpec

Run IRQ as a pthread [0] or in legacy mode [1].

irqPeriod

Period between interrupts in milliseconds.

irqCount

Number of IRQs to send. n > 0 will be finite. n < 0 will be infinite.

verbosity

Verbosity of periodic prints to dmesg. [0 to 3]

offsetStart

Offset that is subtracted from each starting timestamp when calculating latency and generating histogram buckets (does not effect raw values). Mechanism used to remove delta time (nanosecond) from when SW requests interrupt to HW services interrupt.

blockIRQ

Duration (clock ticks) for which the interrupts are blocked after requesting MSI.

See also

Sanity Check 5 - MSI Latency provides an example on how to run this benchmark and display the results.

Interpret MSI Latency Results

************ RESULTS (ns) ************

[15996.755567] * Max: 9056
[15996.755570] * Avg: 6626
[15996.755573] * Min: 5360

The reported value is the measured time to service MSI requests to the Intel® I210 Ethernet Controller. Lower values are better.

MSI Jitter

Benchmark

Units

Version

Source

MSI Jitter

nanoseconds

0.1.0-m

Intel® created

MSI jitter benchmark tool is a benchmark tool to check the jitter of cyclical MSI from an Intel® I210 Ethernet Controller. This tool records each cyclical MSI timestamps in the software interrupt handler and calculates the delta between each timestamps and compares the delta with cycle time as the jitter.

Attention

This benchmark only functions in tandem with an Intel® I210 Ethernet Controller.

Install MSI Jitter

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install msi-jitter

Execute MSI Jitter

An example script that runs the MSI latency benchmark is available at /opt/benchmarking/msi-jitter. The script performs the following runtime optimizations before executing the benchmark:

  • Moves all IRQs (except timer and cascade) to core 0

  • Moves all rcu tasks to either core 0, 4, 5, 6, 7, except 1-3

$ sudo /opt/benchmarking/msi-jitter/irq_rcu.sh

To start the benchmark, run the following commands:

$ cd /opt/benchmarking/msi-jitter
$ sudo ./run_msijitter.sh <unbind_igb_id> <run_core> <interval(ms)> <runtime(s)>
$ cat /sys/kernel/debug/msi_jitter_test/current_value   # Get current result

Command line parameters:

unbind_igb_id:  Could get igb id need to unbind by `$lspci -v | grep 'Ethernet controller: Intel Corporation I210 Gigabit Network Connection'`.
run_core:       Set which core will handle MSI interrupt.
interval:       Set cycle time.
runtime:        Set test period.

See also

Sanity Check 6 - MSI Jitter provides an example on how to run this benchmark and display the results.

Interpret MSI Jitter Results

 ************ RESULTS (ns) ************

[ 4177.021407] * Max: 3184
[ 4177.023363] * Avg: 222
[ 4177.025218] * Min: 0

The reported value is the measured jitter of servicing MSI requests to the Intel® I210 Ethernet Controller. Lower values are better.

MMIO Latency

Benchmark

Units

Version

Source

MMIO Latency

nanoseconds

1.0

Intel® created

MMIO-latency is a simple driver that creates an affinitized thread to read a virtual map physical address (Memory-mapped I/O). Memory read latency is measured. The thread is created and started on initialization and loops LOOPS number of times. It also provides a char device that reads the current statistic counters, by using inline assembly and kernel function to get a very close benchmark.

Install MMIO Latency

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
$ sudo apt install mmio-latency

Execute MMIO Latency

An example script that runs the MSI latency benchmark is available at /opt/benchmarking/mmio-latency. The script performs the following runtime optimizations before executing the benchmark:

  • Moves all IRQs (except timer and cascade) to core 0

  • Moves all rcu task to either core 0, 4, 5, 6, 7, except 1-3

  • Changes realtime attributes of all rcu tasks to SCHED_OTHER and priority 0

  • Changes realtime attributes of all tasks on core 1, 2 and 3 to SCHED_OTHER and priority 0

  • Changes realtime attributes of all tasks to SCHED_OTHER and priority 0

To start the benchmark, run the following command:

$ sudo /opt/benchmarking/mmio-latency/mmioLatency.sh <MMIO_address> <block_irq(1 or 0)>

Default parameters are used unless otherwise specified.

Find the physical mmio address to test using the command: lspci -vvv -s $BDF.

For example:

$ lspci -nn ==> 00:02.0 SATA controller
$ lspci -vvv -s 00:02.0 ==> Region 0: Memory at 80002000

See also

Sanity Check 8 - MMIO Latency Workload provides an example on how to run this benchmark and displays the results.

Interpret MMIO Latency Results

RT Core Module
------------------------
 Stats:
  max= 6472
  avg= 2814
  min= 588
  total= 973791140
  loops= 346010

 mmio-outliers: 247
 sched-outliers: 9

The reported value is the latency in reading memory-mapped I/O. Lower values are better.

Real-Time Performance Measurement (RTPM)

Benchmark

Units

Version

Source

RTPM

(See respective benchmark)

1.11

Intel® created

About RTPM

Real-time computing is critical to industrial usage scenarios. Intel® real-time solutions focus on hard real-time use cases where there could be capability failures if the solutions are not executed within the allotted time span. Examples of the usage scenarios include robotics, automotive, and so on.

In a real-time computing system, several factors could impact the latency of reaction to the trigger event. These factors include hardware design, BIOS configuration, OS kernel configuration, system settings, and so on. RTPM is designed to check the key settings of the system and help you to identify the hot-spot of the system for real-time performance and provide a recommendation based on the Best-known Configuration (BKC). In addition, RTPM provides a way to measure the system scheduling latency with some open source tools.

Install Real-Time Performance Measurement

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-realtime-benchmarking
Install from individual Deb package
# For non-Xenomai kernels
$ sudo apt install rtpm

# For Xenomai kernels
$ sudo apt install rtpm-xenomai

RTPM Test Modules

Real-Time Readiness Check

This module leverages one of the Intel® Time Coordinated Computing (Intel® TCC) Tools to check the many attributes that might affect real-time performance.

This module:

  • Verifies whether the system has a supported processor, BIOS, and OS

  • Checks for features, such as Intel® Turbo Boost Technology, Enhanced Intel® SpeedStep® Technology, and processor power-saving states, that might affect real-time performance

  • Reports CPU and GPU frequencies

  • Operates at the OS level

Boot Command Line Check

This module checks the real-time OS boot command line parameters and recommends settings as per BKCs.

Interpreting Boot Command Line Check Results

=============================BOOT CMDLINE CHECK Mon Dec  1 00:00:00 UTC 2021=============================
----------------------------------------------------------------------------------------------------------------------------------------------------------
|CMDLINE ENTRY                                     |CURRENT VALUE                                     |BKC                                               |
----------------------------------------------------------------------------------------------------------------------------------------------------------
|processor.max_cstate                              |0                                                 |0                                                 |
|intel_idle.max_cstate                             |0                                                 |0                                                 |
|clocksource                                       |tsc                                               |tsc                                               |
|tsc                                               |reliable                                          |reliable                                          |
|nmi_watchdog                                      |0                                                 |0                                                 |
|nosoftlockup                                      |nosoftlockup                                      |nosoftlockup                                      |
|intel_pstate                                      |disable                                           |disable                                           |
|efi                                               |runtime                                           |runtime                                           |
|nohalt                                            |Missing                                           |nohalt                                            |
|nohz                                              |Missing                                           |nohz                                              |
|irqaffinity                                       |0                                                 |0                                                 |
|hugepages                                         |Missing                                           |1024                                              |
|cpufreq.off                                       |Missing                                           |1                                                 |
|i915.enable_rc6                                   |Missing                                           |0                                                 |
|i915.enable_dc                                    |Missing                                           |0                                                 |
|i915.disable_power_well                           |Missing                                           |0                                                 |
|mce                                               |Missing                                           |off                                               |
|hpet                                              |Missing                                           |disable                                           |
|numa_balancing                                    |Missing                                           |disable                                           |
|nohz_full                                         |1,3                                               |[xxxx]                                            |
|isolcpus                                          |1,3                                               |[xxxx]                                            |
|rcu_nocbs                                         |1,3                                               |[xxxx]                                            |
----------------------------------------------------------------------------------------------------------------------------------------------------------
Boot cmdline check finished.

Kernel Configuration Check

This module checks the real-time OS kernel configuration and recommends settings as per the best-known configurations.

Interpret Kernel Configuration Check Results

=============================KERNEL CONFIGURATION CHECK Mon Dec  1 00:00:01 UTC 2021=============================
Kernel config file: /boot/config-5.4.115-rt57-intel-pk-standard+
----------------------------------------------------------------------------------------------------------------------------------------------------------
|KERNEL CONFIG ENTRY                               |CURRENT VALUE                                     |BKC                                               |
----------------------------------------------------------------------------------------------------------------------------------------------------------
|CONFIG_SMP                                        |CONFIG_SMP=y                                      |CONFIG_SMP=y                                      |
|CONFIG_PREEMPT_RCU                                |CONFIG_PREEMPT_RCU=y                              |CONFIG_PREEMPT_RCU=y                              |
|CONFIG_GENERIC_IRQ_MIGRATION                      |CONFIG_GENERIC_IRQ_MIGRATION=y                    |CONFIG_GENERIC_IRQ_MIGRATION=y                    |
|CONFIG_EXPERT                                     |CONFIG_EXPERT=y                                   |CONFIG_EXPERT=y                                   |
|CONFIG_PCIE_PTM                                   |CONFIG_PCIE_PTM=y                                 |CONFIG_PCIE_PTM=y                                 |
|CONFIG_EFI                                        |CONFIG_EFI=y                                      |CONFIG_EFI=y                                      |
|CONFIG_HIGH_RES_TIMERS                            |CONFIG_HIGH_RES_TIMERS=y                          |CONFIG_HIGH_RES_TIMERS=y                          |
|CONFIG_RCU_NOCB_CPU                               |CONFIG_RCU_NOCB_CPU=y                             |CONFIG_RCU_NOCB_CPU=y                             |
|CONFIG_HUGETLBFS                                  |CONFIG_HUGETLBFS=y                                |CONFIG_HUGETLBFS=y                                |
|CONFIG_SCHED_MC_PRIO                              |Missing                                           |CONFIG_SCHED_MC_PRIO=n                            |
|CONFIG_PREEMPT_RT                                 |# CONFIG_PREEMPT_RT is not set                    |CONFIG_PREEMPT_RT=y                               |
|CONFIG_CPU_FREQ                                   |# CONFIG_CPU_FREQ is not set                      |CONFIG_CPU_FREQ=n                                 |
|CONFIG_CPU_ISOLATION                              |CONFIG_CPU_ISOLATION=y                            |CONFIG_CPU_ISOLATION=y                            |
|CONFIG_MIGRATION                                  |CONFIG_MIGRATION=y                                |CONFIG_MIGRATION=y                                |
|CONFIG_PCIEPORTBUS                                |CONFIG_PCIEPORTBUS=y                              |CONFIG_PCIEPORTBUS=y                              |
----------------------------------------------------------------------------------------------------------------------------------------------------------
Kernel configuration check finished.

Real-Time Performance Test

This module contains the following benchmarks to evaluate the performance of the target system:

Interpret Real-Time Performance Test Results

Click to toggle gnuplot script

=============================Real-Time PERFORMANCE TEST Mon Dec  1 00:00:02 UTC 2021=============================
Real-time task CPU affinity is set to core 1 by default. Stress is added to other CPU cores if enabled. It's recommended to isolate the core 1 for real-time task from others.
To change the default test duration. Please modify test_cfg file.
Calculating Stress workload running duration...
Setup stress on core 0
Setup stress-ng on core 2
Setup hackbench on core 3
>>> Processing latency...Test duration: 21600s
>>> Latency Test Command: taskset -c 1 /opt/benchmarking/rhealstone/latency -c 1 -p 250 -T 21600 -s -g /tmp/rtpm/latency_test_1643673592.log
# 06:00:00 (periodic user-mode task, 250 us period, priority 99)
# ----lat min|----lat avg|----lat max|-overrun|---msw|
#       7.924|      9.728|     60.457|       0|     0|
7 1
7.5 72
8.5 10063785
9.5 49405401
10.5 22821895
11.5 1447656
...
>>> Processing cyclictest...Test duration: 21600s
>>> Current cyclictest version: cyclictest V 1.00
>>> Cyclictest Test Command: taskset -c 1 cyclictest -p 99 -i 250 -m -a 1 -N -o 3970 -v -r -q -n -D 21600
Max CPUs = 4
# /dev/cpu_dma_latency set to 0us
Thread 0 Interval: 750
Thread 0 using cpu 1.
      0:       0:   16319
      0:    4449:   16103
      0:   10551:    9183
      0:   13394:   15544
      ...
T: 0 (1181838) P:99 I:250 C:85141567 Min:   2910 Act:    3675 Avg:    3627 Max:   20109
>>> Processing msi_latency test...Test duration: 60s
Msi-latency test finish, max:3936 ns, avg:2682 ns, min:2464 ns
>>> Processing msi_jitter test...Test duration: 60s
Msi-jitter test finish, max:1552 ns, avg:304 ns, min:0 ns
>>> Processing rhealstone...Test cycles: 2
>>> Rhealstone Test Command: Cycle 'taskset -c 1 /opt/benchmarking/rhealstone/ctx_lat' 2 times and calcuate the average value
>>> Rhealstone Test Command: Cycle 'taskset -c 1 /opt/benchmarking/rhealstone/deadlock_bt' 2 times and calcuate the average value
>>> Rhealstone Test Command: Cycle 'taskset -c 1 /opt/benchmarking/rhealstone/preempt_lat' 2 times and calcuate the average value
>>> Rhealstone Test Command: Cycle 'taskset -c 1 /opt/benchmarking/rhealstone/semaphore_lat' 2 times and calcuate the average value
[1777.43, 1753.55]
[1777.43, 1753.55]
ctx_sum is 3530.98
ctx_avg is 1765.49


[6895.52, 6299.76]
[6895.52, 6299.76]
dead_sum is 13195.280000
dead_avg is 6597.640000


[3626.61, 5100.095]
[3626.61, 5100.095]
sem_sum is 8726.705000
sem_avg is 4363.352500


[6762.415, 6823.44]
[6762.415, 6823.44]
pree_sum is 13585.855000
pree_avg is 6792.927500
>>> Processing mmio_latency test...Test memory region: 7fe00000 on Device: 01:00.0, Test duration: 300s
MMIO-Latency test finish, max:14698 ns, avg:4871 ns, min:4186 ns
>>> Processing Caterpillar test...
>>> Caterpillar Command: /opt/benchmarking/caterpillar/caterpillar -c 1 -n 10000 -i 50000 -s 200

Cache Allocation Technology (CAT)erpillar benchmark v1.1

The benchmark will execute an operation function 50000 times.
Samples are taken every 10000 test cycles.
A total of 200 samples will be measured.
Thread affinity will be set to core_id: 1

Timings are in CPU Core cycles

SampleMin:       Minimum execution time during the display update interval
SampleMax:       Maximum execution time during the display update interval
SmplJitter:      Jitter in the execution time during the display update interval
SessionMin:      Minimum execution time since the program started or statistics were reset
SessionMax:      Maximum execution time since the program started or statistics were reset
SessionJitter:   Jitter in the execution since the program started or statistics were reset
Sample:          Sample number

Priming cache...

  SampleMin  SampleMax   SmplJitter  SessionMin SessionMax SessionJitter  Sample
    152506     156402        557       152506     156402        557          0
    152429     156426        551       152429     156426        554          1
    152180     156335        561       152180     156426        556          2
    152486     156420        553       152180     156426        556          3
    152278     156600        554       152180     156600        555          4
    152750     156294        547       152180     156600        554          5
    152580     156199        588       152180     156600        559          6
    ...
>>> Caterpillar test finish, Max session jitter: 584 CPU Cycles
>>> Processing Jitter test...
>>> Jitter Command: /opt/benchmarking/jitter/jitter -c 1 -r 20000 -l 80000 -i 200
Linux Jitter testing program version 1.9
Iterations=200
The pragram will execute a dummy function 80000 times
Display is updated every 20000 displayUpdate intervals
Thread affinity will be set to core_id:1
Timings are in CPU Core cycles
Inst_Min:    Minimum Excution time during the display update interval(default is ~1 second)
Inst_Max:    Maximum Excution time during the display update interval(default is ~1 second)
Inst_jitter: Jitter in the Excution time during rhe display update interval. This is the value of interest
last_Exec:   The Excution time of last iteration just before the display update
Abs_Min:     Absolute Minimum Excution time since the program started or statistics were reset
Abs_Max:     Absolute Maximum Excution time since the program started or statistics were reset
tmp:         Cumulative value calcualted by the dummy function
Interval:    Time interval between the display updates in Core Cycles
Sample No:   Sample number

  Inst_Min   Inst_Max   Inst_jitter last_Exec  Abs_min    Abs_max      tmp       Interval     Sample No
    158807     158939        132     158809     158807     158939    3158835200 3179339706          1        132
    158807     158944        137     158852     158807     158944    2370306048 3179421895          2        137
    158807     158938        131     158860     158807     158944    1581776896 3179361092          3        137
    158807     158940        133     158840     158807     158944     793247744 3179379386          4        137
    158807     158944        137     158843     158807     158944       4718592 3179371249          5        137
    ...
>>> Jitter test finish, Max inst jitter: 12772 CPU Cycles
>>> Processing LMbench test...
>>> LMbench Command: taskset -c 1 /usr/bin/lat_mem_rd -P 1 128 512
"stride=512
0.00049 1.590
0.00098 1.590
0.00195 1.590
0.00293 1.590
0.00391 1.590
0.00586 1.590
0.00781 1.590
...
>>> LMbench test finish, 1M memory read latency: 13.655 ns
Real-time performance test finished.

To start the benchmark, run the following commands:

$ sudo /opt/benchmarking/rtpm/rtpm_exec -p "./output" -n "report.csv" -a

The results are logged in: ./output/rtpm_test.log

RTPM Command Line Parameters

Parameter

Explanation

-p or --logpath

Specify the path of the test file

-n or --logname

Specify the test report name in CSV format (must end with .csv)

-l or --latency

Execute Latency or Cyclictest test when running performance test

-r or --rhealstone

Execute Rhealstone test when running performance test

-ml or --msilatency

Execute MSI-latency test when running performance test

-mj or --msijitter

Execute MSI-jitter test when running performance test

-mo or --mmiolatency

Execute MMIO-Latency test when running performance test

-cp or --caterpillar

Execute Caterpillar test when running performance test.

-j or --jitter

Execute Jitter test when running performance test.

-lm or --lmbench

Execute LMbench test when running performance test.

-s or --stress

Enable stress when running performance test

-a or --all

Execute all performance tests except Latency & Cyclictest, the program will help to identify current Real-Time framework, if it is Xenomai, will run Latency otherwise if it is Preempt-RT, it will run Cyclictest. If not specified, settings in configuration file will be used.

-h or --help

Show the help list

For more information on using Intel® ECI with RTPM, refer to the guide.

Real-Time Compute Performance (RTCP) Benchmarks

Benchmark

Units

Version

Source

Description

Nanoseconds

1.0

Intel® created

The Real-Time Compute Performance (RTCP) benchmark measures the latency of round-trip network packets generated and processed by a simulated control cycle Applications. It utilizes Data Plane Development Kit (DPDK) to accelerate network packet processing.

Ethernet TSN Intel Reference Benchmark

Benchmark

Units

Version

Source

Description

microseconds

0.9.9

IoTG TSN Ref SW

Tool to check Ethernet endpoints ingress and egress Traffic-class QoS under IEEE 802.1Q-2018 Enhancements for Scheduled Traffic (EST) polices with various Intel® Ethernet Controller TSN hw-offloading capabilities

CODESYS Benchmarking Applications

Benchmark

Units

Version

Source

Description

microseconds

2.0

Intel® created

The CODESYS Benchmark is an example CODESYS* Web-UI, OPC UA and SoftPLC logic application that allows remote-user access to cyclic control of compute and IO tasks.

microseconds

2.0

Intel® created

The CODESYS OPC UA Client Benchmark utilizes the CODESYS* SoftPLC to instantiate an OPC UA Client. Many parameters of the application are modifiable such as workload type, workload iterations, noise generation, OPC UA publish interval, and OPC UA monitored item selection. Cyclic task execution times are measured from which minimum, maximum, and jitter measurements are derived. These measurements allow performance characterization of the CODESYS* SoftPLC OPC UA Client implementation.

microseconds

2.0

Intel® created

The CODESYS ST-Fragment is an example application that allows configurable and observable CODESYS* SoftPLC logic regression testing.

6-axis EtherCAT Benchmark

Benchmark

Units

Version

Source

6-axis EtherCAT benchmark

microseconds

0.1.0

Intel® created

About 6-axis EtherCAT Benchmark

The benchmark uses the IgH EtherCAT Master Stack and PLCopen Motion Control library (RTmotion) to drive a real-world 6-axis EtherCAT test bench (6 EtherCAT Servos, 8 EtherCAT IO) and measures the jitter and motion execution time of the control workload in each real-time cycle (1ms). The goal of this benchmark is to evaluate ECI real-time performance when driving EtherCAT devices with different non-real-time workloads.

Using different non-real-time noises, the benchmark is implemented and tested in three configurations to simulate real-world usage scenarios:

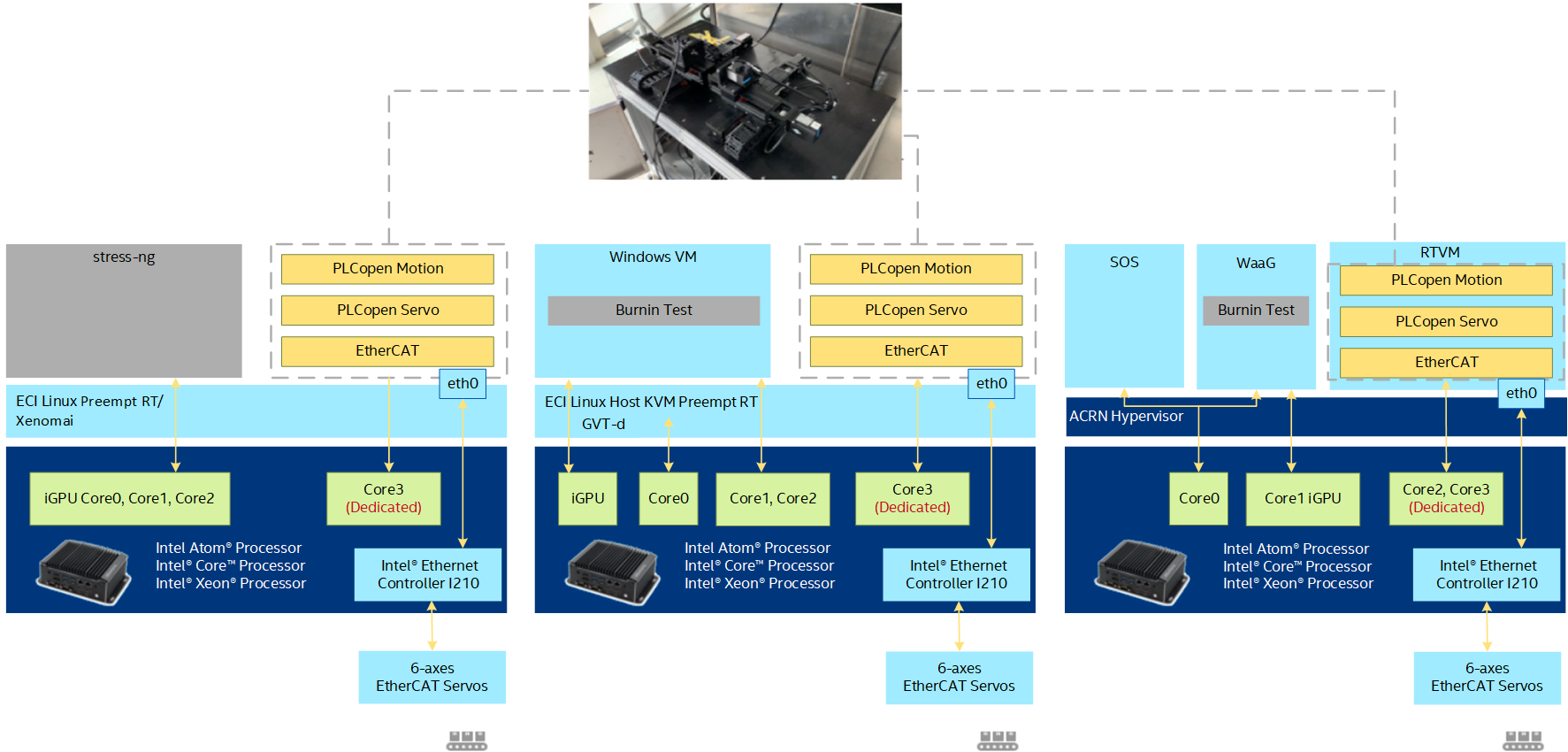

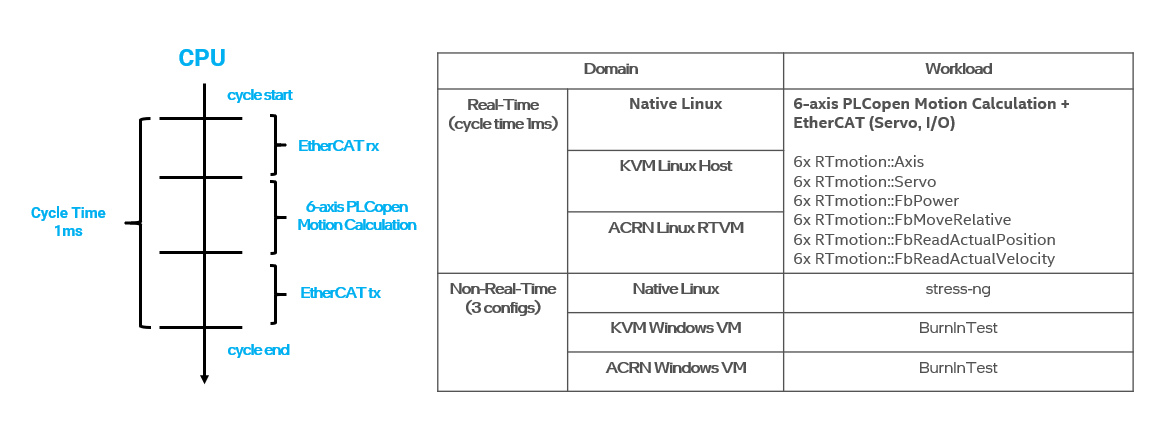

../../_images/ethercat_and_rtmotion.png ../../_images/ethercat_and_rtmotion_table.png

Install 6-axis EtherCAT Benchmark

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-softplc-plcopen
Install from individual Deb package
# For non-Xenomai kernels
$ sudo apt install plcopen-servo

# For Xenomai kernels
$ sudo apt install plcopen-servo-xenomai

Execute 6-axis EtherCAT Benchmark

To start the benchmark, run the following command:

# For running in 1ms cycle time
$ sudo /opt/plcopen/six_rtmotion_demo -n /opt/plcopen/inovance_six_1ms.xml -i 1000

# For running in 250us cycle time
$ sudo /opt/plcopen/six_rtmotion_demo -n /opt/plcopen/inovance_six_250us.xml -i 250

Interpret 6-axis EtherCAT Benchmark Results

Using /opt/plcopen/EtherCAT_6xInov_ENI.xml
MOTION_ENTRY: Requesting master index 0:...
MOTION_ENTRY: Creating domain...
MOTION_ENTRY: Register servo driver...
Activating master...
Axis #0 powered on, axis_pos_ = -36.065203
Axis #1 powered on, axis_pos_ = 50.606118
Axis #2 powered on, axis_pos_ = 129.662308
Axis #3 powered on, axis_pos_ = 141.972963
Axis #4 powered on, axis_pos_ = -61.609828
Axis #5 powered on, axis_pos_ = -61.655695
^C******************************************************
jitter time          2.220...     2.689...     9.867
motion time          0.000...     7.347...    51.513
******************************************************
End of Program

Press crtl+c to stop the real-time PLC program. The jitter time shows the [minimum, average, maximum] values of real-time cycle jitter. The motion time shows the [minimum, average, maximum] execution time of 6-axis PLCopen motion calculation.

Robotic 6-axis Motion Control Benchmark

Benchmark

Units

Version

Source

Robotic 6-axis Motion Control Benchmark

microseconds

0.1.0

Intel® created

About Robotic 6-axis Motion Control Benchmark

The benchmark uses the PLCopen Motion Control library (RTmotion) and ROS2 MoveIt2 to generate online trajectories for an industrial robotic arm in simulation and measures the jitter and motion execution time of the control workload in each real-time cycle. The goal of this benchmark is to evaluate ECI real-time performance when running ROS2 non-real-time workloads (Path Planning, 3D Visualization, DDS communication). The trajectory of the robotic arm is generated by ROS2 MoveIt2 and contains waypoints, each of which contains the joint [position, velocity, acceleration] targets and a timestamp. The real-time program received the trajectory from MoveIt 2 through the shared memory, and uses PLCopen function blocks to interpolates path between waypoints with 1ms cycle time and interprets each waypoint into servo motor commands.

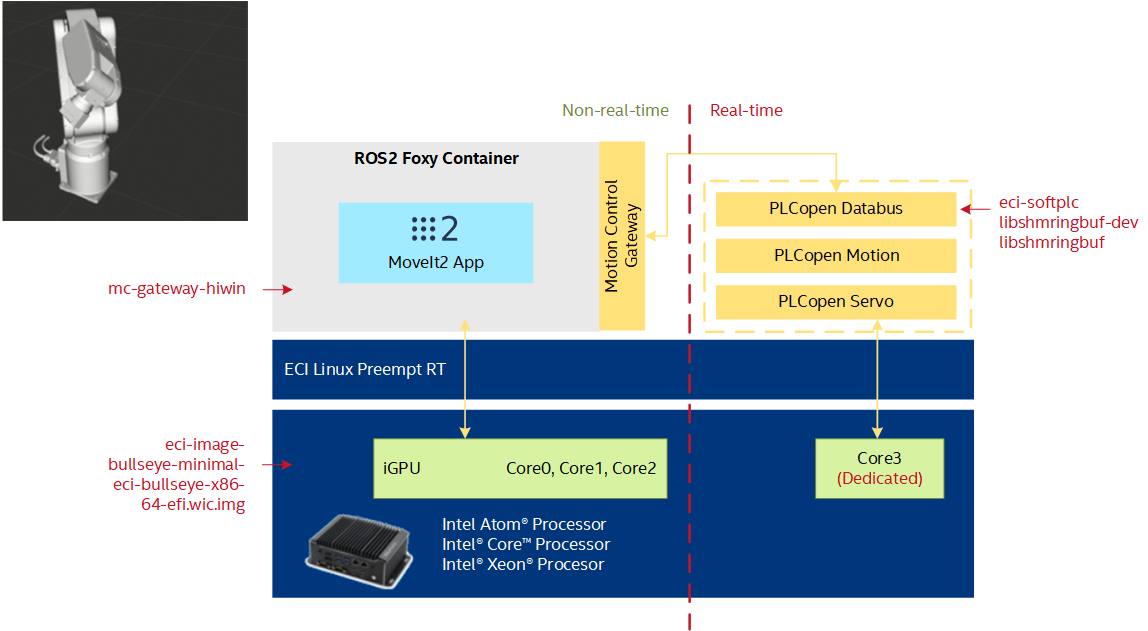

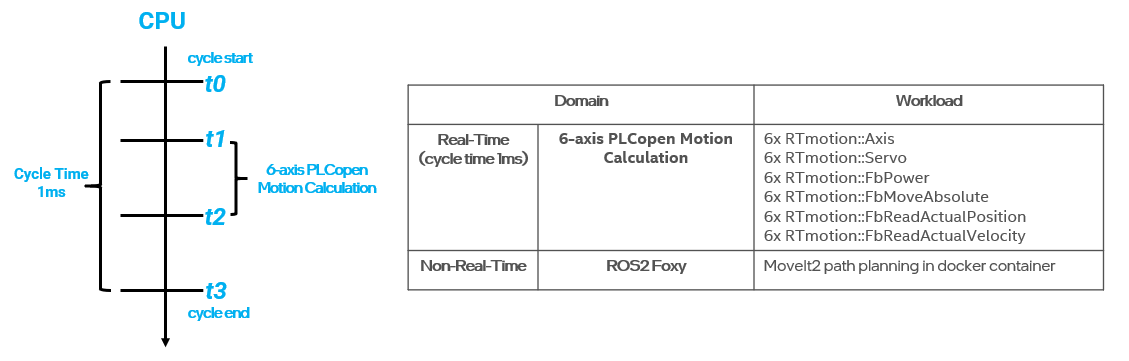

../../_images/rtmotion_and_ros2.png ../../_images/rtmotion_and_ros2_table.png

Install Robotic 6-axis Motion Control Benchmark

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

Install from meta-package
$ sudo apt install eci-softplc-plcopen eci-robotics eci-realtime
Install from individual Deb package
# For non-Xenomai kernels
$ sudo apt install plcopen-databus libshmringbuf-dev libshmringbuf mc-gateway-hiwin

# For Xenomai kernels
$ sudo apt install plcopen-databus-xenomai libshmringbuf-dev libshmringbuf mc-gateway-hiwin

Execute Robotic 6-axis Motion Control Benchmark

To start the benchmark, follow the instructions in Launch HIWIN 6-axis Robotic Arm ROS2 tutorial.

Interpret Robotic 6-axis Motion Control Benchmark

Axis 0 initialized.
Axis 1 initialized.
Axis 2 initialized.
Axis 3 initialized.
Axis 4 initialized.
Axis 5 initialized.
Function blocks initialized.
Axis #0 powered on, axis_pos_ = 0.000000
Axis #1 powered on, axis_pos_ = 0.000000
Axis #2 powered on, axis_pos_ = 0.000000
Axis #3 powered on, axis_pos_ = 0.000000
Axis #4 powered on, axis_pos_ = 0.000000
Axis #5 powered on, axis_pos_ = 0.000000
^Ccount: 68s
******************************************************
jitter time          4.924...     7.446...    24.842
motion time          0.895...     2.822...    55.255
******************************************************
End of Program

Press crtl+c to stop the real-time PLC program. The jitter time shows the [minimum, average, maximum] values of real-time cycle jitter. The motion time shows the [minimum, average, maximum] execution time of 6-axis PLCopen motion calculation.

ROS2 DDS/RSTP Benchmark

Benchmark

Units

Version

Source

ROS2 DDS/RSTP Benchmark

microseconds

v1.1.0 (with eci patches)

https://gitlab.com/ApexAI/performance_test

About DDS/RSTP Benchmark

The benchmark uses the Robot Operating System Software to evaluate real-time performance of publisher and subscriber DDS/RSTP ROS2 nodes.

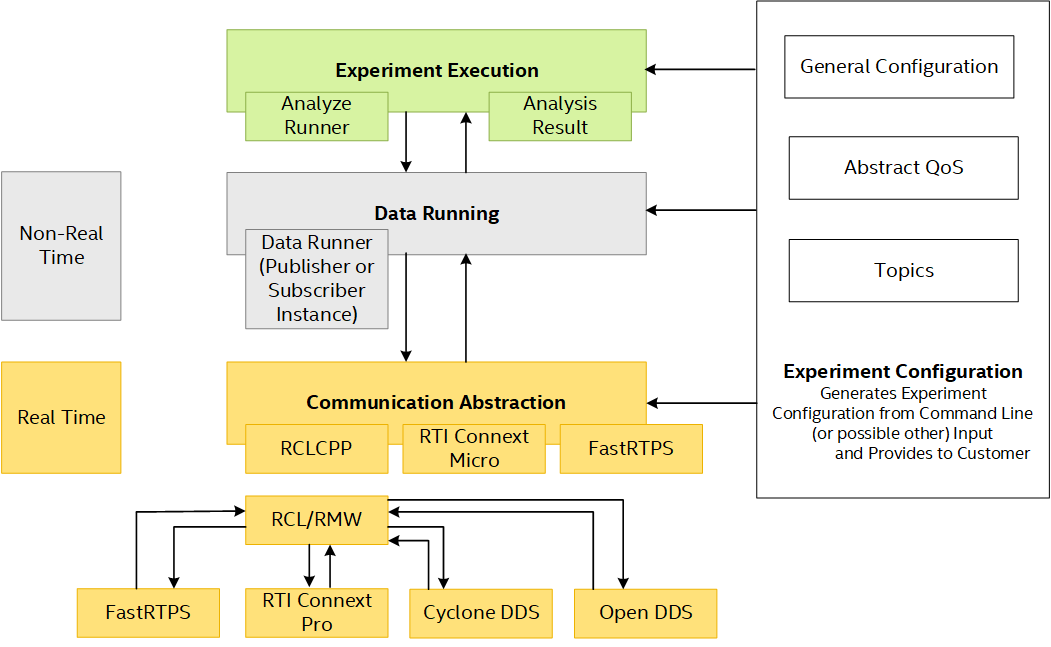

The performance_test tool available at gitlab.com/ApexAI tests latency and other performance metrics of various middleware implementations that support a pub/sub pattern. It is used to simulate non-functional performance of your application.

../../_images/perf_test_tool_arch.png

Intel® ECI DDS/RTSP performance_test tool has been patched to add :

  • New benchmarking KPIs for Industrial Use

    • Printed the summary benchmarking results to the console output after testing is done. This allows you to quickly and easily know the performance result. This is beneficial when the target image does not enable graphics features, thus there is no chance to open the benchmarking files (for instance, PDF files).

    • Printed the worst cases that are unfit for performance requirements (mainly for DDS communication latency). Comparing with the mean value of max-latency, industrial scenarios care more about the worst cases of max-latency.

  • Optimization for Real-Time

    • Created DDS profile to enable synchronous DDS communication mode and set up memory allocation policy.

    • Enable CPU core affinity for ROS or DDS nodes.

    • Set higher priority for ROS or DDS nodes.

  • Optimization Results

    To demonstrate the optimization status, consider the following test scenario:

    • Message size of 1KB.

    • The message is published with the frequency of 2000Hz, sending a message out every 0.5ms.

    • CPU runs under a test load of 50%.

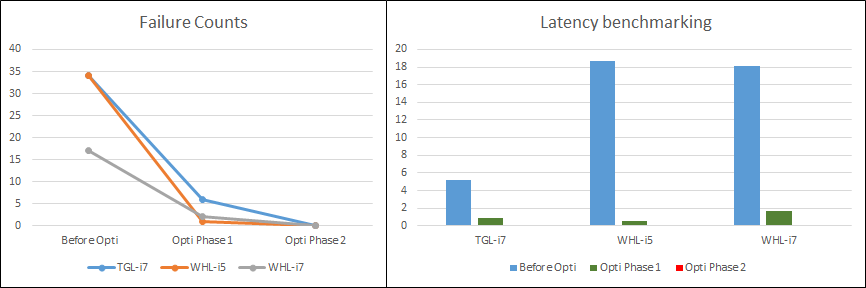

    ROS2 performance was tested on three different hardware platforms, and the following figure compares the performance with and without Intel® optimization.

    ../../_images/perf_opti.png

    The Failure Counts graph records the number of the message pub/sub cycles that have a latency greater 0.5ms. (In this case, latency is greater than 0.5ms, which means that one or more messages was not received and was not available for further handling).

Install DDS/RSTP Benchmark

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

  1. Install ROS2 Core, if not already completed.

  2. Install DDS/RTSP performance_test tool ROS2 Deb package

    $ sudo apt install ros-humble-performance-test

  3. Setup the Robotic node.

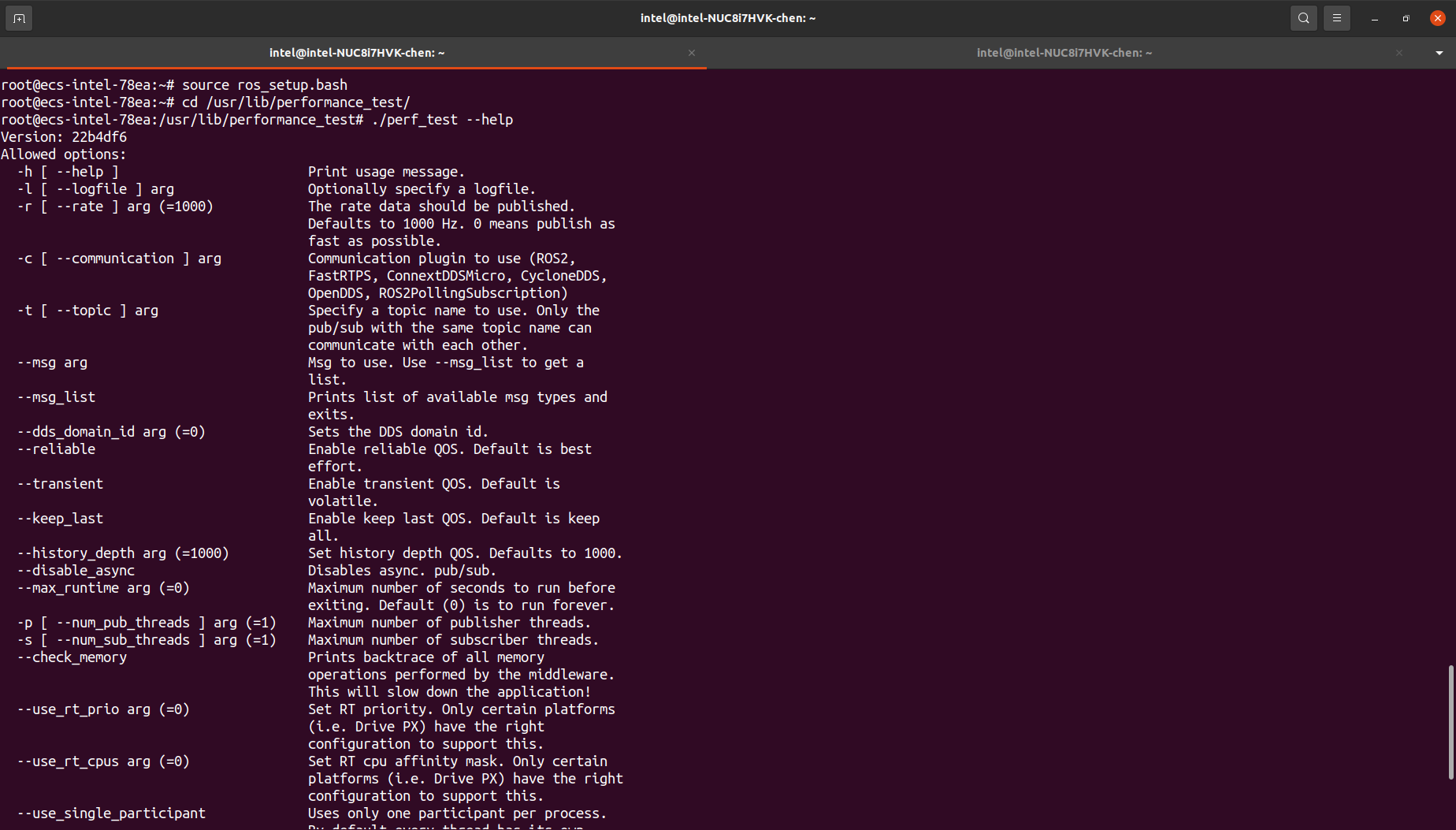

  4. Verify that DDS/RSTP benchmark installed correctly:

    $ ros2 run performance_test perf_test --help
    ../../_images/perf_test_tool_help.png


Launch DDS/RSTP Benchmark

To start the benchmark, run the following command:

  1. Open a terminal with elevated permissions:

    $ sudo -i

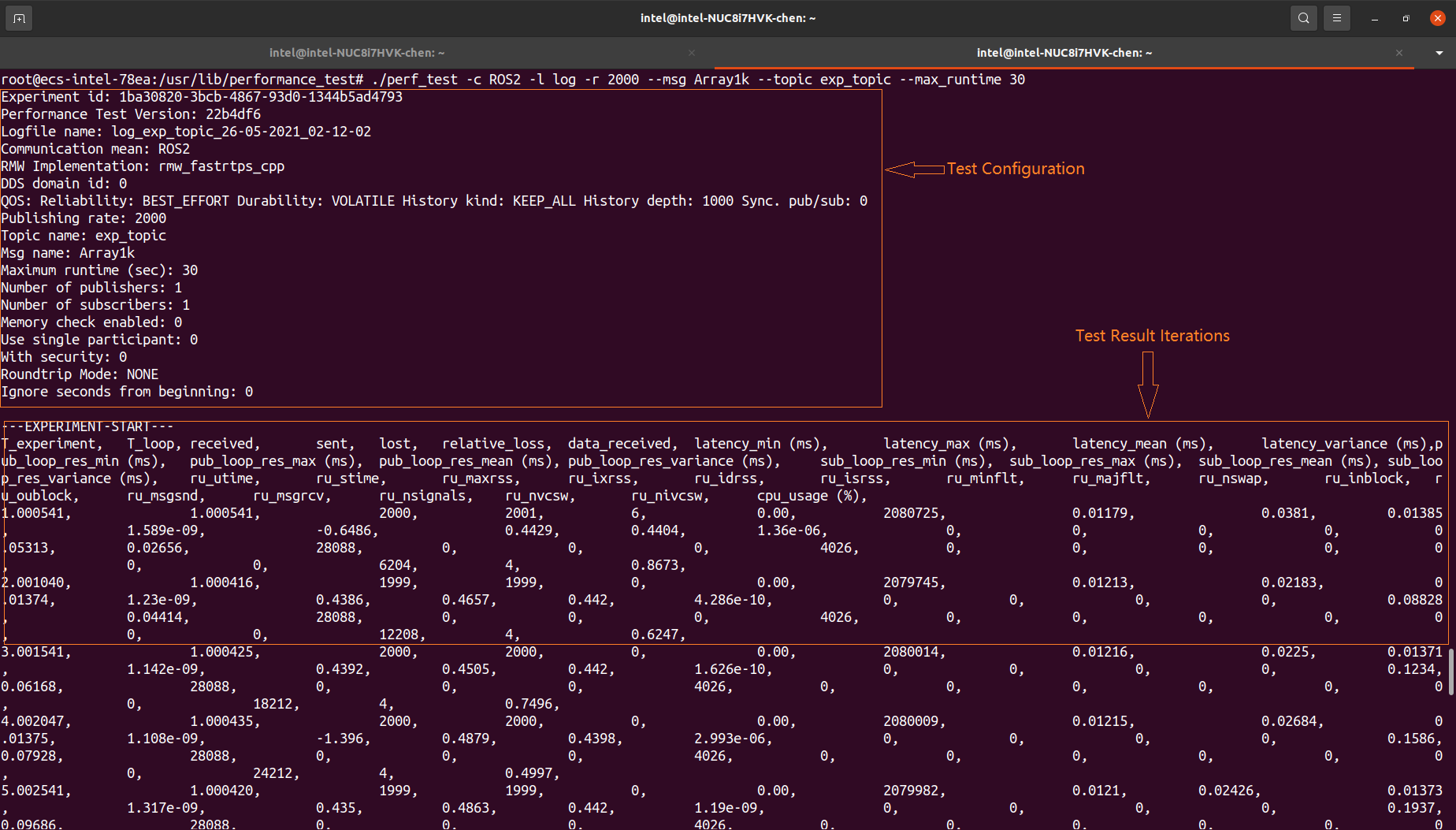

  2. In the terminal, setup the ROS2 environment and run the ROS2 performance test based on the default DDS (eProsima FastDDS) pub/sub execution:

    $ source /opt/ros/humble/setup.bash
$ ros2 run performance_test perf_test -o csv -c rclcpp-waitset -l log_waitset_Array1k_10s.csv -r 20 --msg Array1k --topic topic_1k_1 --history KEEP_LAST --use-rt-prio 49 --history-depth 10 --max-runtime 10
    ../../_images/perf_test_tool_run1.png

Interpret DDS/RSTP Benchmark results

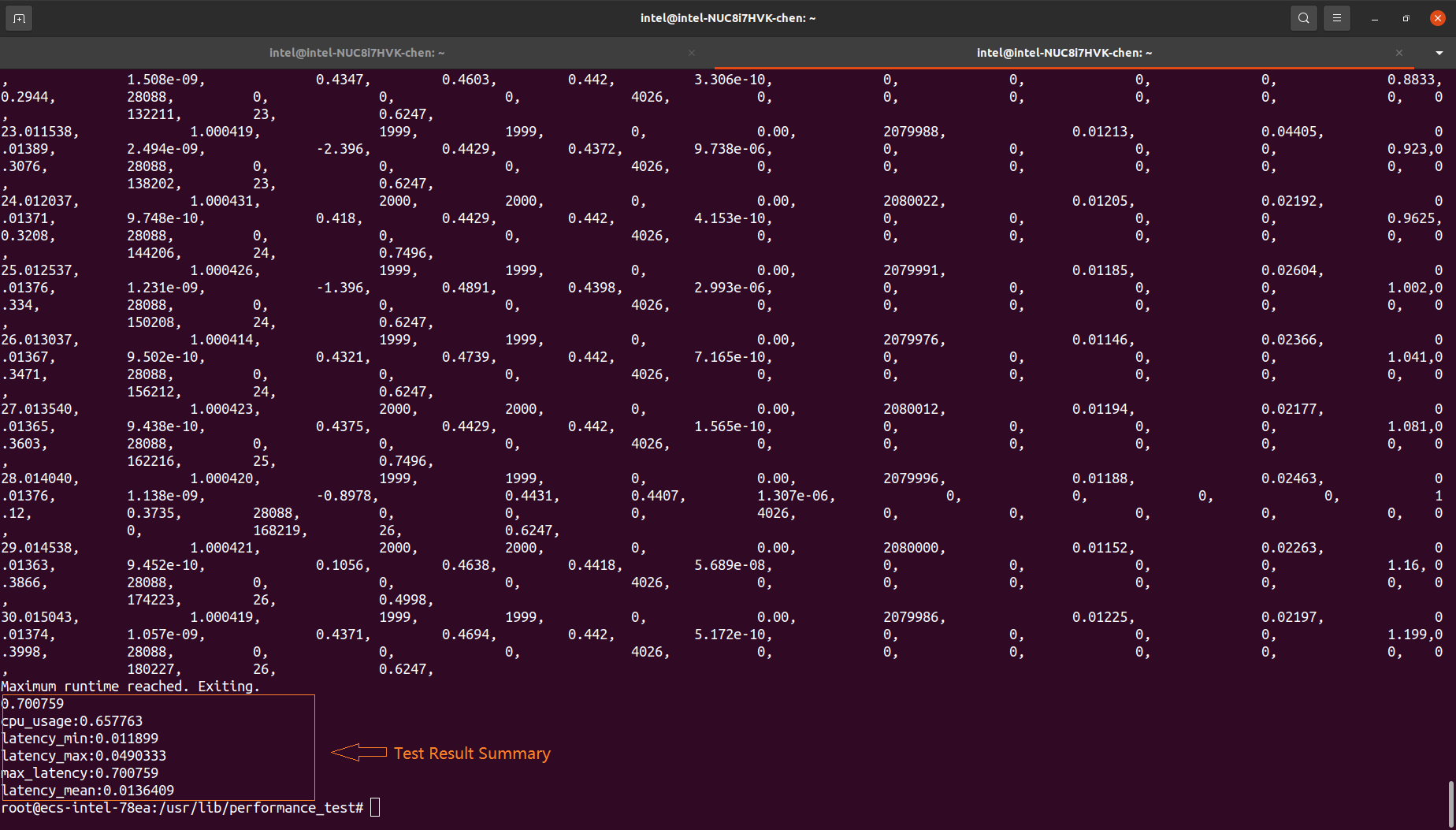

The performance_test tool allows you to quickly set up a pub/sub configuration, for example, number of publisher/subscribers, message size, QoS settings, and middleware.

The following metrics are automatically recorded when the application is running:

Latency:

Corresponds to the time a message takes to travel from a publisher to subscriber. The latency is measured by timestamping the sample when it is published and subtracting the timestamp (from the sample) from the measured time when the sample arrives at the subscriber.

CPU usage:

Percentage of the total system-wide CPU usage.

Resident memory:

Heap allocations, shared memory segments, stack (used for system’s internal work).

Sample statistics:

Number of samples received, sent, and lost per experiment run.

../../_images/perf_test_tool_run2.png

FLANN Intel oneAPI DPC++ Benchmark

Benchmark

Units

Version

Source

FLANN Data Parallel C++ Benchmark

milliseconds

v1.9.1 (with eci oneapi patches)

Intel® created

About FLANN Intel oneAPI DPC++ Benchmark

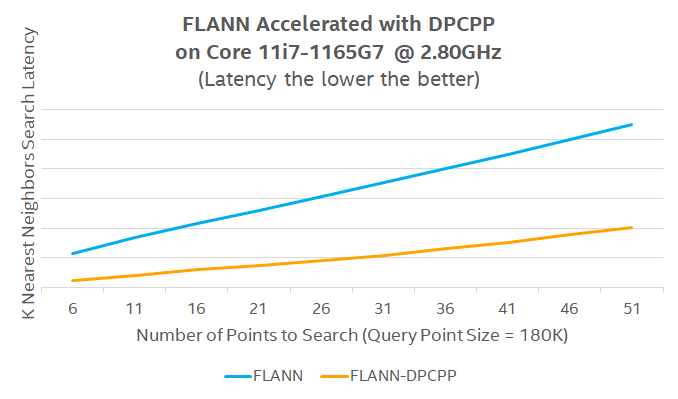

FLANN is a 3-D processing library used to search for nearest neighbors in three-dimensional or even higher dimensional space. FLANN builds indices to the input points and provides interfaces to search for the nearest K (number of) or nearest R (radius) neighbors.

The oneAPI DPC++ Compatibility Tool (DPCT) is used to migrate the CUDA implementation into Data Parallel C++ (DPC++) for building and searching the k-dimensional tree. Additionally, some CUDA thrust functions need manual migration. The dimension and size of index space, nd_range of SYCL are adapted according to the hardware device capability of the maximum work-group size. Unified Shared Memory (USM) is used to avoid additional memory copy.

../../_images/flann_performance.png

Install FLANN Intel oneAPI DPC++ Benchmark

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

  1. Enable Intel® oneAPI DPC++ and OpenMP Compute Runtimes to use acceleration on Intel® Graphics.

  2. Install FLANN DPC++ Test suite:

    $ sudo apt install flann-dpcpp-test

Launch FLANN Intel oneAPI DPC++ Benchmark

To start the benchmark, run the following commands:

  1. Run the FLANN Test suite on Intel® GPU via Level-Zero API:

    $ cd /opt/intel/flann/dpcpp/tests
$ export SYCL_CACHE_PERSISTENT=1
$ export ONEAPI_DEVICE_SELECTOR=level_zero:gpu
$ ./flanntest_dp  ../data/data_.txt | tee /tmp/flann_test_gpu.log

  2. Run the FLANN Test suite on Intel® CPU:

    $ cd /opt/intel/flann/dpcpp/tests
$ export ONEAPI_DEVICE_SELECTOR=opencl:cpu
$ ./flanntest_dp  ../data/data_.txt | tee /tmp/flann_test_cpu.log

Interpret FLANN Intel® oneAPI DPC++ Benchmark results

FLANN benchmark logs computing latency in milliseconds, for various k and radius values, between Intel® oneAPI DPC++ level0 GPU and plain CPU execution.

Click to view the benchmark results

[----------] 1 test from oneapi_flann_knn_performance_test
[ RUN      ] oneapi_flann_knn_performance_test.Positive
data size is 198273
data size is 191380
====kdtree dpcpp index=======================
create kdtree dpcpp: 98.935 ms
k=2 search kdtree: 50.914 ms
k=7 search kdtree: 62.323 ms
k=12 search kdtree: 97.775 ms
k=17 search kdtree: 167.936 ms
k=22 search kdtree: 232.559 ms
k=27 search kdtree: 284.624 ms
k=32 search kdtree: 330.846 ms
k=37 search kdtree: 388.697 ms
k=42 search kdtree: 447.857 ms
k=47 search kdtree: 508.655 ms
k=52 search kdtree: 568.344 ms
k=57 search kdtree: 627.265 ms
k=62 search kdtree: 716.911 ms
k=67 search kdtree: 743.552 ms
k=72 search kdtree: 829.595 ms
====kdtree single index=======================
create kdtree: 242.245 ms
k=2 search kdtree: 470.504 ms
k=7 search kdtree: 1094.13 ms
k=12 search kdtree: 2334.15 ms
k=17 search kdtree: 3226.63 ms
k=22 search kdtree: 3746.74 ms
k=27 search kdtree: 4113.68 ms
k=32 search kdtree: 4478.92 ms
k=37 search kdtree: 5092.62 ms
k=42 search kdtree: 5856.41 ms
k=47 search kdtree: 6405.64 ms
k=52 search kdtree: 6937.99 ms
k=57 search kdtree: 7455.19 ms
k=62 search kdtree: 8054.9 ms
k=67 search kdtree: 8631.63 ms
k=72 search kdtree: 13356.7 ms
[       OK ] oneapi_flann_knn_performance_test.Positive (89874 ms)
[----------] 1 test from oneapi_flann_knn_performance_test (89874 ms total)
[----------] 1 test from oneapi_flann_radius_performance_test
[ RUN      ] oneapi_flann_radius_performance_test.Positive
data size is 198273
data size is 198273
====kdtree dpcpp index=======================
create kdtree dpcpp: 95.827 ms
radius=0.01 search kdtree: 27.789 ms
radius=0.06 search kdtree: 21.541 ms
radius=0.11 search kdtree: 27.399 ms
radius=0.16 search kdtree: 27.926 ms
radius=0.21 search kdtree: 31.558 ms
radius=0.26 search kdtree: 33.077 ms
radius=0.31 search kdtree: 34.523 ms
radius=0.36 search kdtree: 34.366 ms
radius=0.41 search kdtree: 43.423 ms
radius=0.46 search kdtree: 45.014 ms
radius=0.51 search kdtree: 63.377 ms
radius=0.56 search kdtree: 67.082 ms
radius=0.61 search kdtree: 68.667 ms
radius=0.66 search kdtree: 71.914 ms
radius=0.71 search kdtree: 69.622 ms
====kdtree single index=======================
create kdtree: 337.145 ms
radius=0.01 search kdtree: 451.055 ms
radius=0.06 search kdtree: 451.089 ms
radius=0.11 search kdtree: 607.748 ms
radius=0.16 search kdtree: 625.998 ms
radius=0.21 search kdtree: 705.211 ms
radius=0.26 search kdtree: 730.814 ms
radius=0.31 search kdtree: 726.285 ms
radius=0.36 search kdtree: 745.114 ms
radius=0.41 search kdtree: 868.959 ms
radius=0.46 search kdtree: 908.484 ms
radius=0.51 search kdtree: 1079.77 ms
radius=0.56 search kdtree: 1119.06 ms
radius=0.61 search kdtree: 1127.51 ms
radius=0.66 search kdtree: 1127.1 ms
radius=0.71 search kdtree: 1137.84 ms
[       OK ] oneapi_flann_radius_performance_test.Positive (16587 ms)
[----------] 1 test from oneapi_flann_radius_performance_test (16587 ms total)
[----------] Global test environment tear-down
[==========] 4 tests from 4 test suites ran. (124442 ms total)
[  PASSED  ] 4 tests.

PCL Intel oneAPI DPC++ Benchmark

Benchmark

Units

Version

Source

PCL Data Parallel C++ Benchmark

milliseconds

v1.12.1 (with eci oneapi patches)

Intel® created

About PCL Intel oneAPI DPC++ Benchmark

Point-Cloud Library (PCL) contains common algorithms for 3-D point cloud processing.

For the PCL module with CUDA code, DPCT is used to migrate the CUDA code to DPC++ implementation. For the PCL module without CUDA code, Intel® VTune Profiler is used to identify the performance bottlenecks and OMP is used to enable multi-processing via compiler directives.

../../_images/pcl_performance.png

Install PCL Intel oneAPI DPC++ Benchmark

You can install this component from the ECI repository. Setup the ECI repository, then perform either of the following commands to install this component:

logo_debian logo_ubuntu

  1. Enable Intel® oneAPI DPC++ and OpenMP Compute Runtimes to use acceleration on Intel® Graphics.

  2. Install PCL OneAPI Test suite:

    $ sudo apt install pcl-oneapi-test

Launch PCL Intel oneAPI DPC++ Benchmark

To start the benchmark, run the following commands:

  1. Check that all PCL algorithms run successfully on Intel® GPU via Level-Zero API:

    $ cd /opt/intel/pcl/oneapi/tests
$ export SYCL_CACHE_PERSISTENT=1
$ export ONEAPI_DEVICE_SELECTOR=level_zero:gpu
$ find . -name "*test_*" -not -name "*_performance" -not -name "*_perf" -not -name "*greedy*" -exec {} \; | tee /tmp/pcl_functional_test_gpu.log

    Important

    Consider the known limitations of Intel® Gen9.x Graphics Level0 API call will fail due to data-size hardware offload limits with the following PCL tests:

    • PCL_OneAPI_Octree.OneAPI_Octree_approxNearestSearch

    • PCL_OneAPI_Octree.OneAPI_Octree_Radius_Search_Function

    • PCL_OctreeOneAPI.OneAPI_Octree_KNNSearch

    • PCL_ONEAPI_MLS.test_radius_configuration

    • PCL.SampleConsensusInitialAlignment_DPCPP_CPU

    It is recommended to ignore those sub-tests with Intel® Gen9.x Graphics hardware:

    $ find . -name "*test_*" -not -name "*_performance" -not -name "*_perf" -not -name "*outlier*" -not -name "*greedy*" -not -name "*octree*" -not -name "*mls*" -not -name "*scia*" -exec {} \; | tee /tmp/pcl_functional_test_gpu.log

  2. Check that all PCL algorithms run successfully on Intel® CPU:

    $ cd /opt/intel/pcl/oneapi/tests
$ export SYCL_CACHE_PERSISTENT=1
$ export ONEAPI_DEVICE_SELECTOR=opencl:cpu
$ find . -name "*test_*" -not -name "*_performance" -not -name "*_perf" -not -name "*greedy*" -exec {} \; | tee /tmp/pcl_functional_test_gpu.log

  3. Run individual performances of each oneAPI optimized PCL algorithms alternatively on Intel® GPU via level0 API and Intel® CPU:

    $ cd /opt/intel/pcl/oneapi
$ export ONEAPI_DEVICE_SELECTOR=level_zero:gpu

    OR

    $ cd /opt/intel/pcl/oneapi
$ export ONEAPI_DEVICE_SELECTOR=opencl:cpu

    Tests for various algorithms are grouped by tabs below. Select a tab to view test instructions for that algorithm:

    Compute latency for Registration algorithms:

    $ ./tests/test_oneapi_registration_perf ./data/test_P.pcd ./data/test_Q.pcd

Interpret PCL Intel oneAPI DPC++ Benchmark results

Each PCL benchmarks logs computing latency in milliseconds between Intel® oneAPI DPC++ level0 GPU versus plain CPU execution.

Click to view the benchmark results on KdTree PCL

./tests/test_oneapi_kdtree_perf ./data/test_P.pcd ./data/test_Q.pcd
[==========] Running 7 tests from 1 test suite.
[----------] Global test environment set-up.
[----------] 7 tests from PCL
[ RUN      ] PCL.KdTreeFLANN_radiusSearch
OneAPI time for kdtree radius search 33.1814 milliseconds
CPU time for kdtree radius search 269.944 milliseconds
[       OK ] PCL.KdTreeFLANN_radiusSearch (131366 ms)
[ RUN      ] PCL.KdTreeFLANN_fixedRadiusSearch_native_buffer
OneAPI time for kdtree radius search 27.1908 milliseconds
CPU time for kdtree radius search 267.957 milliseconds
[       OK ] PCL.KdTreeFLANN_fixedRadiusSearch_native_buffer (1535 ms)
[ RUN      ] PCL.KdTreeFLANN_fixedRadiusSearch_std_vector
OneAPI time for kdtree radius search 37.5182 milliseconds
CPU time for kdtree radius search 267.964 milliseconds
[       OK ] PCL.KdTreeFLANN_fixedRadiusSearch_std_vector (1569 ms)
[ RUN      ] PCL.KdTreeFLANN_fixedRadiusSearchUnSort
OneAPI time for kdtree radius search 5.135 milliseconds
CPU time for kdtree radius search 129.396 milliseconds
[       OK ] PCL.KdTreeFLANN_fixedRadiusSearchUnSort (687 ms)
[ RUN      ] PCL.KdTreeFLANN_knnSearch
OneAPI time for kdtree k-nearest neighbor search 1.922 milliseconds
CPU time for kdtree k-nearest neighbor search 35.3504 milliseconds
[       OK ] PCL.KdTreeFLANN_knnSearch (211 ms)
[ RUN      ] PCL.KdTreeFLANN_knnSearch_native_buffer_2d
OneAPI time for kdtree k-nearest neighbor search 2.103 milliseconds
CPU time for kdtree k-nearest neighbor search 35.225 milliseconds
[       OK ] PCL.KdTreeFLANN_knnSearch_native_buffer_2d (207 ms)
[ RUN      ] PCL.KdTreeFLANN_knnSearch_native_buffer_1d
OneAPI time for kdtree k-nearest neighbor search 1.9728 milliseconds
CPU time for kdtree k-nearest neighbor search 35.8558 milliseconds
[       OK ] PCL.KdTreeFLANN_knnSearch_native_buffer_1d (210 ms)
[----------] 7 tests from PCL (135785 ms total)
[----------] Global test environment tear-down
[==========] 7 tests from 1 test suite ran. (135785 ms total)
[  PASSED  ] 7 tests.

Performance Sanity Check Testing

For step-by-step instructions on using the various benchmarks, refer to Performance Sanity Check Testing.
