Building ECI¶

ECI Build Engine¶

The ECI build engine generates a number of bootable images for virtual and real targets. The engine may also be used to build real applications on top.

ECI will use either poky or Isar depending on the selected ECI target. At the core of these build engines are image generators that assemble OpenEmbedded binaries, Debian binaries, individual packages built from source, or all.

ECI Source Code¶

The ECI source code is in the release archive: eci-release/targets/resources. This directory is organized by meta-layer. Each meta-layer contains recipes that correspond to various components included in ECI images. Within the recipe directory are files with the following file extensions:

ISAR Recipes

*.deb - Component redistributable Debian package
*.tar.gz - Component source code

Poky Recipes

*.tar.gz - Component pre-compiled binaries
*.src.tar.gz - Component source code

Building ECI Targets¶

ECI provides a number of targets that can be built. Most targets share the same core features, but differ in key technologies such as hypervisor virtualization, kernel version, development tool-chain, and graphical windowing system.

The following table lists the ECI targets available for build:

Alias	Description	Target	Distribution	Kernel version
ECI-B	Linux PREEMPT_RT Base essential image	base-poky	Yocto Poky 3.1 Preempt-rt (Dunfell)	v5.4.115-rt57
ECI-B	Linux PREEMPT_RT Base essential image	preempt-buster	Debian 10 Linux Preempt-rt (Isar)	v5.4.115-rt57
ECI-X	Linux Xenomai Cobalt/I-pipe essential image	xenomai-poky	Yocto Poky 3.1 Xenomai (Dunfell)	v5.4.115-ipipe
ECI-X	Linux Xenomai Cobalt/I-pipe essential image	xenomai-buster	Debian 10 Linux Xenomai (Isar)	v5.4.115-ipipe
ECI-R	Linux PREEMPT_RT and Xenomai Real-Time Systems Hypervisor (RTH) Multi-OS Consolidated System	rts-buster	Virtual Debian 10 Desktop (Isar)	v5.4.115
			Privileged Debian 10 Preempt-rt (Isar)	v5.4.115-rt57
			Privileged Debian 10 Xenomai (Isar)	v5.4.115-ipipe
		rts-poky	Privileged Yocto Poky Preempt-rt (Dunfell)	v5.4.115-rt57
		rts-poky	Privileged Yocto Poky 3.1 Xenomai (Dunfell)	v5.4.115-ipipe
ECI-A	Linux ACRN Hypervisor	acrn-sos	Yocto Poky 3.1 ACRN custom (Dunfell)	v5.4.115
ECI-A	Linux ACRN Hypervisor	acrn-zephyr-ehl	Yocto Poky 3.1 Preempt-rt + ACRN (Dunfell)	v5.4.115-rt57

The following figure shows the feature options available to each ECI target. Features listed under Build Config Files Features are always enabled, while Build Menu Features can be enabled/disabled during the image build process.

Note

You can select these feature options if the custom use-case build option is selected.

Use Case Build Options¶

ECI provides pre-configured use cases, which automate the selection of feature options and enable quick solutions without requiring in-depth knowledge. These pre-configured use cases are designed to fulfill the needs of specific applications, such as robotics or discrete automation.

Important

Complete the pre-requisite section Setting up ECI Build before continuing this section.

Open a terminal to the eci-release directory. In Ubuntu, you can right-click the empty space in the directory explorer and select “Open in Terminal”.
At the terminal prompt, run the provided setup script without any parameters:
```
$ ./setup.sh
```

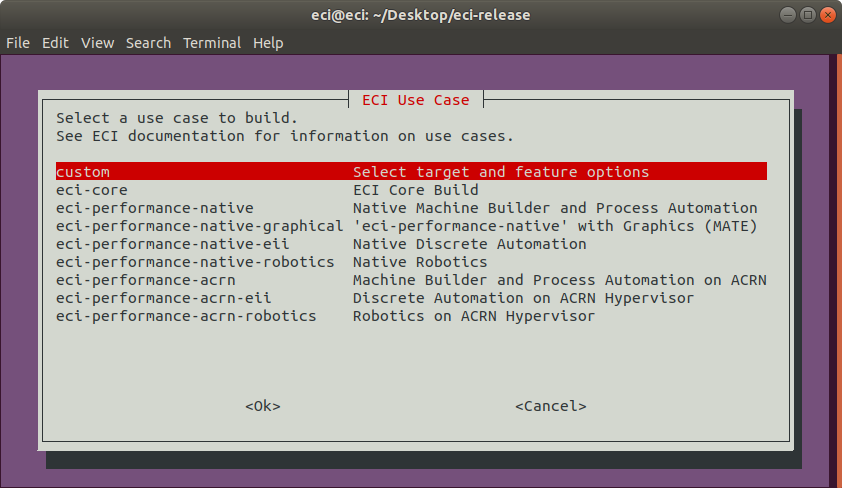

A menu prompt will appear with use case options. Select a use case option to build. Refer to the following table for the description of each use case.

The following table describes the various use case options available:

Use-Case	ECI Target	Feature Options	Description
custom	User selected	User selected	Provides ability to select any target with custom combination of feature options. See section Custom Target Build Options.
eci-core	preempt-buster	• SDK (build tools and dev pkgs) • SSH-Server • Intel® Time Coordinated Computing	Builds an image with a minimum set of features
eci-performance-native	preempt-buster	• All `eci-core` feature options • EC Protocol Bridge • CODESYS Software PLC • KVM (incl. libvirt & virsh) • Intel® Castle Lake Dependencies • Intel® In-Band Manageability	Builds an image with development, infrastructure, and communication features.
eci-performance-native-graphical	preempt-buster	• All `eci-core` feature options • Desktop Environment MATE • EC Protocol Bridge • CODESYS Software PLC • KVM (incl. libvirt & virsh) • Intel® Castle Lake Dependencies • Intel® In-Band Manageability	Builds a graphical desktop (MATE) image with development, infrastructure, and communication features.
eci-performance-eii	preempt-buster	• All `eci-performance-native` feature options • Intel® EII	Builds `eci-performance-native` with the addition of EII.
eci-performance-robotics	preempt-buster	• All `eci-performance-native` feature options • Robot Operating System 2 (Foxy)	Builds `eci-performance-native` with the addition of ROS.
eci-performance-acrn	acrn-sos for Vecow SPC-7100	• Embedded `eci-performance-native` image for VM use • SDK (build tools and dev pkgs) • Intel® Secure Device Onboarding • Intel® Castle Lake Dependencies • Intel® Time Coordinated Computing	Builds an image with the ACRN hypervisor, development, and infrastructure features.
eci-performance-acrn-eii	acrn-sos for Vecow SPC-7100	• All `eci-performance-acrn` feature options • Embedded `eci-performance-eii` image for VM use	Builds `eci-performance-acrn` with the addition of an embedded `eci-performance-eii` image for VM use.
eci-performance-acrn-robotics	acrn-sos for Vecow SPC-7100	• All `eci-performance-acrn` feature options • Embedded `eci-performance-robotics` image with for VM use	Builds `eci-performance-acrn` with the addition of an embedded `eci-performance-robotics` image for VM use.

After building an ECI image, see section Installing ECI Images for information on installing the ECI image.

Custom Target Build Options¶

Important

Complete the pre-requisite section Setting up ECI Build before continuing this section.

Open a terminal to the eci-release directory. In Ubuntu, you can right-click the empty space in the directory explorer and select “Open in Terminal”.
At the terminal prompt, run the provided setup script without any parameters:
```
$ ./setup.sh
```
A menu prompt will appear with use case options. Select the custom option.

After selecting the custom use case option, a menu will prompt to select an ECI target. Select an ECI target to build. Refer to the following table for links to build instructions for each ECI target.

Click a target link below for instructions on building.

ECI Target	Description
base-poky preempt-buster	Instructions for building `base-poky` and `preempt-buster` target images. ECI-B provides the base essential ECI features.
xenomai-buster xenomai-poky	Instructions for building `xenomai-poky` and `xenomai-buster` target images. ECI-X provides the essential ECI features combined with the Xenomai kernel patches.
acrn-sos acrn-zephyr-ehl	Instructions for building `acrn-sos` and `acrn-zephyr-ehl` target images. ECI-A provides `acrn-sos` as a minimal image (without most ECI features) combined with the open-source ACRN type-1 hypervisor. `acrn-zephyr-ehl` combines `zephyr` and `base-poky` as prelaunch Virtual Machines (VM) on open-source ACRN type-1 hypervisor.
rts-buster rts-poky	Instructions for building Debian GNU/Linux `rts-buster` and legacy `rts-poky` target images. ECI-R provides the essential ECI features combined with the commerical RTS type-1 hypervisor.

After building an ECI image, see section Installing ECI Images for information on installing the ECI image.
