This section provides the steps to build an ECI base-poky (ECI-B) image.

Prerequisite

Make sure that you complete the steps in Setting up ECI Build before proceeding to build an ECI base-poky image.

Building ECI ``base-poky`` Image

The ECI base-poky Yocto target image provides the minimal set of software utilities to realize a real-time capable OS without a hypervisor. Do the following to build the image:

1. Run the setup script:

   $ ./setup.sh




2. A list of pre-configured use cases will be displayed. Select custom to start configuring a custom build.

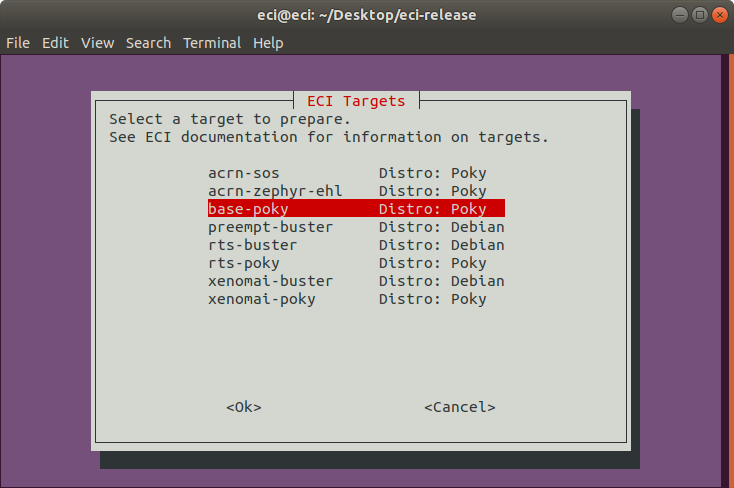

3. A list of available build targets will be displayed. Select base-poky from the list.

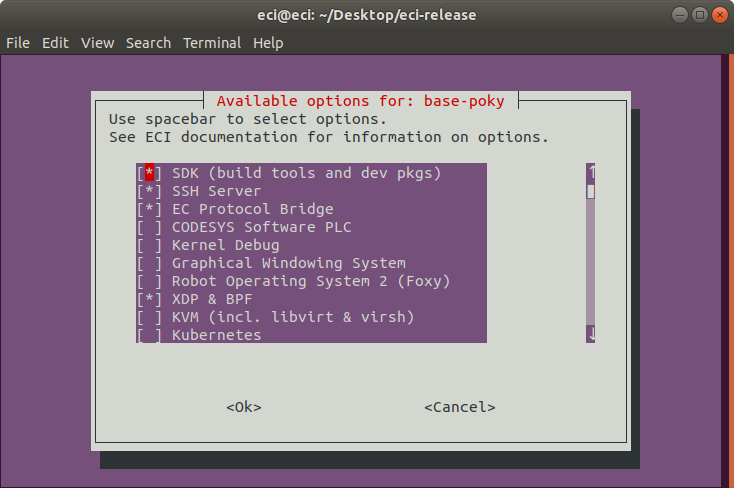

4. A list of features available for base-poky will be displayed. Select or deselect the features that you want to include in the image. Use the arrow keys to scroll through the list of options and use the spacebar to toggle the state. Press enter to finalize the selection.



   The following table lists the available options:

   Feature Option	Description
   SDK (build tools and dev pkgs)	Adds GCC and Make to the target image.
   SSH Server	Adds an SSH server to the target image.
   EC Protocol Bridge	Edge Control Protocol Bridge bridges various industrial protocols together, effectively providing a translation from one protocol to another.
   CODESYS Software PLC	CODESYS Software PLC provides a Linux runtime that allows control applications to execute on Linux-based systems. This feature requires a CODESYS .deb file to be added to the build environment.
   Kernel Debug*	Enables Kernel debug capabilities on the target.
   Graphical Windowing System*	Adds XFCE - a X11 based graphical window manager to the target image.
   Robot Operating System 2 (Foxy)	Provides core essentials of ROS2 software
   XDP & BPF	Allows packets to be reflected, filtered, or redirected without traversing th networking stack. Selecting this feature will add eBPF and XDP features to the target image.
   KVM (including libvirt & virsh)	Adds KVM and virtualization tools such as libvirt and virsh to the target image.
   Kubernetes	Adds binaries required to join a Kubernetes cluster.
   Castle Lake Dependencies	Adds kernel modules and tools necessary to support a Castle Lake Client.
   Intel® In-Band Manageability	Intel® In-band Manageability enables an administrator to perform critical Device Management operations over-the-air (OTA) from the cloud. Selecting this feature will add Intel In-Band Manageability software to the target image.
   Intel® Time Coordinated Computing (Intel® TCC)	Enables Intel® Time Coordinated Computing Tools (Intel® TCC Tools) features. Note: Intel TCC Tools features are only supported on 11th Gen Intel® Core™ processors and Intel Atom® x6000E Series processors.
   Intel® Edge Insights for Industrial (Intel® EII)	Enables Intel® Edge Insights for Industrial features.
   Mender support	Adds support for Mender remote update: https://mender.io/
   Kernel source	Adds kernel source & header files to the target image.
   Time series processing	Enables Time-series processing features.
   Security Enhanced Linux (SELinux)	Adds SELinux: https://github.com/SELinuxProject/selinux Note: SELinux support is not fully complete yet! Use this feature only as a reference.
   *Experimental*	Enables experimental features.

   Important

   (*) For best real-time performance, it is recommended that you do not enable Graphical Windowing System or Kernel Debug features.

   Note

   The resulting OS will be headless (non-graphical) unless the Graphical Windowing System feature is selected.

The setup script will begin configuring the assets needed to build the target image. Depending on the feature options selected and the state of the build environment, a few notifications might be displayed:

• Build directory already exists

  If the setup script is not building the target for the first time, the script will prompt: Build directory ecs-base-<poky/deby> already exists. Do you want to clean the cached build? y/[n]



  Press n to retain the target build cache or press y to delete target build cache.

  Note

  It is recommended that you delete the target build cache if the target source was modified or the previous build was incomplete. Retaining the target build cache will reduce the build time, but might cause build errors if the target source was modified or the previous build was incomplete. If build errors occur, rerun the setup script and choose y at this prompt.

For all other notifications, click the following links:

• Build Notifications
  • CODESYS Linux runtime package not found
  • Build directory already exists
  • Detected lock files for target
  • System memory below recommended minimum

1. After setting up the build target, the script will prompt: Do you want to run an automated build? y/[n].


   Automated BuildManual Build

   To perform an automated build, press y at the prompt.



---

The build typically takes a very long time. A Linux build system with the recommended specifications might take about 1-2 hours to complete. A Linux build system with the minimum specifications might take over 6 hours to complete. Refer Linux Build System for the recommended specifications.

After the build completes, refer Installing ECI-B to create a bootable USB flash drive to install the ECI image.
