Microservice: BPF Compiler Collection (BCC)¶

The following section describes how to integrate the BPF Compiler Collection (BCC) [https://github.com/iovisor/bcc] in a container. These instructions assume an existing ECI installation and familiarity with building Docker containers.

Important

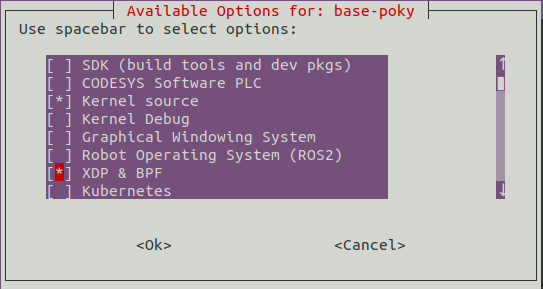

BPF Compiler Collection features must be enabled in the ECI image before BPF Compiler Collection can be used. Creating an ECI image that contains the BPF Compiler Collection features can be accomplished by selecting the XDP & BPF and Kernel source feature options during image setup. See section Building ECI for more information.

Building: BCC Container¶

The following section is applicable to:

The following steps detail how to build a Docker image which contains the BPF Compiler Collection (BCC).

If not already completed, follow section Prepare the Build System for Microservices to prepare the build system.
Open a terminal on the build system and navigate to the extracted Dockerfiles directory. The contents of this directory should be as follows:
```
$ ls
application-containers  bpf  display-containers  softplc-containers
```
Navigate to the bpf directory. The contents of this directory should be as follows:
```
$ ls
bpf-compiler-collection
```
Navigate to the bpf-compiler-collection directory. The contents of this directory should be as follows:
```
$ ls
Dockerfile  entry_point.sh
```
Build the BPF Compiler Collection (BCC) container by performing the following command:
```
$ docker build -t bcc:v1.0 .
```
Note

The “.” at the end of the command is intentional.
Save the Docker image as a tar archive by performing the following command:
```
$ docker save -o bcc.tar bcc:v1.0
```
After the save has completed successfully, there will be a tarballed Docker image:

Docker Image archive name

Description of Docker Image

tcc.tar

Docker image which contains the BPF Compiler Collection (BCC).

Executing: BCC Container¶

The following section is applicable to:

Ensure that the Docker daemon is active. Run the following command to restart the Docker daemon.

Warning

All running Docker containers will also restart.
```
$ systemctl restart docker
```
The status of the Docker daemon can be verified with the following command:
```
$ systemctl status docker
```
Copy the Docker image created earlier to the target system.
Load the copied Docker image by performing the following command:
```
$ docker load < bcc.tar
```
Check which Docker images are present on the target system with the following command:
```
$ docker images
```
The BCC image that was loaded should be present in the list. Note the name and tag of the image for use in the following steps.

For example, on our system the output is as follows:
```
$ docker images
REPOSITORY            TAG                 IMAGE ID            CREATED             SIZE
bcc                   v1.0                d5bbc885feb3        7 seconds ago       456MB
```
This container provides the BPF Compiler Collection (BCC). The kernel headers are required to build and load BPF programs into the kernel, which means the ECI image must have been built with kernel headers (Kernel source feature option enabled). Those headers must be patched and accessible from within the container, this is why /lib/modules/$(uname -r)/build is mounted. If they are missing, container instantiation will fail and the following error message will appear:
```
$ docker run -it --rm bcc:v1.0
Missing kernel headers in /lib/modules/host-build, please mount them when starting the container
```

The BCC examples are located under /bcc/examples. XDP examples in particular are located under /bcc/examples/networking/xdp/. To run the xdp_drop_count.py code from the container at startup in SKB mode on network interface eth0, the container can be started as below:

$ docker run -it --rm \
  --name bcc:v1.0 \
  --privileged \
  -v /lib/modules/$(uname -r)/build:/lib/modules/host-build:ro \
  bcc:v1.0 \
  python3 bcc/examples/networking/xdp/xdp_drop_count.py -S eth0
  Preparing kernel headers... done
  Printing drops per IP protocol-number, hit CTRL+C to stop
  0: 1 pkt/s
  0: 0 pkt/s
  0: 0 pkt/s
  58: 1 pkt/s
  0: 0 pkt/s
  17: 1 pkt/s
  58: 1 pkt/s

The real advantage offered by BCC is the ability to develop, build and run BPF programs directly on the target from a Python script, thanks to this container. In this regard, the container can be started in interactive mode on the target to experiment with BPF. To do so, just omit the command when instantiating the container:
```
$ docker run -it --rm \
  --name bcc \
  --privileged \
  --net=host \
  -v /lib/modules/$(uname -r)/build:/lib/modules/host-build:ro \
  bcc
```
From there a shell opens and gives the possibility to edit scripts and run them dynamically with Python.
