Intel® Time Coordinated Computing Tools (Intel® TCC Tools)

Attention

For this Intel® ECI release, Intel® Time Coordinated Computing (Intel® TCC) is only supported on 11th Gen Intel® Core™ and Intel Atom® x6000E Series (as developer preview) processors! Other processors will be supported in future releases. Current version of ECI supports Intel® Time Coordinated Computing Tools 2021.3.

About Intel® TCC Tools

Intel processors are multi-purpose and can serve a wide range of use cases from data analysis in the cloud, to gaming PCs and traditional office laptops, to devices at the edge. Starting with Intel Atom® x6000E Series processors (code name: Elkhart Lake (EHL)) and 11th Gen Intel® Core™ processors (code name: Tiger Lake UP3 (TGL)), Intel is introducing a new set of features called Intel® Time Coordinated Computing (Intel® TCC) to augment the compute performance of its processors with ability to address the stringent temporal requirements of real-time applications. The ongoing industry transformation drives the demand for converged solutions capable of satisfying real-time requirements while staying generally power efficient and leaving sufficient performance for other concurrent tasks. The key value of Intel TCC is performance improvements for latency-sensitive applications when they are running alongside non-time-constrained applications on the same system.

While the Intel TCC features reside in the processor, their full potential is unlocked when the whole solution stack is optimized top-to-bottom. Intel offers a reference real-time software stack that abstracts these hardware features to accelerate hardware configuration and application development.

../_images/Software_stach_image_TCC_Tools.png

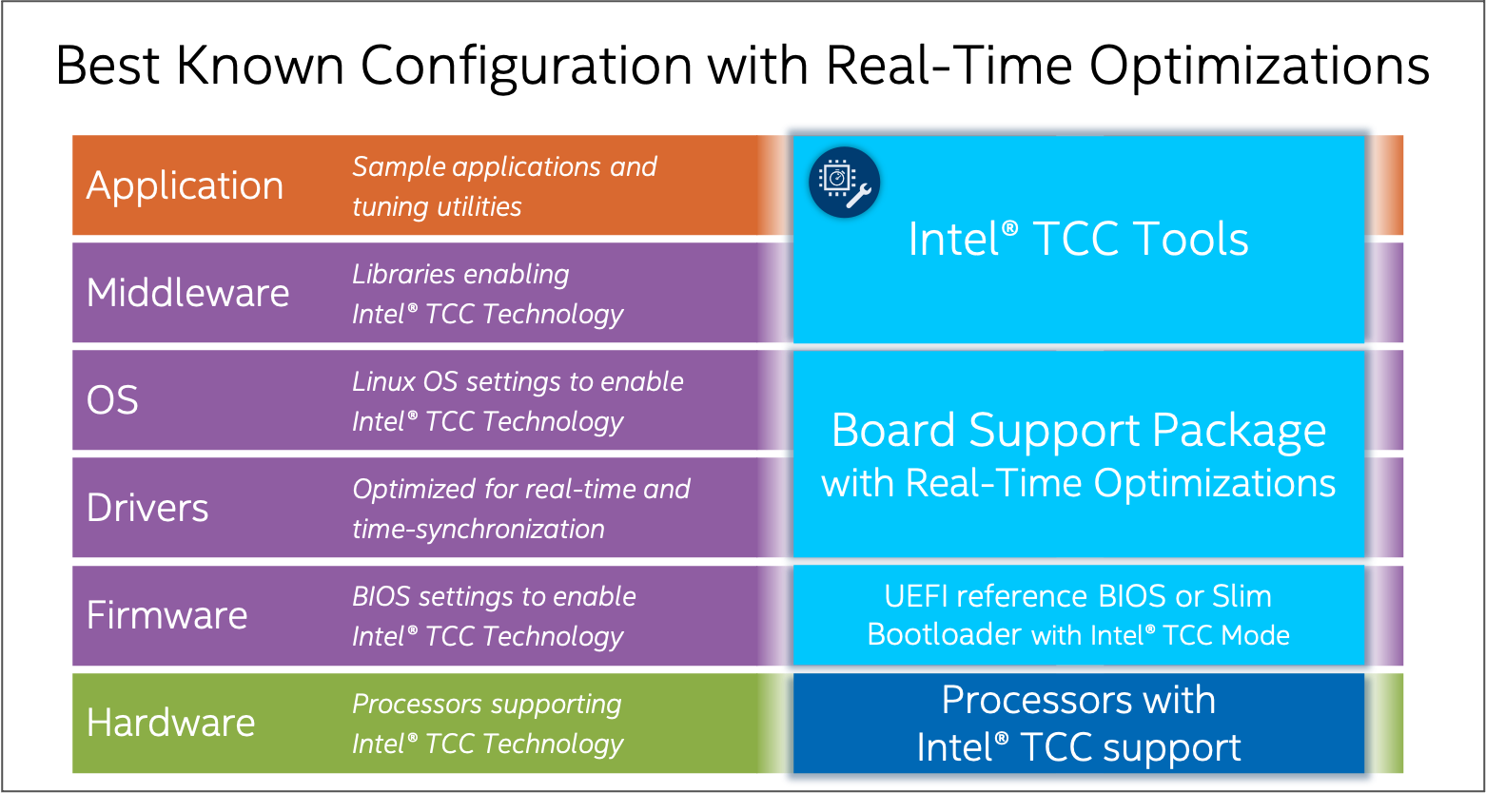

The stack consists of:

  • Real-time hardware: Intel Atom® and Intel® Core™ processors, optimized for real-time applications (list of supported processors)

  • System software:

    • Linux OS: Yocto Project*-based board support package (BSP) with real-time optimizations, also referred to as PREEMPT_RT or RT kernel

    • Linux OS: Debian Buster with real-time optimization, also referred to as PREEMPT_RT kernel.

    • ACRN Real Time Hypervisor.

    • UEFI reference BIOS with Intel TCC Mode

  • Intel TCC Tools (this product)

Why Intel TCC Tools?

System software optimizations can satisfy many real-time use cases

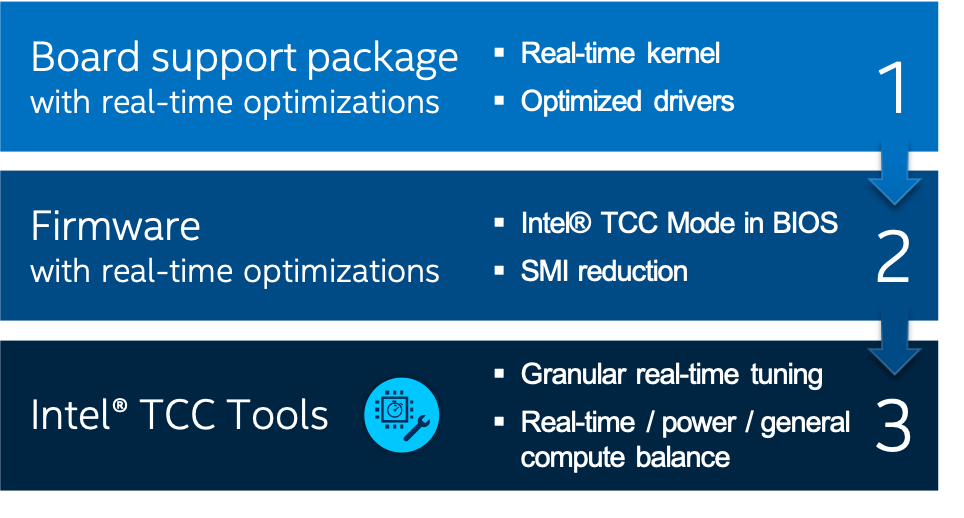

System software has the highest impact on real-time performance. The BSP and UEFI reference BIOS contain optimizations such as Linux kernel build configuration settings and boot parameters, power management settings, and Intel TCC Mode, that help drastically decrease execution latencies and reduce jitter, at times up to several orders of magnitude. System software optimizations, when used with target processors are sufficient to satisfy real-time use cases with a broad range of cycle times for the most common real-time applications.

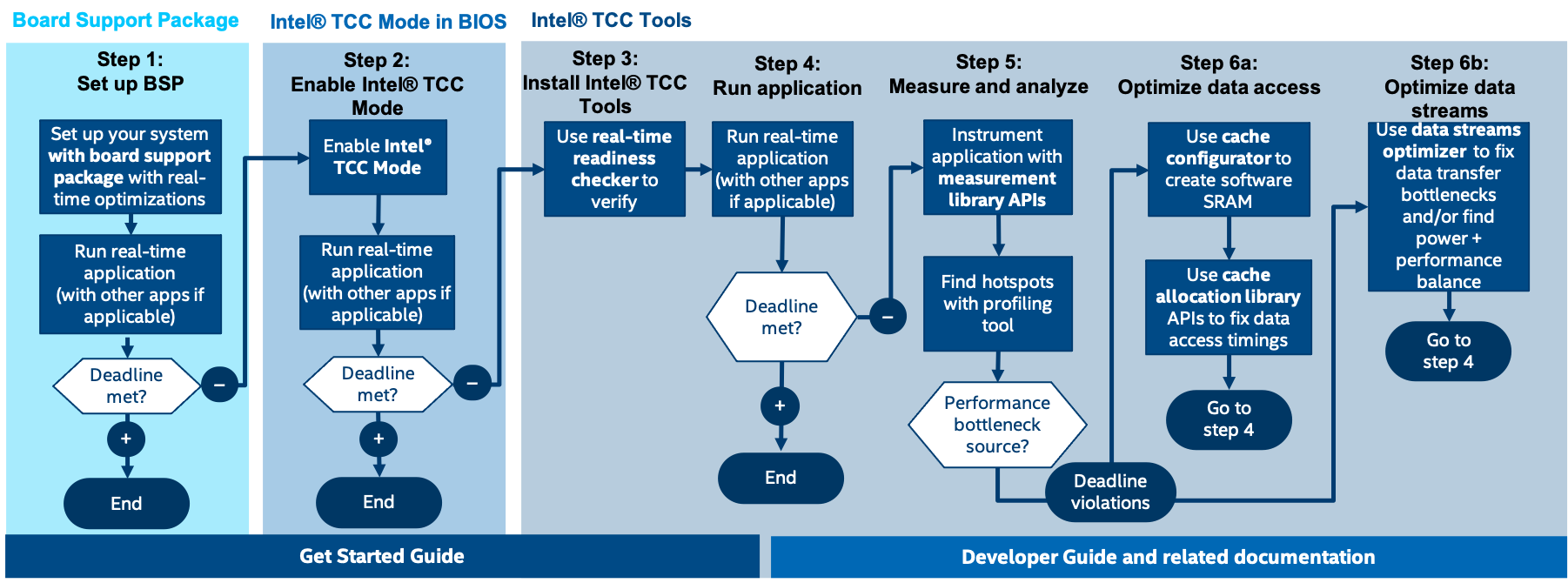

../_images/Software_Stack_RT_Improvements_V2.png ../_images/tcc_tools_flow_steps_version_5.png

System software optimizations may be all you need to meet your real-time requirements. To learn more about system software tuning, the BSP, and Intel TCC Mode in BIOS, see the Real-Time Tuning Guide 11th Generation Intel® Core, and Real-Time Tuning Guide Atom® x6000E Series for your target processor.

Intel TCC Tools allow for use case-specific optimizations

For some use cases, meeting real-time requirements is not enough. Some must be mindful of system power consumption or residual compute capabilities for data processing or graphical UI. Optimizing only system software may not be sufficient in these cases. For example, enabling Intel TCC Mode has a strong impact on system power consumption which might not be acceptable.

Optimizations to address the unique demands of some real-time applications or further decrease cycle times require more granular use of Intel TCC features and special tuning techniques, such as advanced cache management and I/O fabric tuning.

Such granular tuning, if unassisted, requires special knowledge of processor architecture including the intricacies of a particular microarchitectural generation which is unattainable and unnecessary information for the majority of developers. Intel TCC Tools facilitates these techniques by offering C application programming interfaces (APIs) and tools.

Furthermore, tuning is usually preceded by debugging and bottlenecks identification that involves measurement. Given the nature of real-time applications and their latency sensitivities, conventional measurement tools may not be precise enough and induce overhead impacting measurement results. Latency measurement offered by Intel TCC Tools is free of these limitations and offers high precision while being minimally intrusive.

For information on using and developing with Intel TCC Tools, refer to the Developer Guide

Note: If you do not have access to the Developer Guide, contact your Intel representative for assistance with accessing Intel TCC Tools.

Intel TCC Tools - Resources

Intel TCC Tools is an independent product. For help and support with Intel TCC Tools, refer to the following:

Intel TCC Tools - Prerequisites

Complete the following steps to prepare Intel TCC Tools.

  1. Verify that the target system (where ECI will be installed) contains a TCC Tools compatible BIOS. Refer to the table below for supported BIOS versions:

    Note

    If your BIOS is not compatible, contact your Intel representative for assistance.

    The Vecow Tiger Lake (Vecow TGL) system does not have a BIOS for TCC 2021.3. The BIOS being used for Vecow Tiger Lake is based on the 2021.1 BIOS referenced below. Vecow Tiger Lake BIOS is referenced from ‘TGLIFUI1.R00.3455.A02.2011240812’.

    System

    BIOS for TCC 2021.3

    EHL-CRB

    EHLSFWI1.R00.3273.A04.2107240322

    TGL-RVP

    TGLIFUI1.R00.4304.A01.2107200604

    Vecow TGL

    E5000XXU3FRT103

    System

    BIOS ACRN TGL RVP

    TGL-RVP

    TGLIFUI1.R00.4304.A01.2107200604 (Specifically requires TSN)

  2. Configure the target system BIOS according to the table below. Note: Select the tab corresponding to your target system CPU.

    Go to Intel(R) Advanced Menu > Intel(R) Time Coordinated Computing(R) on the target system and configure the BIOS as listed in the following table:

    Setting Name

    Option

    Intel(R) TCC Mode

    Enabled

    Intel(R) TCC Authentication

    Disabled

  3. Locate the Intel TCC Tools offline host system installer script in the ECI release package at the following directory:

    └── Support
    └── Time-Coordinated-Computing

    This script will be used in later steps.

  4. Familiarize yourself with the Intel TCC Tools Get Started Guide.

    Note: The TCC Tools Get Started Guide informs the user to build and install a Yocto image. Since these steps have already been completed by ECI, please skip them: Step 1: Build Yocto Project-Based Image and Step 5: Install on Target.

Intel TCC Tools - Enabling Drivers and SSRAM(With and Without ACRN)

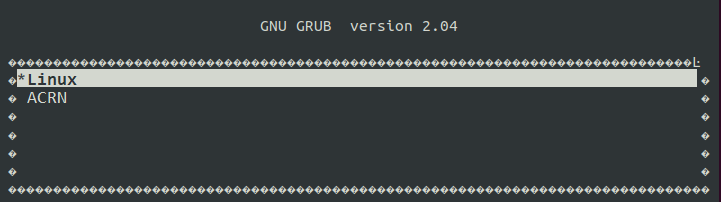

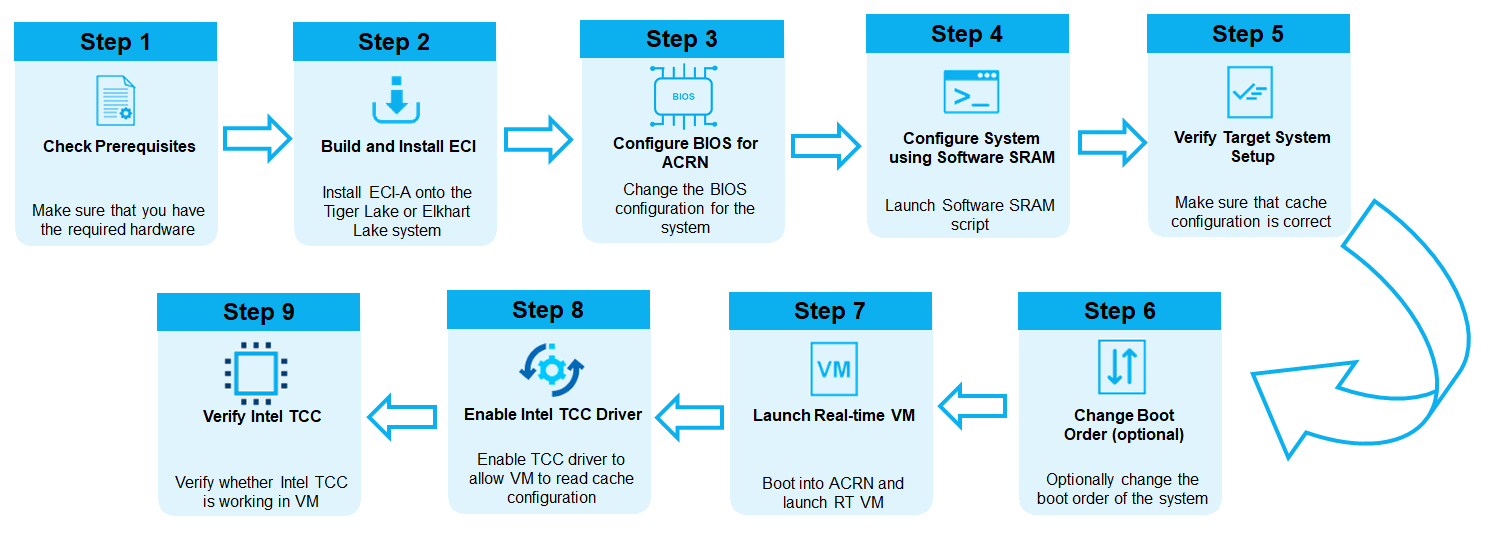

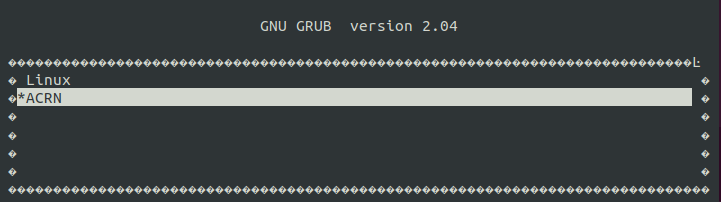

The methods to enable Intel TCC Tools vary depending on if the ACRN Hypervisor is present. If the ECI image you are using contains the ACRN Hypervisor, select the ECI with ACRN tab. Otherwise, select the ECI without ACRN tab.

After completing this section, you will have enabled the TCC Software SRAM buffer, updated the TCC cache BIOS subregion via a firmware update mechanism, and verified the system configuration.

The following section is applicable to:

../_images/target2.png

  1. Make sure that the Intel TCC Tools - Prerequisites section has been completed.

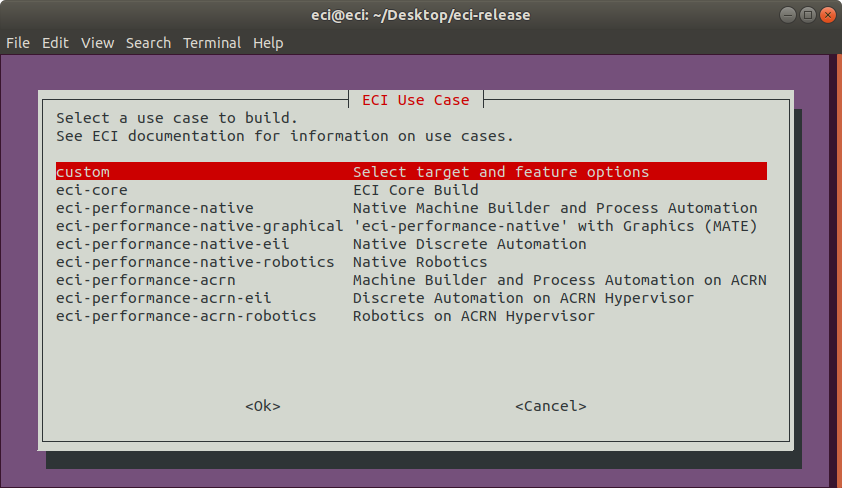

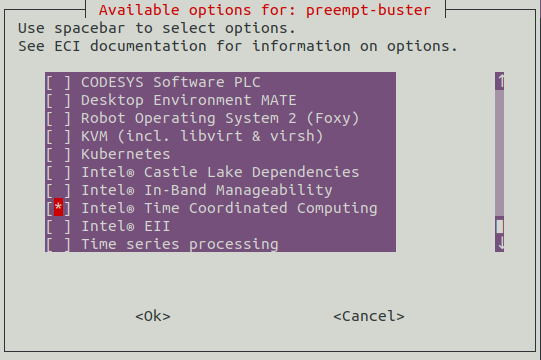

  2. Download a prebuilt ECI image, or build an ECI image with the Intel® Time Coordinated Computing feature. For more information, refer to Building ECI Targets.

    ../_images/option_tcc.png

  3. Install the ECI image to a target system. For more information, refer to Installing ECI Images.

  4. Login to the target system. On Debian-based images, reconfigure the fwupdate package and prepare the bootloader by performing the following commands:

    $ dpkg-reconfigure fwupdate
$ cp /boot/efi/EFI/BOOT/bootx64.efi /boot/efi/EFI/BOOT/grubx64.efi

  5. The following setup will activate a pre-defined configuration for the Software SRAM. This includes:

    • Enabling the TCC Driver to be auto-loaded

    • Creating BIOS capsules with the updated cache configuration, which will be deployed to the BIOS sub-regions when the system is re-booted.

    Configure the Software SRAM buffer by performing the command below. Select the tab corresponding to your target system.

    $ /usr/share/tcc_tools/scripts/setup_ssram_v1/tcc_setup_ssram.sh enable

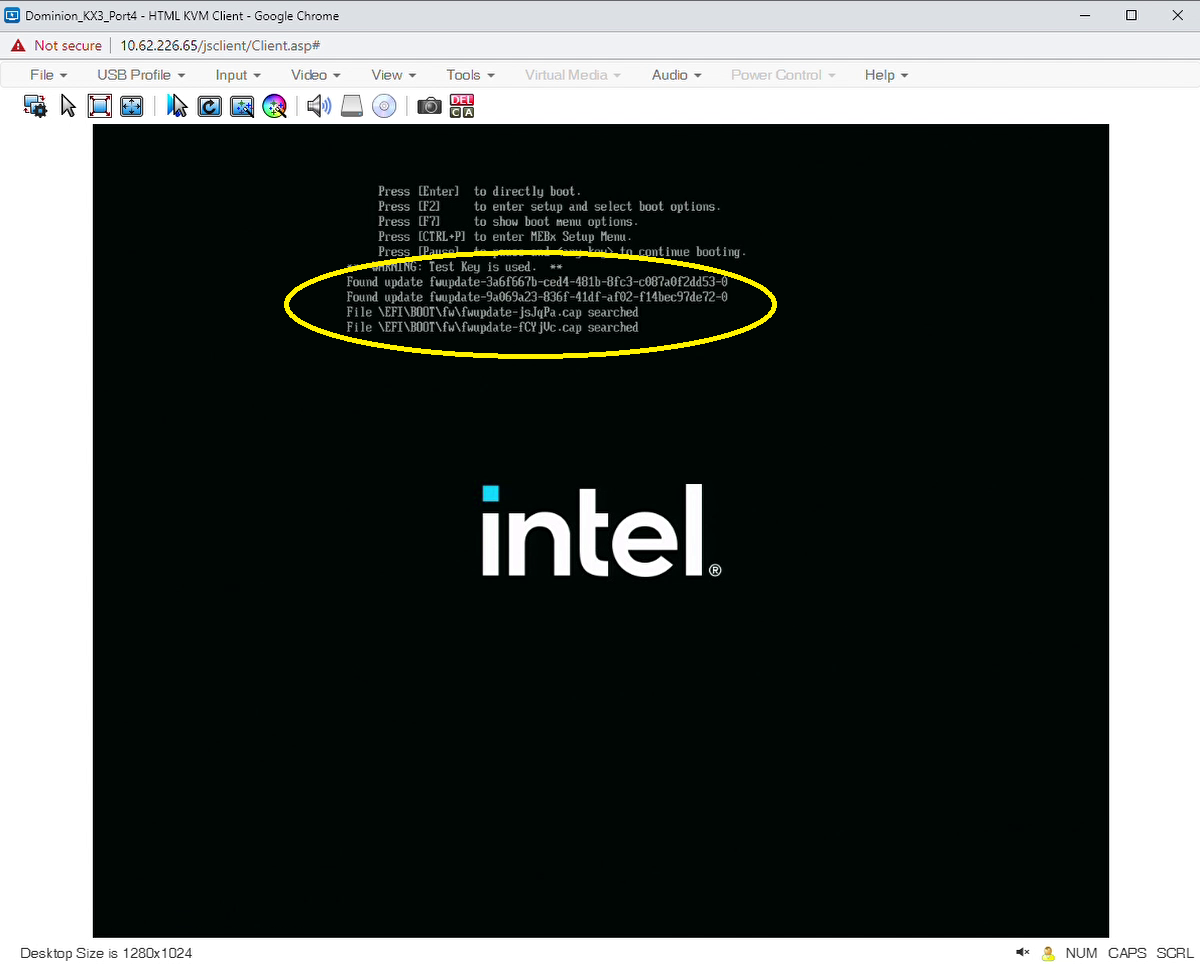

    The target system will reboot twice during the BIOS update process. Do not interrupt this process. On the first reboot, the BIOS will locate and load the capsules, as shown in the figure below:

    ../_images/figure_2_tcc_enablement.png

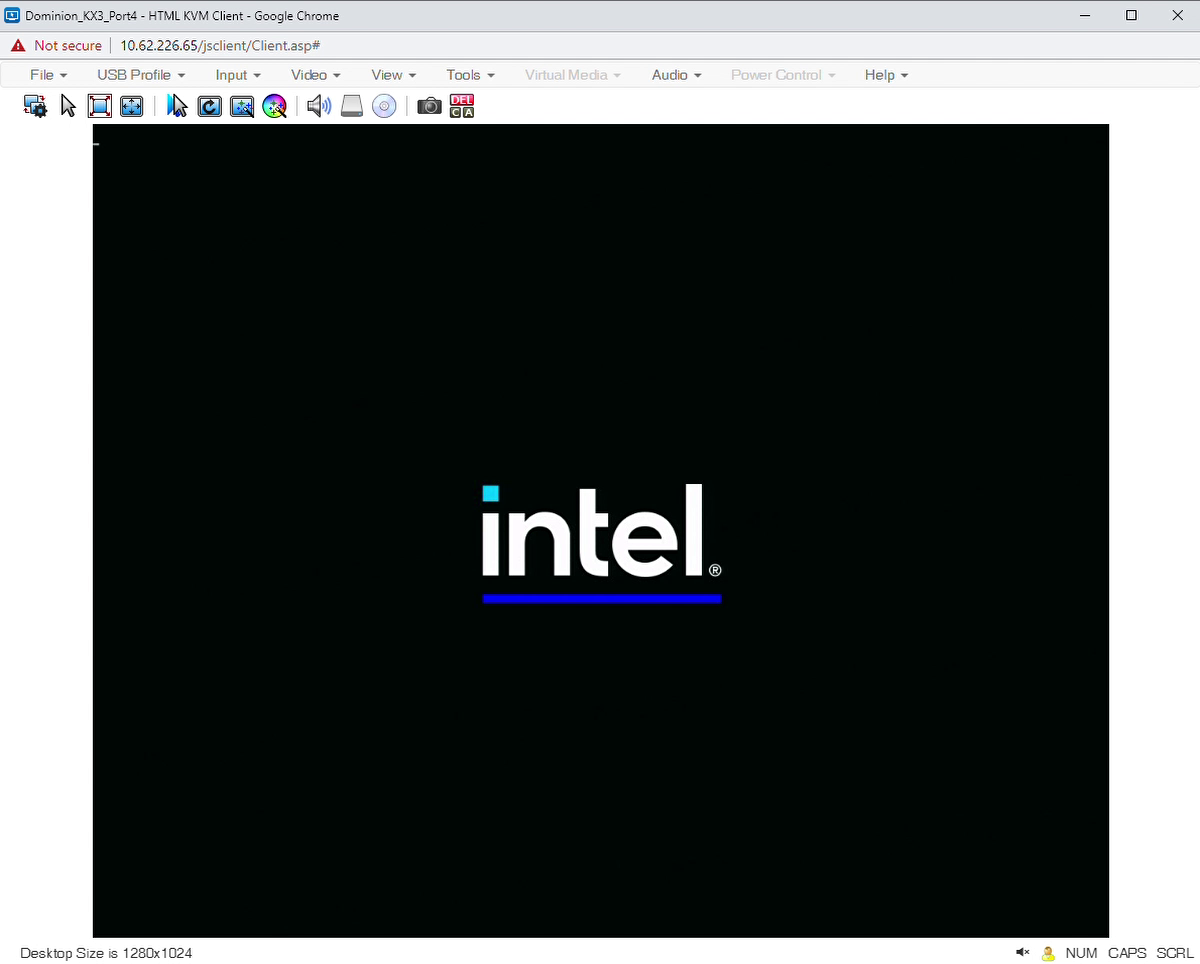

    On the second reboot, the BIOS will apply the capsules. Typically a progress bar appears during this process, as shown in the figure below:

    ../_images/figure_3_tcc_enablement.png

  6. After the target system has fully booted, login again. Verify the system configuration by performing the command below. Select the tab corresponding to your target system.

    $ /usr/share/tcc_tools/scripts/setup_ssram_v1/tcc_setup_ssram.sh enable --verify

    The script verifies whether the TCC Driver is loaded and if the RTCT table, found at /sys/firmware/acpi/tables/PTCT, complies with the pre-defined Software SRAM configuration. If everything is correct, the script will output the following:

    verify
[ENABLED ] Driver
[ENABLED ] Driver auto-load
[VALID   ] Cache configuration (from RTCT)
SYSTEM CONFIGURATION IS CORRECT

  7. Decode the RTCT table and verify that it contains an active Software SRAM configuration by performing the following command:

    $ tcc_cache_info_read | grep -C 8 SoftwareSRAM

    If the pre-defined Software SRAM configuration is active, this command should report three records with Software SRAM buffers:

    {
   "Level": 2,
   "Cache_ID": 2,
   "Base": 1074266112,
   "Size": 262144,
   "Shared": 0,
   "Type": "common.rtct.v2.rtct.SoftwareSRAM"
},
{
   "Level": 2,
   "Cache_ID": 3,
   "Base": 1074528256,
   "Size": 262144,
   "Shared": 0,
   "Type": "common.rtct.v2.rtct.SoftwareSRAM"
},
{
   "Level": 3,
   "Cache_ID": 0,
   "Base": 1074266112,
   "Size": 1048576,
   "Shared": 0,
   "Type": "common.rtct.v2.rtct.SoftwareSRAM"
},

  8. If all verification steps pass then Intel TCC Tools is ready to use. Refer to section Intel TCC Tools - Cache Configurator for information on configuring the system cache to work best with real-time workloads.

Intel TCC Tools - Cache Configurator

In the previous sections, you set up a pre-defined Software SRAM configuration. The pre-configured BIOS capsules with this Software SRAM configuration was deployed into the BIOS sub-regions as described the Intel® TCC Get Started Guide (Complete Target Setup of Software SRAM). The pre-defined Software SRAM configuration consists of three buffers:

  • One buffer located in L3 cache guaranteeing a maximum latency of 49 ns.

  • Two buffers located in L2 cache and guaranteeing a maximum latency of 6 ns.

While this pre-defined Software SRAM configuration represents only an example configuration, you can use the TCC Cache Configurator to create your own Software SRAM configurations and to deploy those onto the target board.

For more information on the working of the TCC Cache Configurator, refer to Cache Configurtor.

The following steps, which provide a practical guide on how to use the cache configurator, correspond to Launch the Cache Configurator of the Intel® TCC Tools 2021.2 Developer Guide.

Prepare Target

Enable the tcc_buffer driver (if it is not enabled already):

$ cd /usr/share/tcc_tools/scripts/setup_ssram/control_tcc_driver.sh

Run TCC Cache Configurator

On the TCC Tools host machine, launch the TCC Cache Configurator. You will need to update the sample environment with the correct values for your Tiger Lake machine.

Follow the steps in TCC Cache Configurator to set up cache configuration for the Tiger Lake system.

Intel TCC Tools - Sanity Checks

Run these sanity checks to make sure that the TCC tool is working.

Sanity Check 1: RT Checker

Intel TCC system hardware RT checker is a tool to make sure that the system is ‘RT READY’.

  1. Run RT checker:

    $ /usr/bin/tcc_rt_checker

    This will compare your current BIOS configuration with the best known configuration. If there is a mismatch, the message “NOT RT READY” will be displayed in red right next to it. You need to go into the BIOS and change the setting to the value provided by the output. After making all changes, rerun the RT checker executable to make sure system is ‘RT READY’.

Sanity Check 2: Verify TCC Drivers and Software SRAM

  1. After configuring TCC (see section Intel TCC Tools - Enabling Drivers and SSRAM(With and Without ACRN)), verify the system configuration by performing the command below. Select the tab corresponding to your target system.

    $ /usr/share/tcc_tools/scripts/setup_ssram_v1/tcc_setup_ssram.sh enable --verify

    The script verifies whether the TCC Driver is loaded and if the RTCT table, found at /sys/firmware/acpi/tables/PTCT, complies with the pre-defined Software SRAM configuration. If everything is correct, the script will output the following:

    verify
[ENABLED ] Driver
[ENABLED ] Driver auto-load
[VALID   ] Cache configuration (from RTCT)
SYSTEM CONFIGURATION IS CORRECT

Troubleshooting

Cache Configuration is INVALID

If the cache configuration is INVALID, it means that the capsules have not been applied to the BIOS sub-regions. In most cases, this occurs if the system does not reboot appropriately and you have to run a power-off/power-on cycle. If the cache configuration is INVALID, repeat the steps listed in Intel TCC Tools - Enabling Drivers and SSRAM(With and Without ACRN).

Only Driver is Disabled

If only the Driver is disabled, run the following command to enable it:

$ cd /usr/share/tcc_tools/scripts/setup_ssram/control_tcc_driver.sh enable

If the above command does not work, run the following command to enable the driver (you need to rerun the command if the system is rebooted):

$ modprobe tcc_buffer

.. code-block:: console

   +-----+------------------+------------------+------------------+--------------+
   | Num |   Checker name   |   Description    |       Note       |    Result    |
   +-----+------------------+------------------+------------------+--------------+
   |  1  | Hypervisor       | Checks that the  | Hypervisor is on |      NA      |
   |     | detection        | system was run   |                  |              |
   |     |                  | from hypervisor  |                  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  2  | RTCM Checker     | Checks that RTCM | Can't check      |    FAILED    |
   |     |                  | is enabled       | current boot     |              |
   +-----+------------------+------------------+------------------+--------------+
   |  3  | Real-time        | Checks that      | Real-time        |      NA      |
   |     | configuration    | Real-time        | configuration    |              |
   |     | driver Checker   | configuration    | driver does not  |              |
   |     |                  | driver exists    | exist            |              |
   +-----+------------------+------------------+------------------+--------------+
   |  4  | RT Kernel        | Checks that RT   | Current kernel   |   RT_READY   |
   |     | Checker          | kernel is used   | is RT            |              |
   +-----+------------------+------------------+------------------+--------------+
   |  5  | GT CLOS Checker  | Checks that GPU  | Failed to check  |    FAILED    |
   |     |                  | doesn't overlap  | GT CLOS due to   |              |
   |     |                  | with dedicated   | There is no      |              |
   |     |                  | L3 CPU CLOS      | corresponding    |              |
   |     |                  |                  | SSRAM_WayMask    |              |
   |     |                  |                  | entry for SSRAM  |              |
   |     |                  |                  | SoftwareSRAM(Lev |              |
   |     |                  |                  | el=2,            |              |
   |     |                  |                  | Cache_ID=0,      |              |
   |     |                  |                  | Base=2130706432, |              |
   |     |                  |                  | Size=131072,     |              |
   |     |                  |                  | Shared=0, Type=' |              |
   |     |                  |                  | common.rtct.v2.r |              |
   |     |                  |                  | tct.SoftwareSRAM |              |
   |     |                  |                  | ')               |              |
   +-----+------------------+------------------+------------------+--------------+
   |  6  | Linux Kernel's   | Checks that all  | Cmdline          | NON_RT_READY |
   |     | command-line     | kernel's         | parameters that  |              |
   |     | parameters       | command-line par | are missing:art= |              |
   |     | Checker          | ametersrequired  | virtallow        |              |
   |     |                  | for real-time    | idle=poll rcupda |              |
   |     |                  | workload are set | te.rcu_cpu_stall |              |
   |     |                  |                  | _suppress=1      |              |
   |     |                  |                  | mce=off          |              |
   |     |                  |                  | hpet=disable num |              |
   |     |                  |                  | a_balancing=disa |              |
   |     |                  |                  | ble              |              |
   |     |                  |                  | igb.blacklist=no |              |
   |     |                  |                  | efi=runtime      |              |
   |     |                  |                  | hugepages=1024 i |              |
   |     |                  |                  | 915.force_probe= |              |
   |     |                  |                  | * i915.enable_rc |              |
   |     |                  |                  | 6=0              |              |
   |     |                  |                  | i915.enable_dc=0 |              |
   |     |                  |                  | i915.disable_pow |              |
   |     |                  |                  | er_well=0        |              |
   |     |                  |                  | rcu_nocb_poll    |              |
   |     |                  |                  | isolcpus=<list>  |              |
   |     |                  |                  | rcu_nocbs=<list> |              |
   +-----+------------------+------------------+------------------+--------------+

   Real-time BIOS capabilities checkers:

   +-----+------------------+------------------+------------------+--------------+
   | Num |   Checker name   |   Description    |       Note       |    Result    |
   +-----+------------------+------------------+------------------+--------------+
   |  1  | Enhanced Intel   | Checks that      | Enhanced Intel   |   RT_READY   |
   |     | SpeedStep(R)     | Enhanced Intel   | SpeedStep(R)     |              |
   |     | Technology       | SpeedStep(R)     | Technology is    |              |
   |     |                  | Technology is    | disabled         |              |
   |     |                  | disabled         |                  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  2  | Intel(R) Speed   | Check that       | Intel(R) Speed   |   RT_READY   |
   |     | Shift Technology | Intel(R) Speed   | Shift Technology |              |
   |     |                  | Shift Technology | is disabled      |              |
   |     |                  | is disabled      |                  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  3  | Low Power S0     | Check that Low   | Error in ACPI    |    FAILED    |
   |     | Idle Capability  | Power S0 Idle is | table reading    |              |
   |     |                  | disabled         |                  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  4  | CPU PCI Express  | Check that CPU   |                  |   RT_READY   |
   |     | ASPM             | PCI Express ASPM |                  |              |
   |     |                  | is disabled      |                  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  5  | Intel(R) Hyper-  | Checks that      | Intel(R)         |   RT_READY   |
   |     | Threading        | Intel(R)         | Hyperthreading   |              |
   |     | Technology       | Hyperthreading   | Technology is    |              |
   |     |                  | Technology is    | disabled         |              |
   |     |                  | disabled         |                  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  6  | Cache Allocation | Checks that      | Cache Allocation | NON_RT_READY |
   |     | Technology       | Cache Allocation | Technology (CAT) |              |
   |     |                  | Technology is    | is not supported |              |
   |     |                  | enabled          |                  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  7  | Cache Allocation | Checks that CAT  | L3 CAT is        |   RT_READY   |
   |     | Technology       | capabilities are | unsupported. L2  |              |
   |     | capabilities     | enabled          | CAT is           |              |
   |     |                  |                  | unsupported.     |              |
   |     |                  |                  | Memory Bandwidth |              |
   |     |                  |                  | Allocation (MBA) |              |
   |     |                  |                  | is unsupported.  |              |
   +-----+------------------+------------------+------------------+--------------+
   |  8  | #AC Split Lock   | When enabled,    | #AC Split Lock   |   RT_READY   |
   |     |                  | generates an     | is disabled      |              |
   |     |                  | Alignment Check  |                  |              |
   |     |                  | Exception when   |                  |              |
   |     |                  | an application   |                  |              |
   |     |                  | attempts to      |                  |              |
   |     |                  | issue a split    |                  |              |
   |     |                  | lock because a   |                  |              |
   |     |                  | split lock       |                  |              |
   |     |                  | increases        |                  |              |
   |     |                  | latency.         |                  |              |
   +-----+------------------+------------------+------------------+--------------+
