Set Windriver® VxWorks® 7 RTH privileged-mode (pos-vx)¶

A rts-buster image can extend Real-Time Hypervisor (RTH) commercial-license to boot Windriver® VxWorks® 7 SR0620 (IA 32-bits or 64-bits) ramdisk image .

Preconditions RTH Windriver® VxWorks®¶

Windriver® VxWorks® 7 commercial runtime components:

Windriver® VxWorks® Workbench
- Windriver® VxWorks® version 6.9 or 7
- BSP for Intel architecture
- user-generated built VxWorks Image ()
Windriver® VxWorks® 7 IA 64-bit BSP binary Stitch RTH blobs as ramdisk image vxWorks_x86_64_096 into /boot/rth/pos-vx folder
Hypervisor binary (rthx86)
Hypervisor license file (license.txt) for Windriver® VxWorks®
grub entries template /etc/grub.d/45-rth-pos-vx-linux file.
pos-vx Hypervisor Configuration File (/boot/rth/pos-vx/Linux_VxWorks64.txt or /boot/rth/pos-vx/WindowsEFI_VxWorks64.txt) to set specific Privileged-mode RTH boot options

booting Debian GNU/Linux LXDE Desktop GPOS w/ Windriver® VxWorks®¶

Out-of-box installed rts-buster image make generic assumptions about the desired Debian GNU/Linux LXDE desktop default Grub menu.

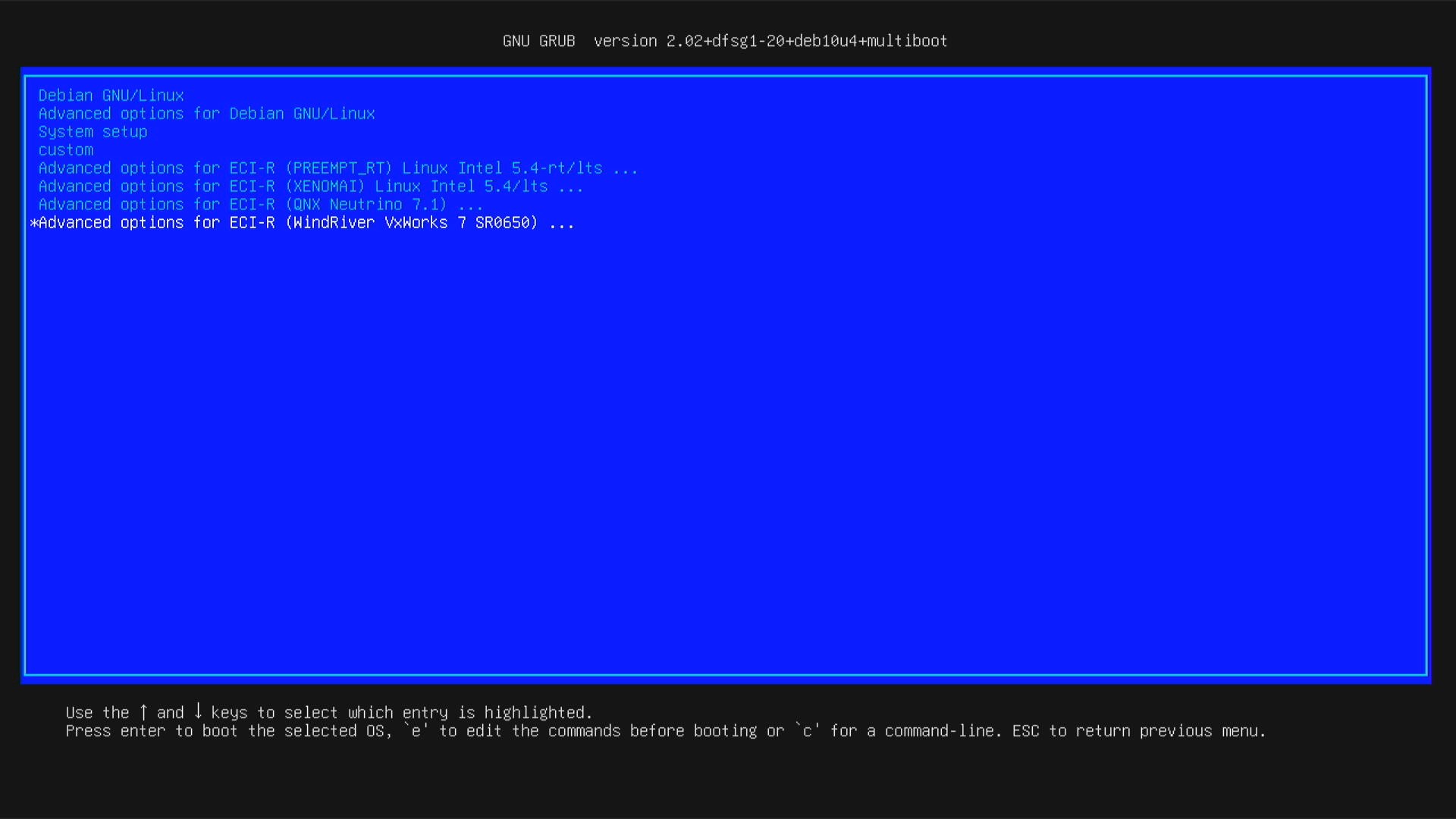

Select a desired RTH pre-canned GPOS + POS configurations Advanced options for ECI-R ...:

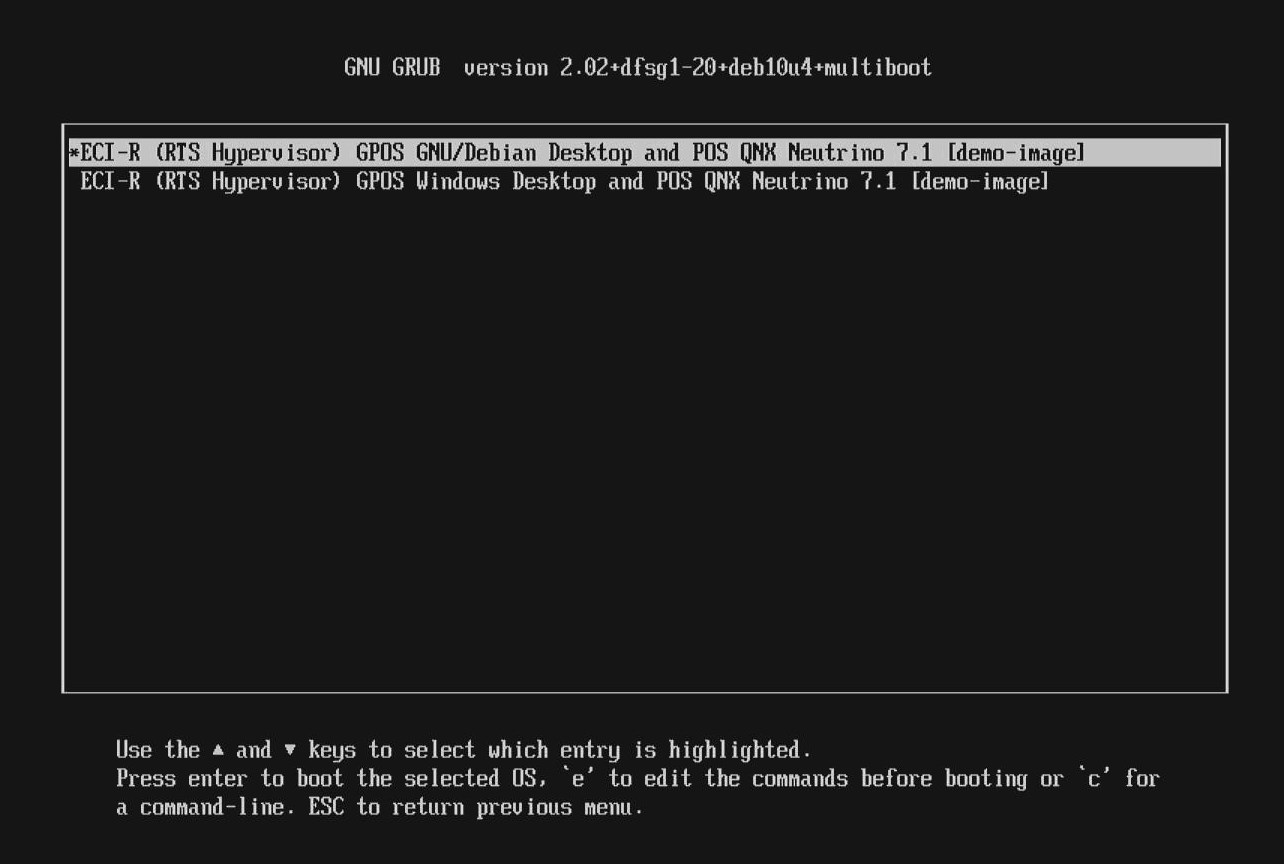

Select subsequent grub multiboot configuration ECI-R (RTS Hypervisor) GPOS GNU/Debian Desktop and POS VxWorks 7 SR0650

Successfully RTH boot log are displayed

Successfully GPOS kernel boot log are displayed

Enter Login in LXDE Lightdm UI menu eci-user (passwd=eci-user) or as root

using Debian pos-vx package update¶

rts-buster provide the build environment for ECI-R to create and maintain pos-vx Debian packaging and runtime dependencies.

$ dpkg -c rth-pos-vx_5.4.01.27752_amd64.deb
drwxr-xr-x root/root         0 2021-09-21 08:17 ./
drwxr-xr-x root/root         0 2021-09-17 17:11 ./boot/
drwxr-xr-x root/root         0 2021-09-17 17:11 ./boot/rth/
drwxr-xr-x root/root         0 2021-09-17 17:11 ./boot/rth/pos-vx/
-rw-r--r-- root/root      2843 2021-09-21 08:17 ./boot/rth/pos-vx/Linux_VxWorks64.txt
-rw-r--r-- root/root      2688 2021-09-21 08:17 ./boot/rth/pos-vx/WindowsEFI_VxWorks64.txt
-rw-r--r-- root/root   5373452 2021-09-21 08:17 ./boot/rth/pos-vx/vxWorks_x86_64
drwxr-xr-x root/root         0 2021-09-21 08:17 ./etc/
drwxr-xr-x root/root         0 2021-09-21 08:17 ./etc/grub.d/
-rwxr-xr-x root/root      1254 2021-09-21 08:17 ./etc/grub.d/45-rth-pos-vx-linux
drwxr-xr-x root/root         0 2021-09-21 08:17 ./root/
-rwxr-xr-x root/root        29 2021-09-21 08:17 ./root/hello-rth-pos-vx.sh
drwxr-xr-x root/root         0 2021-09-21 08:17 ./usr/
drwxr-xr-x root/root         0 2021-09-21 08:17 ./usr/share/
drwxr-xr-x root/root         0 2021-09-21 08:17 ./usr/share/doc/
drwxr-xr-x root/root         0 2021-09-21 08:17 ./usr/share/doc/rth-pos-vx/
-rw-r--r-- root/root       128 2021-09-21 08:17 ./usr/share/doc/rth-pos-vx/changelog.gz

When Default Debian GNU/Linux LXDE Desktop GPOS is used upgrading your Windriver® VxWorks® RTH privileged-mode pos-vx images can be done as followed :

$ dpkg -i rth-pos-vx_5.4.01.27752_amd64.deb
(Reading database ... 51507 files and directories currently installed.)
Preparing to unpack rth-pos-vx_5.4.01.27752_amd64.deb ...
Unpacking rth-pos-vx (5.4.01.27752) over (5.4.01.27752) ...
Setting up rth-pos-vx (5.4.01.27752) ...
Generating grub configuration file ...
Found linux image: /boot/vmlinuz-5.4.115-intel-pk-standard+
Found initrd image: /boot/initrd.img-5.4.115-intel-pk-standard+
done

Edit pos-vx RTH settings manually¶

Edit /etc/grub.d/45-rth-pos-vx-linux and add the new boot menu entry like this:

$ vi /etc/grub.d/45-rth-pos-vx-linux
...
menuentry "ECI-R (RTS Hypervisor) GPOS GNU/Debian Desktop and POS QNX Neutrino 7.1 [demo-image]" {
    search --no-floppy --fs-uuid --set=root ae1a66a5-ee9c-4573-9249-dd207ffa6248
    multiboot2 /boot/rth/rthx86
    module2 /boot/rth/license.txt
    module2 /boot/rth/pos-qn/Linux_QNX64.txt
    echo "Loading POS multi-boot QNX Neutrino bootable [RAMFS] images..."
    module2 /boot/rth/pos-qn/pcrth_x86_64.ifs pcrth_096_x86_64.ifs
    echo "Loading [ROOTFS] GPOS GNU/Debian Desktop bootable images ..."
    module2 /vmlinuz vmlinuz.lnk
    module2 /initrd.img initramfs.lnk
}

Edit ECI-R template RTH configuration file /boot/rth/pos-vx/Linux_VxWorks64.txt or /boot/rth/pos-vx/WindowsEFI_VxWorks64.txt should look similar to the following reference.

# RTH CONFIG
################################################################################
# System
#
[/SYSTEM]
    "IOMMU"          = uint32: 0    # set to 1 to restrict device memory access
    "security_level" = uint32: 0    # set to 1 to restrict API permissions
    "GPU_resource_partitioning" = uint32: 1     # set to 1 to optimize
                                                # CPU resource usage
################################################################################
# OS
#
[/OS/0]

    "name"          = "GPOS"
    "boot_priority" = uint32: 2     # start after VxWorks
    "virtualized"   = uint32: 1
    "cores_percent" = uint32: 50    # assign half of the CPUs

    "trace_partition_number" = uint32: 0    # write log to /SHM/0

    [/OS/0/RUNTIME/0]

        "bootline" = "ro root=LABEL=/ debug=all verbose=all console=tty0 console=ttyS0,115200n8 ip=192.168.2.1:::::vnet0"
        "image_0"  = "vmlinuz.lnk"
        "image_1"  = "initramfs.lnk"

[/OS/1]


    "name"          = "VxWorks"
    "boot_priority" = uint32: 3             # start third
    "memory_size"   = uint64: 0x08000000    # 128 MB
    "virtual_MMU"   = uint32: 1             # set to 0 to disable restricted memory access
    "restricted_IO" = uint32: 0             # set to 1 to restrict I/O access
    "L3_cache_1_segments" = bytelist: 4,5,6

    "trace_partition_number" = uint32: 2    # write log to /SHM/2
    "CPU"           = bytelist: 4         # e.g. single CPU: bytelist: 4

    [/OS/2/RUNTIME/0]

        "bootline" = "vnet(0,0) e=192.168.2.3"
        "image_0"  = "vxWorks_x86_64_096"

[/IRQ]

    "default" = uint32: 0   # default is GPOS

################################################################################
# PCI
#
[/PCI]
    "default" = uint32: 0   # default is GPOS

    "auto_interrupt_mode" = uint32: 1   # automatically use MSI to avoid conflicts

# i225 Device assignment with vendor ID / device ID and MSI Mode
[/PCI/0]
    "OS"         = uint32: 1
    "vendor_ID"  = uint32: 0x8086
    "device_ID"  = uint32: 0x15f2
    "interrupt_mode" = uint32: 2

# i210 Device assignment with vendor ID / device ID and MSI Mode to Yocto linux-rt
[/PCI/1]
    "OS"         = uint32: 1
    "vendor_ID"  = uint32: 0x8086
    "device_ID"  = uint32: 0x1533
    "interrupt_mode" = uint32: 2

# mGBE Device assignment with vendor ID / device ID and MSI Mode (not supoported yet by VxWorks BSP)

################################################################################
# Shared Memory
#

[/SHM/0]

    "name" = "trace_0"
    "size" = uint64: 0xF000

[/SHM/1]

    "name" = "trace_vxworks"
    "size" = uint64: 0x4000

Reboot with rth -sysreboot && reboot commands
